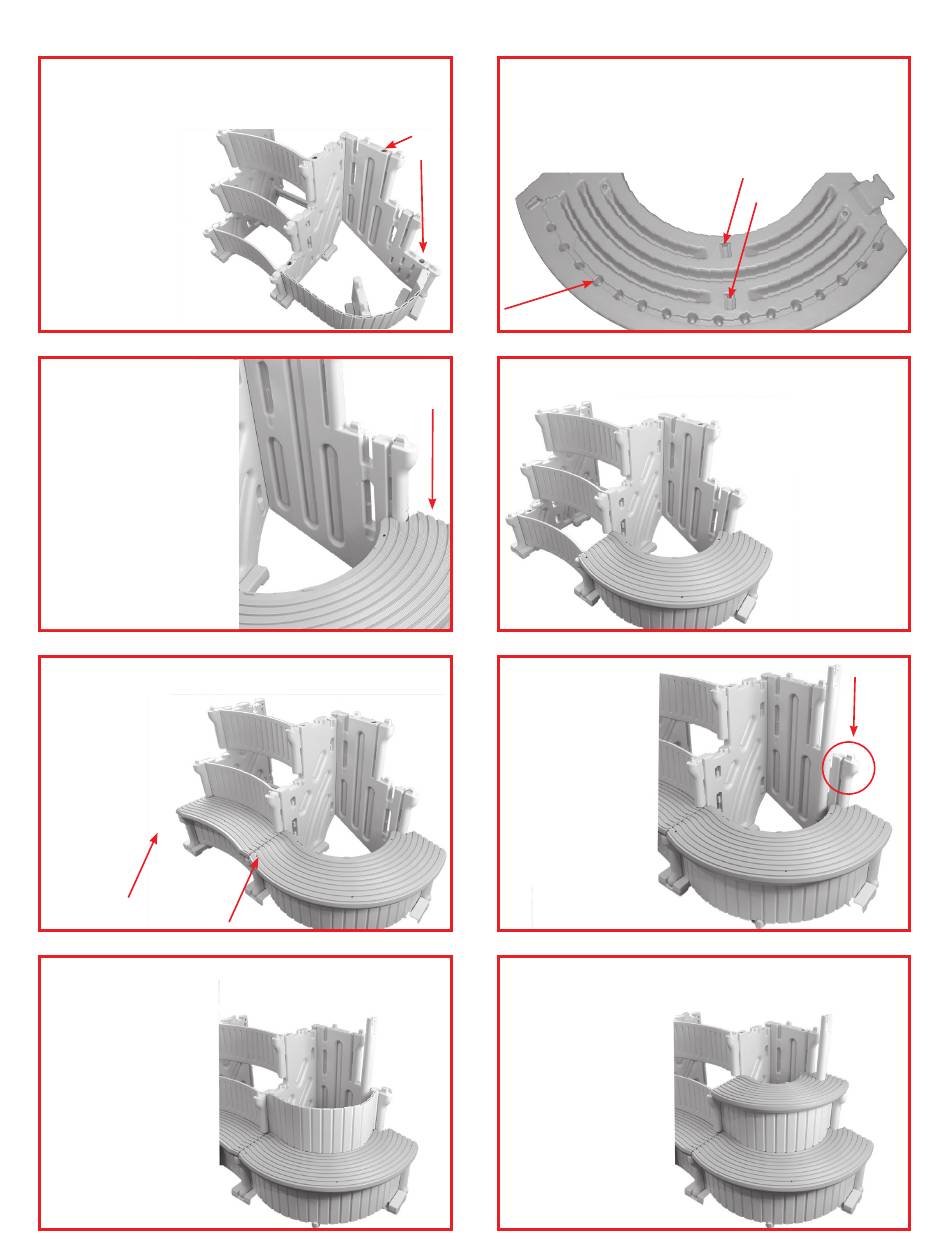

CONFER CURVE STEP ADD-ON INSTRUCTIONS (Cont'd.)
At this time add 30 lbs of sand through
Step 25
the two fill holes located on the add-on
panel. Using a funnel fill the lower hole
completely to the top with sand. Shake the panel
to help settle
the sand. Lower
hole must be
completely filled.
Using the provided
caps plug both the
lower and upper
fill hole.
Step 27
It will be easier to start from
the add-on panel side and
work towards the base step.
Start by placing the large
curved tread in approximate
position over the panels and
flex riser. Next align the tabs
on the add-on panel with the
openings on the bottom side
of large curved tread. Lock
the tread down by striking
top of tread directly over the
tabs with rubber mallet.
Step 29
Install the first tread [I] onto the base
step by placing over the tabs on the
side
panels [A] as shown.
While holding the
tread down, tap
inward with a
rubber mallet until
locked in place.
Step 31
Insert the tab located
on the end of flex
riser into the opening
on side panel [A].
Riser will rest on
the top back of
tread below.
6
Next, install the medium flex riser [P]
by sliding down into the slot located
on the add-on panel [J].
Step 26
The next step will require an extra set of hands to help
align the large flex riser [M] and the tread support [N]
Fill
into the groove and the openings located on the bottom
Holes
side of the large curved tread [O].
Step 28
Step 30
Install the short
handrail post [K]
into the lower
opening on the
add-on panel
[J] marked with
#3 next to it.
Push the tab on
the post all the
way in; then tap
down to lock in
place.
Step 32
panel [J].
Move the riser in or
out until it slips up
into the groove on
the bottom of the
tread, using a
rubber mallet strike
the top of the tread
until locked
onto tabs.
Position the other end of the tread over
side panel [A]. Move the large flex riser [M]
in or out until it slips up into the groove
located on the bottom of
the large curved tread [O].
It will also be necessary
to align the tabs on the
tread support [N] with
the two openings on
the bottom of the large
curved tread.
Once everything
is in position tap
down on the large
tread to lock onto
panel [A].
Place the medium curved tread [Q]
over the short handrail post and down
on to the tabs located on the add-on
