VITROCERAMIC
SMOOTH TOP HOBS
2
Introduction.
2
Unpacking.
2
Know your product.
2
Cupboard design.
3
Aperture sizes.
4
Installation.
5
Safety installation for hobs with a
control panel.
6
Electrical installation.
6
The controls.
7
Vitroceramic smooth top.
8
Technical specifications.
9
Safety advice.
9
Problem check.
9
Owner's responsibility.
10 Branches.
11 Warranty.
12 Purchase details to be filled in.
PAGE 1 OF 12
Part number: 067912
Cooking
Instruction manual
Advertisement
Table of Contents
Related Manuals for Defy VITROCERAMIC Series
Summary of Contents for Defy VITROCERAMIC Series
- Page 1 VITROCERAMIC SMOOTH TOP HOBS Introduction. Unpacking. Know your product. Cupboard design. Aperture sizes. Installation. Safety installation for hobs with a control panel. Electrical installation. The controls. Vitroceramic smooth top. Technical specifications. Safety advice. Problem check. Owner’s responsibility. 10 Branches. 11 Warranty. 12 Purchase details to be filled in.
-
Page 2: Know Your Product
Hobs with control panels may be used on their own or with an eye –level oven. Hobs without control panels may only be used when connected to a Defy under - counter oven. The hob controls in this instance, are located on the oven fascia. - Page 3 Aperture sizes Gemini models WITH A CONTROL PANEL WITHOUT A CONTROL PANEL Slimline models WITH A CONTROL PANEL WITHOUT A CONTROL PANEL PAGE 3 OF 12...
-
Page 4: Installation
Installation Installation is the buyer’s responsibility. The manufacturer accepts no liability for this service. Any action that the manufacturer has to take as a result of an erroneous installation will not be covered by the warranty. The hob is supplied with securing clips. These fit into dedicated slots around the hob base . - Page 5 VERY IMPORTANT SAFETY INSTRUCTION Safety installation for hobs with control panels only A removable horizontal board must be fitted below the hob and 75mm away from the worktop bottom face. Space between this board and the hob must be empty and no objects may be stored or kept there.
-
Page 6: Electrical Installation
Electrical installation This appliance must be earthed and the manufacturer and the seller do not accept responsibility for any damage due to incorrect installation or electrical connection. Hobs with control panels Earth leakage This hob should not be connected through an earth leakage system. Refer to S.A.N.S. - Page 7 Clean the hob with a nylon pad and a suitable smooth top cleaning solution, which is available from all Defy Service Centres. Remove calcium stains (yellow stains) by applying a small amount of lime remover such as vinegar or lemon juice. Other suitable commercially available products can also be used.
-
Page 8: Technical Specifications
Technical Specifications Model GEMINI SLIMLINE VITROCERAMIC VITROCERAMIC HOB 230V –250V 50Hz~ 230V –250V 50Hz~ Volts Amperes Plate power rating (W) Large plate front 2100 2100 (2200-750 dual) Small plate front 1200 1200 Small plate back 1200 1200 Large plate back 2100 2100 For hobs with control... -
Page 9: Safety Advice
Safety advice This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 10 P.O. Box 33681 50 Monument Road Lusaka, 10101, Zambia Oranjesig Tel: +260 0211 242332/3 Bloemfontein Fax: +260 0211 242933 Bloemfontein.Service@defy.co.za sgiservicecentre@microlink.zm CAPE TOWN NAMIBIA: ATLANTIC DISTRIBUTORS (PTY) 5A Marconi Rd. Montague Gardens, 7441 CapeTown.Service@defy.co.za 10 Tienie Louw Street, Northern Industrial Area P.O.
-
Page 11: Warranty
Warranty This certificate is issued by DEFY APPLIANCES (PTY) LTD manufacturers of Defy and Ocean products, hereinafter the Company, to the original purchaser only, of the appliance described on the certificate and shall constitute the only warranty given in respect of this appliance. - Page 12 For future reference, record the listed information in the space below. The Serial number may be found on the label attached to the hob base. Serial No: Date of purchase: Purchased from: PAGE 12 OF 12...
Need help?
Do you have a question about the VITROCERAMIC Series and is the answer not in the manual?
Questions and answers

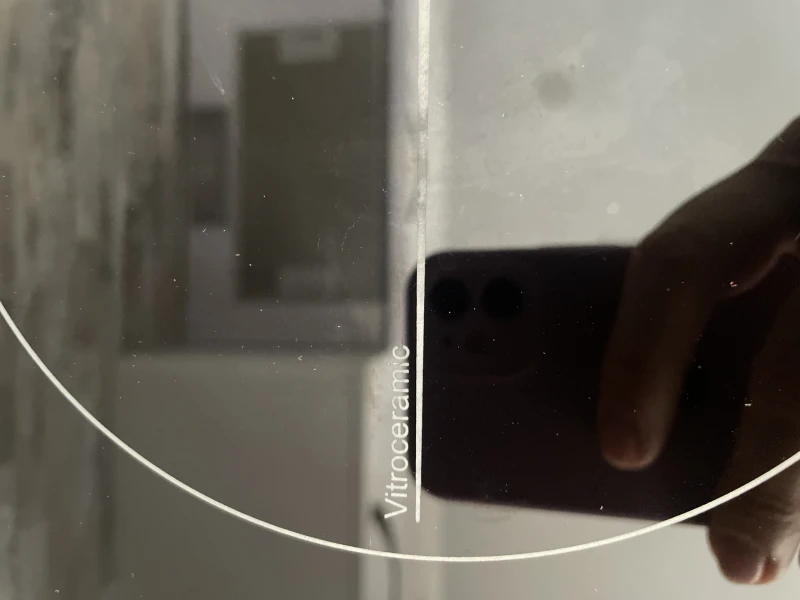

Здравствуйте! Готовила суп на плите, плита самопроизвольно выключалась и больше не включается. Что это может быть?
