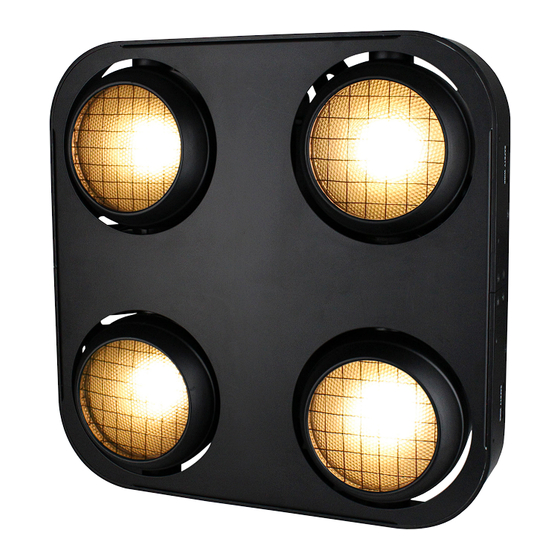

- Page 1 Fury 400 DTW 4 Cell Blinder User Manual Order codes: ELUM431...
-
Page 2: Safety Advice
Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Fury 400 DTW 4 Cell Blinder User Manual... - Page 3 Each cell features an RGB backlight creating a truly versatile series, ideal for rental and installation, backed up with the eLumen8 2 year warranty. • 4 x 90W amber and warm white COB LEDs (1800K/3200K) •...
-
Page 4: Technical Specifications
Technical specifications Fury 400 DTW Blinder www.prolight.co.uk POWER CONSUMPTION: 395W 01 - OLED display In the box: 1 x fixture, 02 - Function buttons 05 - PowerCON TRUE1 input 1 x power cable 03 - IP rated 5-Pin DMX input 06 - PowerCON TRUE1 output &... -
Page 5: Installation
The installation should be checked annually by a qualified person. The eLumen8 Fury 400 can be operated in a number of mounting positions as shown in the diagram above, hanging upside-down from the ceiling or truss, mounting sideways on truss or stood upright on a flat level surface. - Page 6 2. Mount the fixture onto your truss system via the clamps and tighten to ensure secure. 3. Pull the safety cable through the safety cable holes located on the metal base plate on the underside of the fixture and around the truss. www.prolight.co.uk Fury 400 DTW 4 Cell Blinder User Manual...
-
Page 7: Operating Instructions
“DOWN” buttons to select option/value required. Once the option/value has been selected press the “SET” button once more to confirm the setting. To exit out of any of the above options, press and hold the “MENU” button. MODE DOWN www.prolight.co.uk Fury 400 DTW 4 Cell Blinder User Manual... - Page 8 Now use the “UP” and “DOWN” buttons to highlight “3) Strobe”. Press the “SET” button and use the “UP” and “DOWN” buttons to select the strobe speed required between 00-99. Press the “SET” button to confirm the setting. www.prolight.co.uk Fury 400 DTW 4 Cell Blinder User Manual...
- Page 9 Slave display. Press the “SET” button and use the “UP” and “DOWN” buttons to select between “Yes” and “No”. Press the “SET” button to enter slave mode when yes is selected. www.prolight.co.uk Fury 400 DTW 4 Cell Blinder User Manual...
- Page 10 Amber 3 6) Amber 3 White 4 7) White 4 Amber 4 8) Amber 4 R Ring 9) R Ring G Ring 10) G Ring B Ring 11) B Ring Default www.prolight.co.uk Fury 400 DTW 4 Cell Blinder User Manual...
- Page 11 “UP” and “DOWN” buttons to select “2) Dimmer Speed”. Press the “SET” button and use the “UP” and “DOWN” buttons to select between “Fast” (LED) or “Smooth” (Halogen). Press the “SET” button to confirm the setting. www.prolight.co.uk Fury 400 DTW 4 Cell Blinder User Manual...
- Page 12 “On” and “Off”. Press the “SET” button to enable Display Lock when yes is selected. Please note: After 30 seconds of inactivity the display will lock. To unlock the menu hold the “MODE” and “SET” buttons for 3 seconds. www.prolight.co.uk Fury 400 DTW 4 Cell Blinder User Manual...
-
Page 13: Fixture Information
To display the fixture information, press the “MODE” button until “8: Information” is highlighted on the OLED display. Press the “SET” button and the fixtures version, each pods temperature and RDM ID will be displayed. www.prolight.co.uk Fury 400 DTW 4 Cell Blinder User Manual... - Page 14 Function 0-100% Pod 1 Halogen dimmer Blue backlight dimmer 000-255 000-255 0-100% 0-100% Pod 2 Halogen dimmer 000-255 0-100% Pod 3 Halogen dimmer 000-255 0-100% Pod 4 Halogen dimmer 000-255 0-100% www.prolight.co.uk Fury 400 DTW 4 Cell Blinder User Manual...
- Page 15 Pod 4 green backlight dimmer CH17 000-255 Pod 4 green backlight dimmer 0-100% CH19 000-255 0-100% Pod 4 blue backlight dimmer CH18 000-255 Pod 4 blue backlight dimmer 0-100% CH20 000-255 0-100% www.prolight.co.uk Fury 400 DTW 4 Cell Blinder User Manual...
- Page 16 Pod 3 blue backlight dimmer CH20 000-255 0-100% Pod 4 red backlight dimmer CH21 000-255 0-100% Pod 4 green backlight dimmer CH22 000-255 0-100% Pod 4 blue backlight dimmer CH23 000-255 0-100% www.prolight.co.uk Fury 400 DTW 4 Cell Blinder User Manual...
- Page 17 CH20 000-255 0-100% 060-070 Program 6 Pod 2 blue backlight dimmer 071-081 Program 7 CH21 000-255 0-100% 082-092 Program 8 Pod 3 red backlight dimmer CH22 000-255 093-103 Program 9 0-100% www.prolight.co.uk Fury 400 DTW 4 Cell Blinder User Manual...
- Page 18 Pod 3 blue backlight dimmer CH24 000-255 0-100% Pod 4 red backlight dimmer CH25 000-255 0-100% Pod 4 green backlight dimmer CH26 000-255 0-100% Pod 4 blue backlight dimmer CH27 000-255 0-100% www.prolight.co.uk Fury 400 DTW 4 Cell Blinder User Manual...
-
Page 19: Dmx Setup
This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit requires either a standard 3-pin or 5-pin XLR connector for data input/output, see images below. Further DMX cables can be purchased from all good sound and lighting suppliers or Prolight Concepts dealers. Please quote: 3-Pin: CABL10 –... -
Page 20: Line Termination
3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Fury 400 DTW 4 Cell Blinder User Manual... - Page 21 Fixtures fitted with lamps often require 2/3 times more current on startup, these may require their own power source. Fury 400 DTW Blinder Fury 400 DTW Blinder www.prolight.co.uk www.prolight.co.uk POWER CONSUMPTION: 395W POWER CONSUMPTION: 395W www.prolight.co.uk...
-
Page 22: Weee Notice
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Fury 400 DTW 4 Cell Blinder User Manual... - Page 23 Fury 400 DTW 4 Cell Blinder User Manual...
- Page 24 Fury 400 DTW 4 Cell Blinder User Manual...
