FrSky ACCESS G-RX6 Instruction Manual

Instruction Manual for FrSky ACCESS G-RX6
Introduction

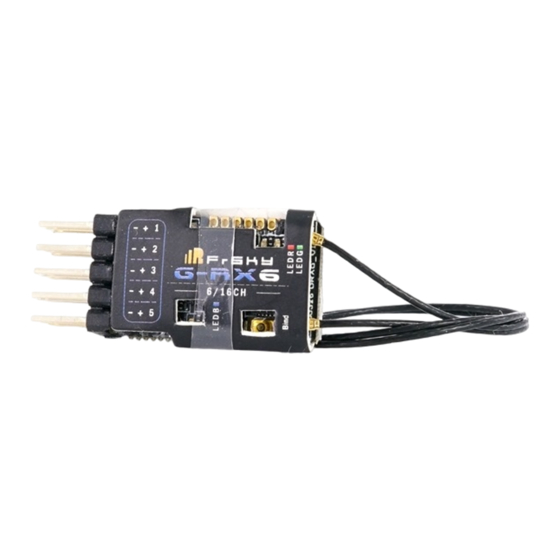

Thank you for purchasing FrSky G-RX6 6/24CH telemetry receiver. Especially designed for gliders, G-RX6 is ultra
small and super light. FrSky builds a variometer sensor right into G-RX6, so telemetry data like altitude and vertical
speed can be obtained. G-RX6 features 6 PWM output with higher precision and lower latency. The latency of the
PWM output is 9ms less than that of X series receivers under high speed mode. G-RX6 also supports redundancy
function, so it can be used in conjunction with another receiver. The G-RX6 and the whole RX-line has a 40%
increased operating range compared to the previous X series receivers. In order to fully enjoy the benefits of this
system, please read the instruction manual carefully and set up the device as described below.

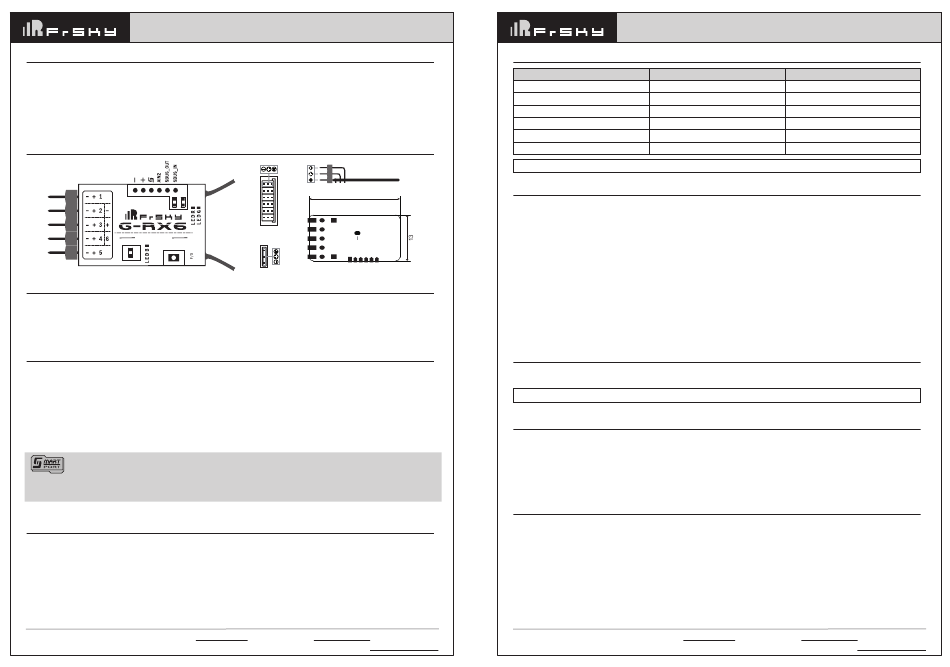

Overview
6 / 2 4 C H
What's New
● CH1~CH6 outputs high precision PWM signal (Precision: less than 0.5μs)
● Under the same conditions, the effective communication distance of G-RX6 is about 1.4 times than that of X
series receivers.
● Installed with ACCESS protocol
Specifications
● Dimension: 21*13*7.3mm (L × W × H)
● Weight: 2.2g / 2.6g (with two antennas)
● Number of Channels: 24CH
● Operating Voltage Range: 3.5V~10V
● Operating Current: 100mA@5V
● Operating Range: >2km
● Compatibility: ACCESS
● Servo frame rate: 9ms (HS--High Speed Mode) / 18ms (FS--Normal Speed Mode)
Smart Port (S. Port) is a signal wire full duplex digital transmission interface developed by FrSky Electronic Co., Ltd. All
products enabled with Smart Port (including XJT module, XSR,X6R and X8R receiver, new hub-less sensors, new Smart Dashboard,
etc), serial port user data and other user input/output devices can be connected without limitations for numbers or sequences at a high
transmission speed.
Feature
● Small and High sensitivity (40% increase of range compared to previous X series receivers)
● Integrated with high precision variometer sensor
● Higher precision and Low latency PWM output
● Lower power consumption
● Redundancy function supported
● Smart Port enabled and telemetry data transmission supported
● Battery voltage detection supported
● 2 detachable IPEX 4 connector antennas
● PCB protection with the comformal coating craftwork
FrSky Electronic Co., Ltd www.frsky-rc.com
Add:F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
21
Left
Inverted S.Port signal
BOT
BOT
Contact us : frsky@frsky-rc.com
Instruction Manual for FrSky ACCESS G-RX6
LED state
Green LED
On
Flash
Flash
On
On
Off
Note: LED Blue is only for Variometer indication.
Registration & Automatic binding (Smart Match )
With the FrSky ACCESS protocol, the transmitter/transmitter module can bind receiver without using the "F/S"
button.
Follow the step below to finish the Registration & binding procedure:
1. Put the transmitter/transmitter module into [Reg] status.
1.1 For Taranis X-Lite Pro as an example, turn on the transmitter, go to the MENU-MODEL SETUP-PAGE 2,
choose Internal or Extermal RF, and select [Reg].
2. Connect the battery to the receiver while holding the F/S button on the receiver. The RED LED and GREEN LED
on the receiver will be on, indicating into the [Reg] status. Select [ENTER] on the transmitter, The RED LED and
GREEN LED will flash, and the transmitter displays [Registration ok].
3. Turn off the receiver.
4. Move the cursor to select the receiver 1 [Bind].
5. Connect the battery to the receiver, the GREEN LED will flash, indicating into the [Bind] status. Select the RX, the
GREEN will keep lit, and the transmitter displays [Bind successful].
6. The transmitter exit [Bind], GREEN LED will keep lit, RED LED will be off, indicating Working normally.
How to Switch FS mode/HS mode
a) The factory default setting is FS mode.
b) To go to the receiver [Options], select the 9 ms PWM or not.
Note: The SBUS output is 9ms, no matter HS/FS mode.
How to Disable/Enable Variometer function
a) The factory default setting is "enabled".
b) In case you want to disable variometer function and switch to normal operation mode, hold the F/S button for
about 5 seconds, the BLUE LED will flash 3 times, indicating the switch was successful and the function will be
disabled. (If you want to enable the function, just repeat the steps above).
c) If Blue LED is on, the function is enabled.
If Blue LED is off, the function is disabled.
Range Check
A pre-flight range check should be done before each flying session. Reflections from nearby metal fences, concrete
buildings or trees can cause loss of signal both during range check and during the flight. Under Range Check Mode,
the RF power would be decreased and Range distance to 1/30 --1/10 that of Normal Model, about 30 meters.
1. Place the model at least 60cm (two feet) above non-metal contaminated ground (e.g on a wooden bench). The
receiver's antenna should be in vertical position.
2. For Taranis X-Lite Pro as an example, turn on the transmitter and power on the receiver, go to: MODEL
SETUP/Internal RF/Range.
3. For transmitter RF module, please refer to its manual.
Much more operation and instruction please refer to radio manual.
FrSky Electronic Co., Ltd www.frsky-rc.com
Add:F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
Red LED Status
On Register
Flash Register successfully
Off Bind
Off Bind successfully
Off Working normally
Flash Failsafe
TM
