FrSky Archer GR8 Instruction Manual

Model:Archer GR8
FCC ID:XYFAGR24SRM

Introduction

Thank you for purchasing FrSky Archer GR8 telemetry receiver. In order to fully enjoy the benefits of this system, please read
the instruction manual carefully and set up the device as described below.

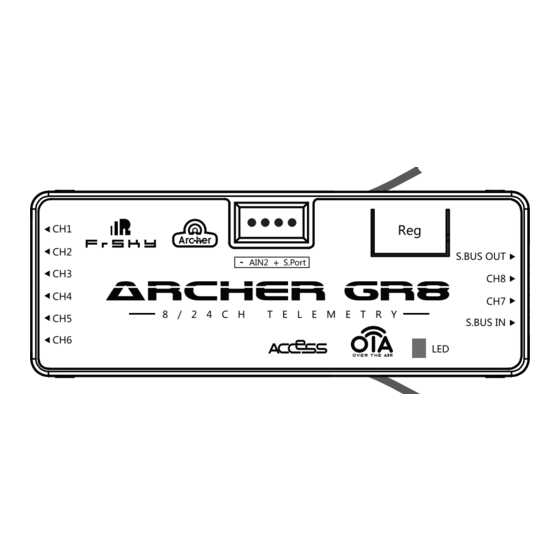

Overview

Specifications

• Dimension: 54mm*20mm*10mm (L*W*H)
• Weight: 9.8g
• Number of Channels:47 channel support
• Operating Voltage Range: 3.5V~10V
• Operating Current: ＜60mA@5V
• Operating Range: full range
• Firmware Upgradable
• Compatibility: ACCESS

Features

• Installed with ACCESS protocol support OTA function
• Variometer sensor: the measures range is -700m-10000m with the precision of 0.1m (high precision version), support altimeter (the
rate range is ±16.7m/s) .
• GR8 supports the redundancy function for the master and slave receivers. The master receiver receives SBUS signal from the slave
receiver. The master receiver can be GR8, and the slave receiver can be receiver with SBUS output (for example, FrSky X8R, X6R,
X4R SB, XSR, XM, XM+, R-XSR, G-RX8, L9R, etc) .

LED state

Green LED
On
Flash
Flash
On
On
Off
FrSky Electronic Co., Ltd.
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: sales4tech@gmail.com
Instruction Manual for FrSky Archer GR8 Receiver
TOP
Red LED
On
Flash
Off
Off
Off
Flash
www.frsky-rc.com
Status
Register
Register successfully
Bind
Bind successfully
Working normally
Failsafe
