Information about the documentation About this documentation • Read this documentation before initial operation or use. This is a prerequisite for safe, trouble-free handling and use of the product. • Observe the safety instructions and warnings in this documentation and on the product. •...
Page 6
Direct current (DC) Wireless data transfer Li-ion battery Hilti Li-ion battery type series used. Observe the information given in the section headed In- tended use. Product information products are designed for professional users and only trained, authorized personnel are permitted to operate, service and maintain the products. This personnel must be specifically informed about the possible hazards.
Page 7
▶ If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. Personal safety ▶ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.
Page 8
▶ Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire. Service ▶...
Page 9
▶ Do not use or charge batteries that have suffered mechanical impact, have been dropped from a height or show signs of damage. In this case, always contact your Hilti Service. ▶ If the battery is too hot to touch it may be defective. In this case, place the product in a non-flammable location, well away from flammable materials, where it can be kept under observation and allowed to cool down.
Page 11

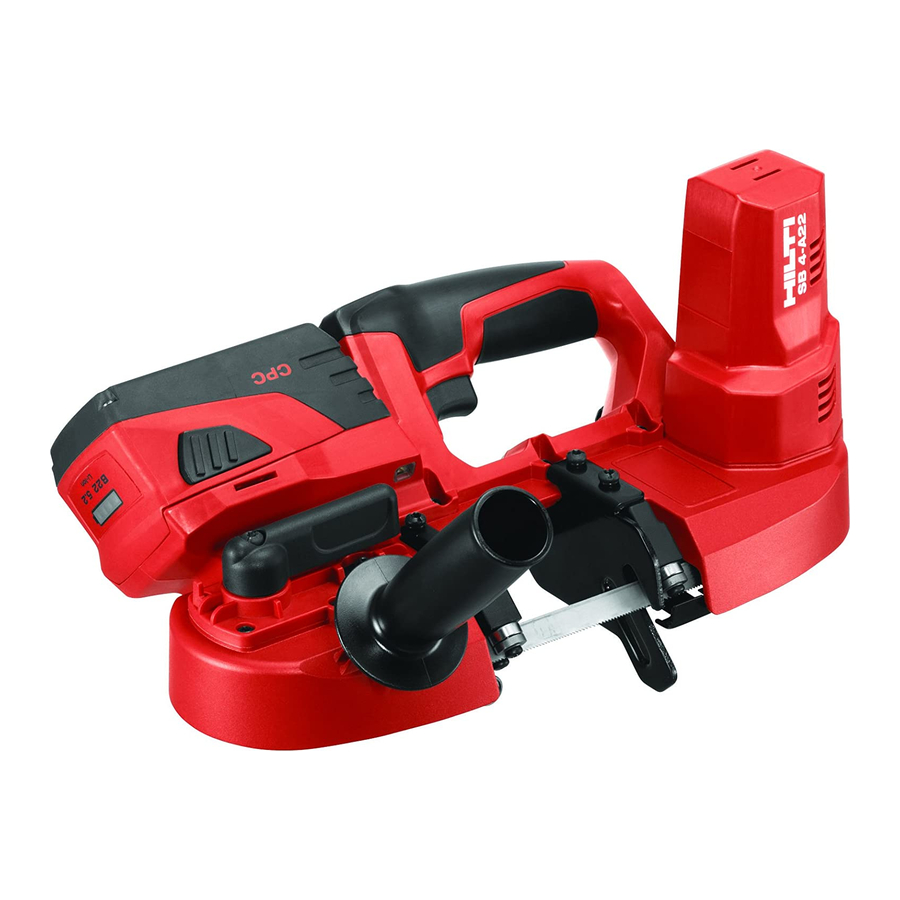

The product described is a cordless bandsaw. It is designed for cutting metals and plastics. The product is designed for two-handed operation. ▶ Use only Hilti Liion batteries of the B 22 series with this product. ▶ Use only Hilti battery chargers of the C4/36 series to charge these batteries.
'Troubleshooting' section. Items supplied. Bandsaw, operating instructions. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Store or online at: www.hilti.group | USA: www.hilti.com Technical data...
Total vibration SB 4-A22 Vibration emission value for cutting in metal (ah,CM) 1.5 m/s² Uncertainty (K) 1.5 m/s² Vibration emission value for cutting in wood (ah,CW) 1.3 m/s² Uncertainty (K) 1.5 m/s² Operation Charging the battery 1. Before charging the battery, read the operating instructions for the charger.
Page 14
Removing the battery 1. Press and hold down the two release buttons. 2. Pull the battery forward and out of the product. Safe operation CAUTION Risk of injury by inadvertent starting! ▶ Before inserting the battery, make sure that the product is switched off. ▶...
Page 17
1. Slacken the 2 screws securing the blade cover and remove the cover. 2. Turn the side handle counterclockwise to unscrew it from the casing of the bandsaw. 3. Swivel the lever in the direction of rotation through its full 180 ° of travel. The side handle has to be removed to allow the lever to pivot.
Page 18
2. Slacken the 2 screws securing the blade cover and remove the cover. 3. Turn the side handle counterclockwise to unscrew it from the casing of the bandsaw. 4. Pivot the lever in the direction of rotation through its full 180° of travel. The side handle has to be removed to allow the lever to pivot.
Page 19
To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Store or online at: www.hilti.group.
▶ Cover the terminals with a non-conductive material (such as electrical tape) to prevent short circuiting. ▶ Dispose of your battery out of the reach of children. ▶ Dispose of the battery at your Hilti Store, or consult your local governmental garbage disposal or public health and safety resources for disposal instructions.
There is a link to the RoHS table, in the form of a QR code, at the end of this document. Manufacturer’s warranty ▶ Please contact your local Hilti representative if you have questions about the warranty conditions. English Printed: 05.06.2019 | Doc-Nr: PUB / 5310778 / 000 / 06...
