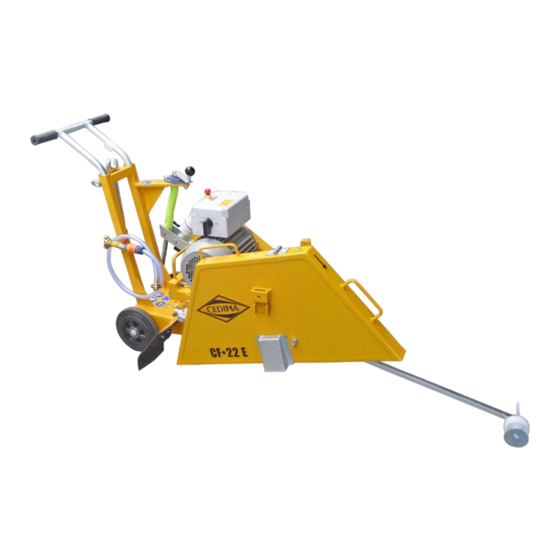

- Page 1 • Joint cutters • Diamond drilling • Table saws • Wall saws • Wire saws • Hydraulic units CF•22 E • Special machinery Change index 004 Issue date 2016-09-21 Translation of the original operating manual Operating manual maintenance manual and safety notes...
- Page 2 Trademark Name and logo are registered trademark of CEDIMA® Diamantwerkzeug- und Maschinenbauges. mbH Celle/Germany • CEDIMA® • Technical Documentation • All rights reserved according to ISO 16016 • Changes serving technical progress reserved •...
-
Page 3: Ec Declaration Of Conformity
This declaration of conformity immediately becomes invalid if changes are incorporated to the machine which have not been approved by us! Celle, 2016-09-21 Bob Siemsen (managing director) • CEDIMA® • Technical Documentation • All rights reserved according to ISO 16016 • Changes serving technical progress reserved •... - Page 4 Taking back / disposal of the equipment Chapter 7 Troubleshooting – What to do if. . .? Chapter 8 Terms of warranty • CEDIMA® • Technical Documentation • All rights reserved according to ISO 16016 • Changes serving technical progress reserved •...
-
Page 5: Technical Data And Accessories
= 78 dB (A) Measured acoustic power level * = 94 dB (A) * Higher values are possible during cutting. • CEDIMA® • Technical Documentation • All rights reserved according to ISO 16016 • Changes serving technical progress reserved •... -
Page 6: Accessories Provided
Contact CEDIMA® directly in the case of special applications. A list of additional accessories can be found in the current CEDIMA® price list. • CEDIMA® • Technical Documentation • All rights reserved according to ISO 16016 • Changes serving technical progress reserved •... - Page 7 The modular design facilitates cleaning, maintenance and if necessary the repair. Separated in modules Figure 2.2 • CEDIMA® • Technical Documentation • All rights reserved according to ISO 16016 • Changes serving technical progress reserved •...
- Page 8 Powerful electric motor V-belt drive Geka- water connection with shut-off valve Front pointer Figure 2.3 • CEDIMA® • Technical Documentation • All rights reserved according to ISO 16016 • Changes serving technical progress reserved •...
-
Page 9: Basic Safety Instructions
Important passages are always written in italics! Text passages relating to safety are always shown in bold Guaranteed sound pressure lettering, in italics! level • CEDIMA® • Technical Documentation • All rights reserved according to ISO 16016 • Changes serving technical progress reserved •... -
Page 10: Organisational Measures
• CEDIMA® • Technical Documentation • All rights reserved according to ISO 16016 • Changes serving technical progress reserved •... - Page 11 Pay attention to the danger of fire and during start-up or operation. explosion when filling the tank! Do not spill fuel onto hot machine parts. • CEDIMA® • Technical Documentation • All rights reserved according to ISO 16016 • Changes serving technical progress reserved •...
- Page 12 3.2.4.40 The cover/taped protection must be completely of part and assemblies. This work may only be carried removed after cleaning! out by specially trained personnel! • CEDIMA® • Technical Documentation • All rights reserved according to ISO 16016 • Changes serving technical progress reserved •...
- Page 13 3.2.6.3 Observe any applicable national regulations when Find out about the safe distances to be maintained! working in confined spaces! • CEDIMA® • Technical Documentation • All rights reserved according to ISO 16016 • Changes serving technical progress reserved •...
-
Page 14: Transporting The Machine
3.2.9.8 Properly collect, store and dispose of operating materials and lubricants which can no longer be used! • CEDIMA® • Technical Documentation • All rights reserved according to ISO 16016 • Changes serving technical progress reserved •... -
Page 15: Setup And Operation
If they can be pressed further they need to retight- Spring cotter pin Figure 4.1 The tensioning and changing of the V-belts is described in chapter “care and maintenance”. • CEDIMA® • Technical Documentation • All rights reserved according to ISO 16016 • Changes serving technical progress reserved •... - Page 16 Turn the spindle by means of the hand crank until the blade arm reaches its maximum height. At the same time the machine is braked by the stopper. Figure 4.5 • CEDIMA® • Technical Documentation • All rights reserved according to ISO 16016 • Changes serving technical progress reserved •...
-
Page 17: Mounting The Saw Blade
Before mounting the saw blade check it for possible dam- ages. Stopper Figure 4.8 • CEDIMA® • Technical Documentation • All rights reserved according to ISO 16016 • Changes serving technical progress reserved •... -
Page 18: Connecting The Water Supply
Before starting, connect the power supply to the electric motor. Make sure that you obey the relevant safety provi- sions for the operation of electrical machinery. • CEDIMA® • Technical Documentation • All rights reserved according to ISO 16016 • Changes serving technical progress reserved •... - Page 19 Only operate the machine in the position! ∆ Y Y ∆ CF-22 E switched off Figure 4.12b Star-delta reversing switch switched in ∆-Position Figure 4.12c • CEDIMA® • Technical Documentation • All rights reserved according to ISO 16016 • Changes serving technical progress reserved •...
-
Page 20: Adjusting The Cutting Depth
Start moving the joint cutter slowly and keep pushing forwards evenly! Choose the feed rate in such a way so that the motor rpm is slightly reduced! • CEDIMA® • Technical Documentation • All rights reserved according to ISO 16016 • Changes serving technical progress reserved •... -
Page 21: Maintenance And Care
– Remove dust and dirt with a lightly damp cloth! – Remove stubborn crusty sediment with a (not too hard) brush! • CEDIMA® • Technical Documentation • All rights reserved according to ISO 16016 • Changes serving technical progress reserved •... -
Page 22: Tightening Torques
Keep the safety and warning plates fitted to the machine always clean so that they are still legible after a longer period. • CEDIMA® • Technical Documentation • All rights reserved according to ISO 16016 • Changes serving technical progress reserved •... - Page 23 Maintenance and care Joint cutter CF•22 E Maintenance intervals for the CEDIMA® joint cutter CF•22 E • CEDIMA® • Technical Documentation • All rights reserved according to ISO 16016 • Changes serving technical progress reserved •...
- Page 24 For more concrete specifications, refer to “rules for safety and health protection - selection and operation of electrical installations and operating equipment on building sites“ (BGI 608). • CEDIMA® • Technical Documentation • All rights reserved according to ISO 16016 • Changes serving technical progress reserved •...
-
Page 25: Maintenance Work
A sudden rupture with negative conse- quences for the diamond saw blade and the motor cannot be excluded! • CEDIMA® • Technical Documentation • All rights reserved according to ISO 16016 • Changes serving technical progress reserved •... - Page 26 • Dismantle the joint cutter in the appropriate (3) parts (see sect. 4.1.1). Check all connection, attachment elements and modules after transport for firm and correct seat! • CEDIMA® • Technical Documentation • All rights reserved according to ISO 16016 • Changes serving technical progress reserved •...
- Page 27 CEDIMA® commits to take the joint cutter CF•22 E back for disposal. The joint cutter is to be delivered free of charge at CEDIMA® or at a point of acceptance appointed by CEDIMA®. • CEDIMA® • Technical Documentation • All rights reserved according to ISO 16016 • Changes serving technical progress reserved •...
- Page 28 The cutting shaft is bent Replace the bearing and/or cutting shaft The saw blade is overheated Optimise the cooling water feed • CEDIMA® • Technical Documentation • All rights reserved according to ISO 16016 • Changes serving technical progress reserved •...
- Page 29 The problems and their possible causes are mainly due to natural wear and to incorrect use of the joint cutter or the diamond saw blades! Therefore you should read this operating manual thoroughly! • CEDIMA® • Technical Documentation • All rights reserved according to ISO 16016 • Changes serving technical progress reserved •...
-
Page 30: Terms Of Warranty
– Control potentiometers and manual switching – Drilling, separating and cutting tools elements – Energy storage devices Page 1 of 2 pages • CEDIMA® • Technical Documentation • All rights reserved according to ISO 16016 • Changes serving technical progress reserved •... - Page 31 13. The place of performance and venue for both parties is Celle, Germany. CEDIMA® Diamantwerkzeug- und Maschinenbaugesellschaft mbH, Celle January 2005 Page 2 of 2 pages • CEDIMA® • Technical Documentation • All rights reserved according to ISO 16016 • Changes serving technical progress reserved •...
- Page 32 CEDIMA® Diamantwerkzeug- und Maschinenbaugesellschaft mbH Lärchenweg 3 • 29227 Celle/Germany Tel. +49 (0) 5141-8 8540 • Fax +49 (0) 5141-8 64 27 Internet: www.cedima.com • E-mail: info@cedima.com...
