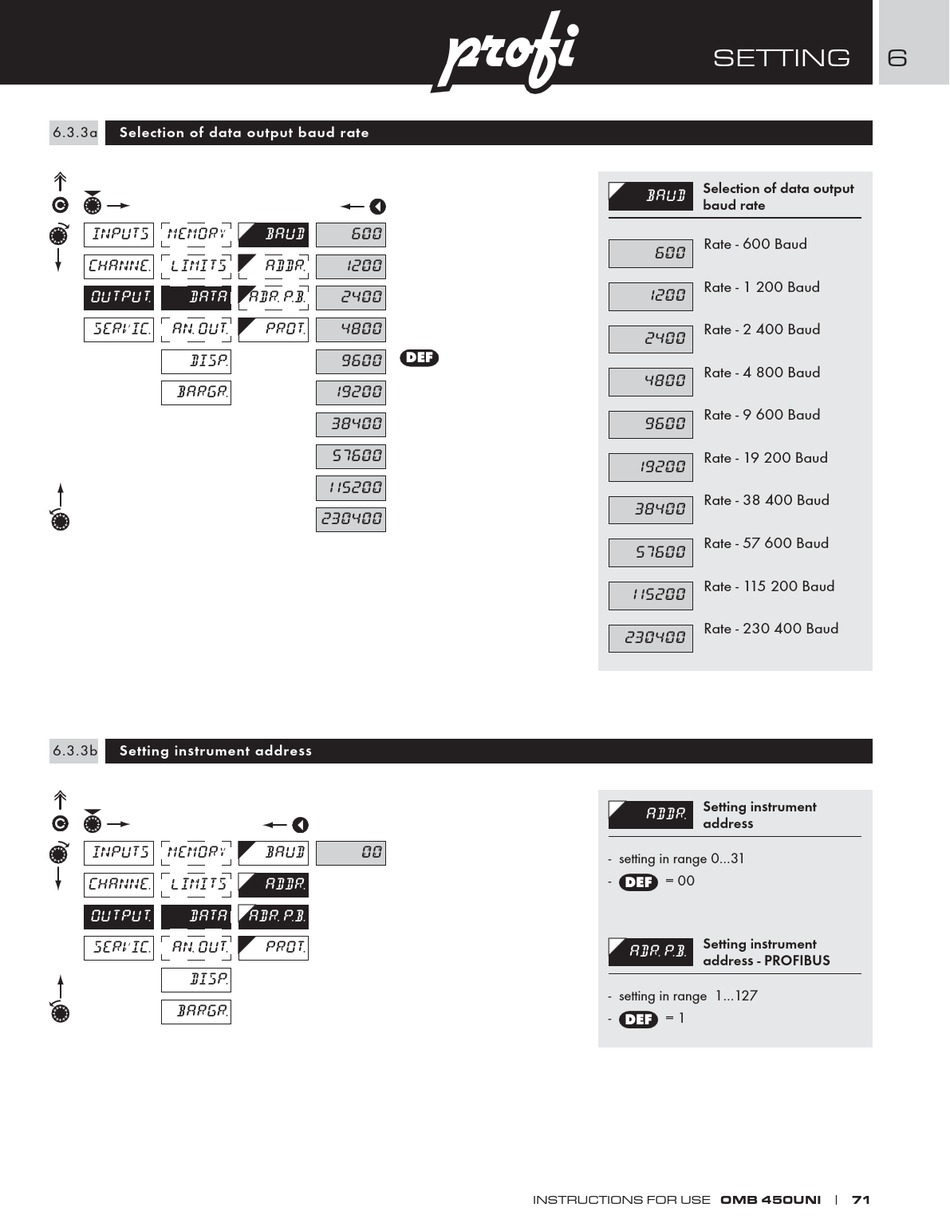

6.3.3a
Selection of data output baud rate
INPUTS MEMORY
CHANNE.
LIMITS
OUTPUT.
DATA
SERVIC.
AN. OUT.
DISP.
BARGR.
6.3.3b
Setting instrument address
INPUTS MEMORY
CHANNE.
LIMITS
OUTPUT.
DATA
SERVIC.
AN. OUT.
DISP.
BARGR.
BAUD
600
ADDR.
1200
ADR. P. B .
2400
PROT.
4800
DEF
9600
19200
38400
57600
115200
230400
BAUD
00
ADDR.
ADR. P. B .
PROT.
profi
profi
230400
- setting in range 0...31
-
- setting in range 1...127
-
INSTRUCTIONS FOR USE OMB 450UNI
SETTING
Selection of data output
BAUD
baud rate

Rate - 600 Baud
600

Rate - 1 200 Baud
1200

Rate - 2 400 Baud
2400

Rate - 4 800 Baud
4800

Rate - 9 600 Baud
9600

Rate - 19 200 Baud
19200

Rate - 38 400 Baud
38400

Rate - 57 600 Baud
57600

Rate - 115 200 Baud
115200

Rate - 230 400 Baud
Setting instrument
ADDR.
address
= 00
DEF
Setting instrument
ADR. P. B .
address - PROFIBUS
= 1
DEF
6
|
71
