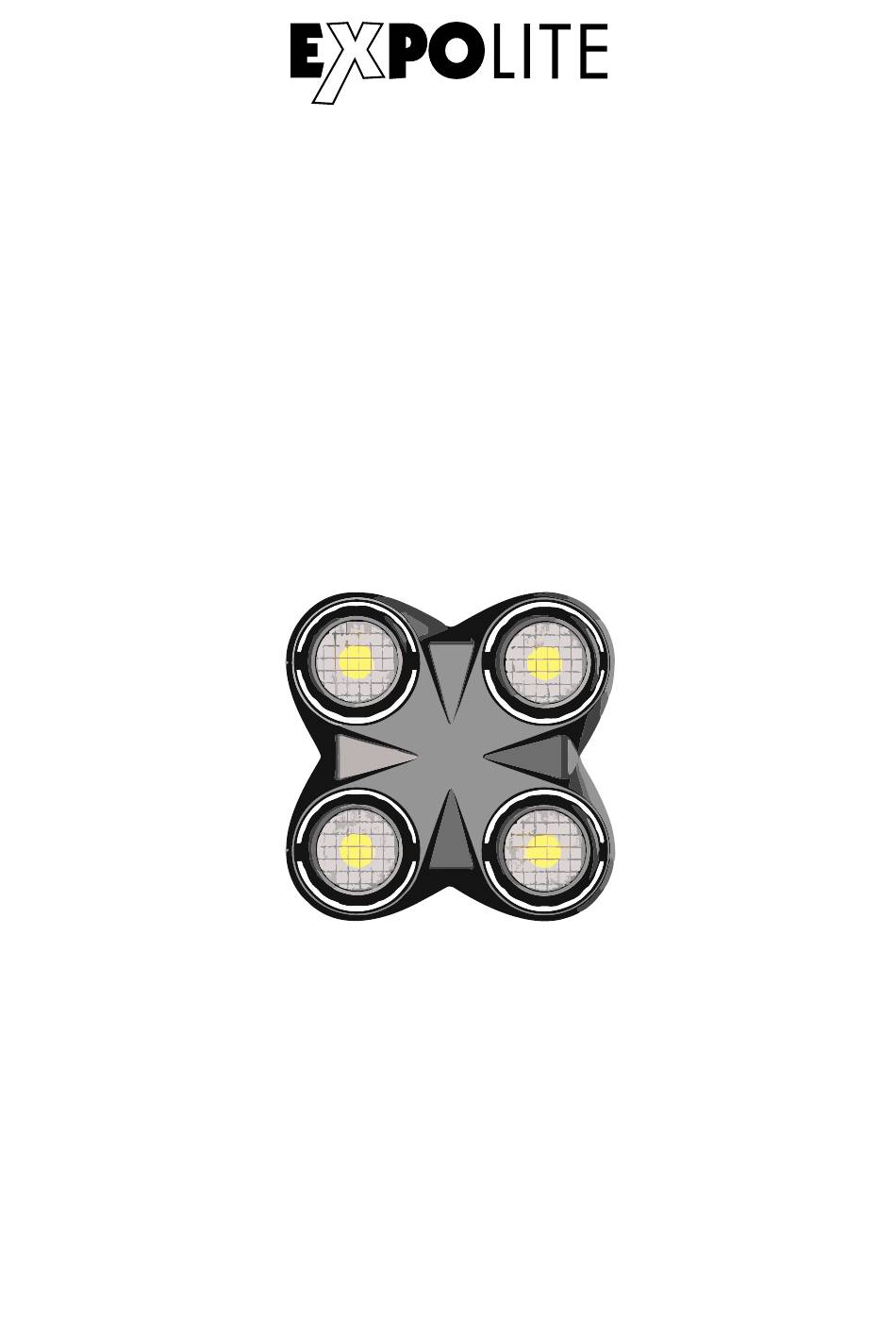

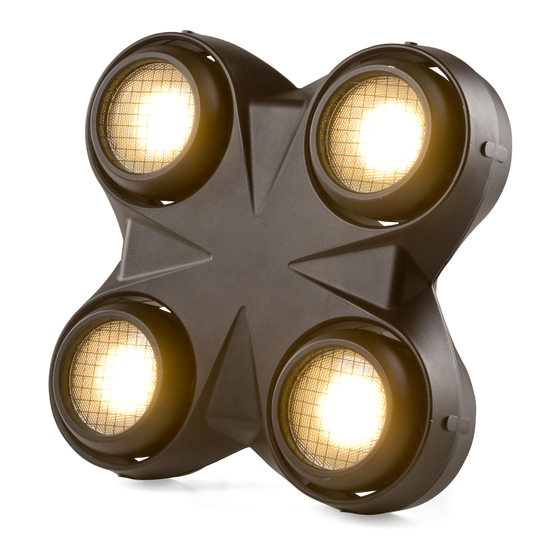

- Page 1 Tour-Blinder 400 led80050 PRE-MANUAL Änderungen sind ohne Ankündigung möglich. RAWMNLeng V201705-001 Changes are possible without prior notice.
- Page 2 1 Dimensions...
-
Page 3: Safety Instructions
DESCRIPTION Features Ÿ Easy multi fixture hanging system, outdoor version available Ÿ 4*120w 3000k LED, no ultraviolet radiation Ÿ 1300 lux in 5 meters Ÿ 60 degree for beam angle Ÿ 1/3/4/9 DMX channels Ÿ 16 Bit Dimmer Ÿ DMX Mode /Master-slave mode Ÿ... -
Page 4: Dmx-512 Control Connection
it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard. Make sure that the available voltage is not higher than stated at the end of this manual. Make sure the power cord is never crimped or damaged by sharp edges. -
Page 5: Display Menu
Display Menu Main menu Sub-menu Remark Auto Speed Auto1 1-100 Auto2 1-100 Auto Mode default: Auto1 Auto3 1-100 Speed:100 Auto4 1-100 Auto5 1-100 Auto6 1-100 Dimmer Static Strobe Normal Stander speed Fast Dimmer mode Mode1 default：XXX Medium Mode 2 Mode 3 Slow Keep screen Exit the main menu,... -
Page 6: Main Functions
LED4 LED Scan rate 600Hz 1200Hz 2000Hz Default:1200Hz 4000Hz 25KHz Main functions 1. address:Current DMX address A.Setting DMX address by button press ENTER button when show the address menu, then adjust the DMX address by pressing [UP] or [DOWN] button Press [ENTER] to confirm or pressing [ESC] to return to main menu. - Page 7 over 512 6. set the value of channel 5 -8 out of the value range show on the step 1,and the device will exit the setting address mode 2. config Setting DMX mode press ENTER button when show the channel menu, then select the DMX mode by pressing [UP] or [DOWN] button Setting Dimmer Curve press ENTER button when show the dimmer curve menu,...
-
Page 8: Dmx Functions And Values
will show how long time of the fixture already used 4. Color menu press ENTER button when show the Color menu, press Enter button to select the color mode, then adjust the color by pressing [UP] or [DOWN] button 5. White balance press ENTER button when show the white balance menu, press Enter button to select the color mode, then adjust the color by pressing [UP] or [DOWN] button... - Page 9 LED head 1 000-255 0-100% LED head 2 000-255 0-100% LED head 3 000-255 0-100% LED head 4 000-255 0-100% 9CH Mode Function Value Description Remark Master 0-100% 000-255 Dimmer Fine 0-100% 000-255 MasterDimmer Strobe 000-010 NoFunction Slow to 011-132 Strobe fast Slow to...
