Summary of Contents for Panther P1

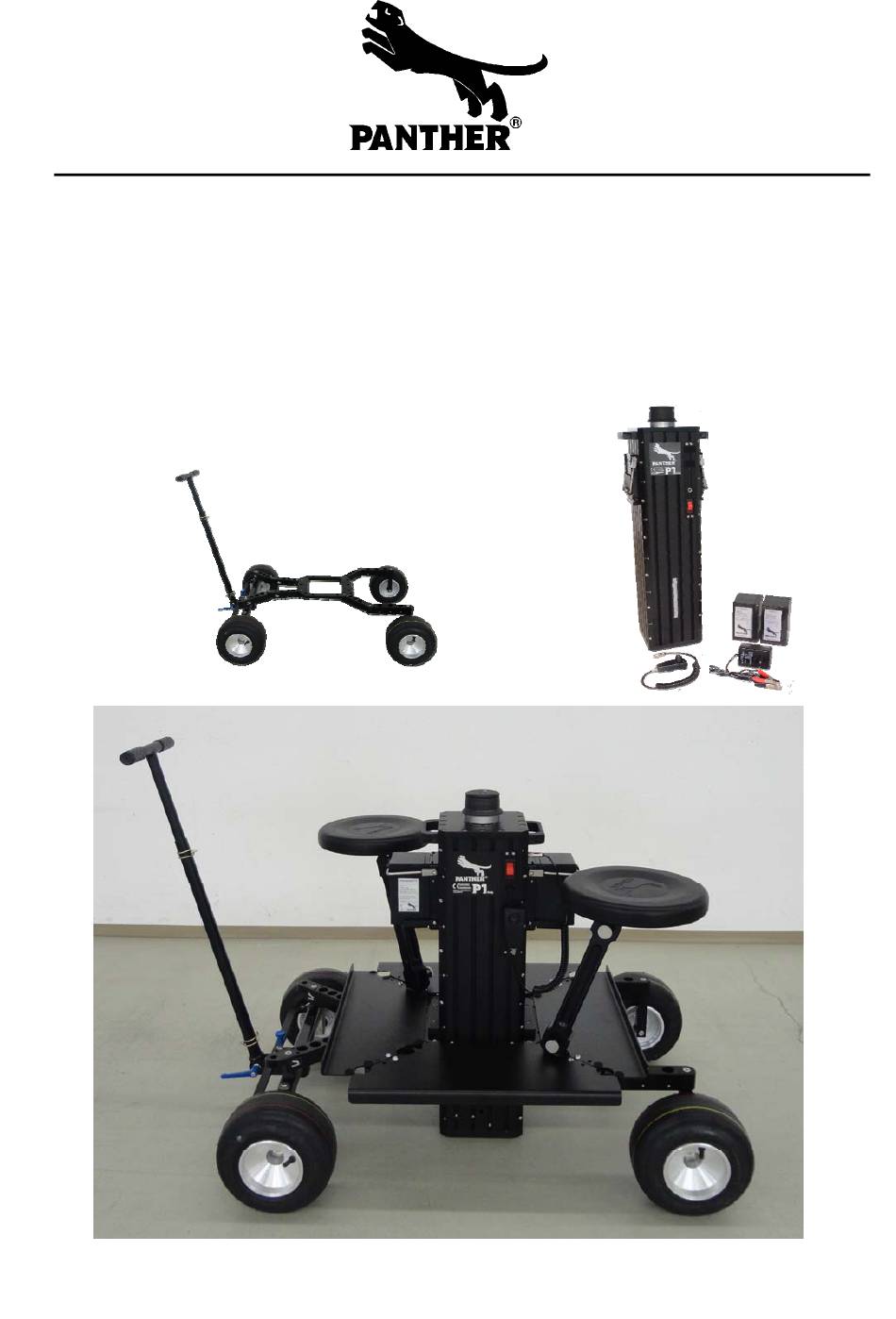

- Page 1 I n s t r u c t i o n M a n u a l Panther P1 Dolly System...
- Page 2 The PANTHER P1 is a dolly developed by specialists for specialists in order to meet the expectations of every cameraman or grip.
-
Page 3: Safety Hints
5. Attention: do not use the dolly on inclined planes or in vehicles. By means of wheel brakes or other devices the Panther P1 dolly has to be secured against unintended movements. The subsoil needs to be firm and unyielding. - Page 4 The Panther P1 Column Dolly 1. Carrying handle 5. Fuse 2. Removable Euromount 6. Handset control with cable 3. Plug for handset control 7. Adjustable column mount 4. Main switch 8. Quick lock battery mount...
-
Page 5: Mechanical Principles
Mechanical Principles It is useful to understand the Panther P1 Dolly’s mechanical principles, in order to avoid misusing the dolly. This is why we are noting the most important characteristics in this operation manual. Drive The column is moved up or down by a spindle that is located on the back side (opposite side of main switch) of the column. -
Page 6: Handset Control
P1 Column with platform Dollies (e.g.Twister Dolly) Attention! P1 Column Drive Belt Base Plate Dolly Platform Attention: Do not exceed the length of thread in P1 Colum Base Plate (15mm)! You may damage parts inside the column with connecting screw. -
Page 7: Track Operation
Track operation P1 Dolly is designed to track on 36cm and 62cm gauge. The Panther SkateBoard Wheels are designed to track on straight and curved tracks. The minimum allowed curve diameter is 3m. An extra “curve track wheel” is not necessary. - Page 8 P1 Dolly in tracking mode fully equipped with four platforms, two seats, and telescopic push bar. To mount Push Bar use connecting clamp or use 25mm holes in legs. Attention: The tracks underneath the dolly must always be laid out horizontally. Tracks and wedges must be secured against slipping.
-
Page 9: Load Chart
Offset mount on operator side (main switch) only! Note: Insert column in different direction if offset is needed on other side. P1 column can be inserted into P1 Dolly in 4 different directions due to the symmetrical design. When operating in offset mode (low rig), wide gauge (62cm) must be used due to stability reasons (tilting). -
Page 10: Ground Clearance
Ground clearance Ground clearance on P1 Dolly can be adjusted to your individual needs by sliding the column holder up or down. P1 column can be inserted into P1 Dolly in 4 different directions due to the symmetrical design. Column extension: The P1 column can be extended by using tube connector + 80mm tube (available in various length). -
Page 11: Power Supply
Power Supply The Dolly´s power is supplied by two batteries with 12V each. Operation with one battery only is not possible. A charged set of batteries has an operating time of approx. 100 column movements, depending on the load. The batteries are attached and taken off with quick lock brackets. Charging options Charging on battery Charging two batteries with connecting... -
Page 12: Maintenance
Warranty claims will only be accepted if the servicing intervals have been observed. Servicing may only be effected by trained personnel that knows the P1 Dolly’s mechanics. The P1 Dolly is mostly service-free and works reliably. -
Page 13: Technical Data
Measurements: Length P1 Dolly: 100 cm (40´´) Width P1 Dolly: 80 cm (32´´) 65cm (25,5´´) optional with narrow tires Min. height P1 column: 82 cm (32´´) Max. height P1 column: 132 cm (52´´) narrow gauge/wide gauge Track gauge: 36 cm (14´´) / 62 cm (24.5´´)
