Multi-Channel Function Generator
MFG-2000 Series
QUICK START GUIDE
GW INSTEK PART NO. 82MF-2K000MD1
ISO-9001 CERTIFIED MANUFACTURER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MFG-2000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GW Instek MFG-2000 Series

Summary of Contents for GW Instek MFG-2000 Series

  • Page 1 Multi-Channel Function Generator MFG-2000 Series QUICK START GUIDE GW INSTEK PART NO. 82MF-2K000MD1 ISO-9001 CERTIFIED MANUFACTURER...
  • Page 2 This manual contains proprietary information, which is protected by copyright. All rights are reserved. No part of this manual may be photocopied, reproduced or translated to another language without prior written consent of Good Will Corporation. The information in this manual was correct at the time of printing. However, Good Will continues to improve its products and therefore reserves the right to change the specifications, equipment, and maintenance procedures at any time without notice.

  • Page 3: Table Of Contents

    Selecting a Waveform ..........33 Modulation ............... 35 Sweep ............... 44 Burst ................ 46 ARB ................48 Utility Menu ............. 53 Menu Tree ..............54 Default Settings ............72 MFG-2000 Series Specifications ....... 74 EC Declaration of Conformity ........84 GLOBL HEADAQARTERS .......... 85...

  • Page 4: Safety Instructions

    MFG-2000 Quick Start Guide AFETY INSTRUCTIONS This chapter contains important safety instructions that should be followed when operating and storing the function generator. Read the following before any operation to ensure your safety and to keep the function generator in the best condition.
  • Page 5 SAFETY INSTRUCTIONS Double Insulated Do not dispose electronic equipment as unsorted municipal waste. Please use a separate collection facility or contact the supplier from which this instrument was purchased. Safety Guidelines Do not place heavy objects on the instrument. General ...
  • Page 6 MFG-2000 Quick Start Guide AC Input voltage: 100 ~ 240V AC, 50 ~ 60Hz. Power Supply  Or 100 ~ 120V AC, 220 ~ 240V AC,50 ~ 60Hz WARNING (With power amplifier) Connect the protective grounding conductor of  the AC power cord to an earth ground to prevent electric shock.
  • Page 7 SAFETY INSTRUCTIONS (Pollution Degree) EN 61010-1:2010(Third Edition)specifies pollution degrees and their requirements as follows. The function generator falls under degree 2. Pollution refers to “addition of foreign matter, solid, liquid, or gaseous (ionized gases), that may produce a reduction of dielectric strength or surface resistivity”.
  • Page 8 MFG-2000 Quick Start Guide Power cord for the United Kingdom When using the function generator in the United Kingdom, make sure the power cord meets the following safety instructions. NOTE: This lead/appliance must only be wired by competent persons WARNING: THIS APPLIANCE MUST BE EARTHED IMPORTANT: The wires in this lead are coloured in accordance with the following code: Green/ Yellow:...

  • Page 9: Getting Started

    GETTING STARTED ETTING STARTED The Getting started chapter introduces the function generator’s main features, appearance, set up procedure and power-up. Main Features Model MFG-2000 series specific functions 25MHz Modulation Generator Power Pulse /Sweep/Burst/ Function With Function With (function Amplifier 200MSa/sARB...
  • Page 10 MFG-2000 Quick Start Guide DWR (Direct Waveform Reconstruction)  capability Ability to edit waveforms without a PC  -60dBc low distortion sine wave  Sine, Square, Ramp, Pulse, Noise waveforms Features  Internal and external LIN/LOG sweep with  marker output Int/Ext AM, FM, PM, FSK, SUM, PWM ...

  • Page 11: Panel Overview

    GETTING STARTED Panel Overview M F G - 2 2 6 0 M R A / 2 MFG-2260MRA/2260MFA Front Panel                             ...
  • Page 12 MFG-2000 Quick Start Guide M F G - 2 1 2 0 M A MFG- 2120MA/2130M Front Panel                            ...

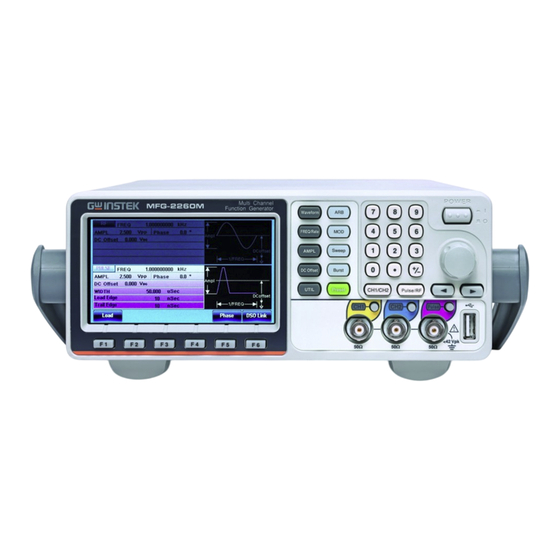

  • Page 13 GETTING STARTED M F G - 2 2 6 0 M MFG- 2260M/2230M Front Panel                             ...
  • Page 14 MFG-2000 Quick Start Guide ARB is used to set the  arbitrary waveform parameters. The MOD, Sweep and Burst   keys are used to set the    modulation, sweep and burst     settings and parameters. ...
  • Page 15 GETTING STARTED The digital keypad is used to Keypad    enter values and parameters.    The keypad is often used in conjunction with the arrow    keys and variable knob. ...
  • Page 16 MFG-2000 Quick Start Guide 6 0 M R A / 2 2 6 0 M F A MFG-2260MRA/2260MFA Rear Panel                          ...
  • Page 17 GETTING STARTED G - 2 1 6 0 M R / 2 1 6 0 M F MFG-2160MR/2160MF/2130M Rear Panel                       ...
  • Page 18 MFG-2000 Quick Start Guide F G - 2 1 1 0 / 2 1 2 0 MFG-2110/2120 Rear Panel                           ...
  • Page 19         GETTING STARTED       Power input: Power Input    Socket 100~240V AC P o w e r s w i t c h T r i g g e r F a n 50~60Hz.
  • Page 20             MFG-2000 Quick Start Guide       Power Amplifier input port Power     Amplifier in             Power Amplifier output port Power ...
  • Page 21 GETTING STARTED 21XX: Terminal Function Mode Trigger Trigger in(EXT) CH1:FSK,SWEEP,BURST RF:ASK,FSK,PSK,BURST Trigger out CH1:BURST Marker CH1:SWEEP,ARB MOD IN CH1:AM,FM,PM,SUM,PWM SYNC Sync signal output 22XX: Terminal Function Mode CH1/CH2:FSK,SWEEP,BURST Trigger RF:ASK,FSK,PSK,SWEEP,BUR MOD IN CH1/CH2:AM,FM,PM,SUM,B URST SYNC Trigger out CH1/CH2:SWEEP.BURST Marker CH1/CH2:SWEEP.ARB Sync signal output CH1,CH2...
  • Page 22 MFG-2000 Quick Start Guide Display The Parameter display and edit window. Parameter Windows Displays the current channel and setting status. Status Tabs Used to display the waveform Waveform Display The function keys (F1~F6) under the LCD display Soft Menu Keys correspond directly to the soft menu keys.

  • Page 23: Setting Up The Function Generator

    GETTING STARTED Setting Up the function Generator This section describes how to adjust the handle Background and power up the function generator. Adjusting the Handle Pull out the handle sideways and rotate Place the MFG-2000 horizontally, Or tilt the stand. Place the handle vertically to hand carry.
  • Page 24 MFG-2000 Quick Start Guide 2. Turn on the power switch on the front panel. 3. When the power switch is turned on the screen displays the loading screen.             ...

  • Page 25: Quick Reference

    QUICK REFERENCE UICK REFERENCE This chapter describes the operation shortcuts, built-in help and factory default settings. This chapter is to be used as a quick reference, for detailed explanations on parameters, settings and limitations, please see the operation chapters. How to use the Digital Inputs .......... 27 How to use the Help Menu ..........
  • Page 26 SWEEP ....................64 Burst_N Cycle ................... 65 Burst_Gate ..................66 UTIL_(22XX) ..................67 UTIL_(21XX) ..................70 CH1/CH2 ..................71 Pulse/RF .................... 71 Default Settings ............... 72 MFG-2000 Series Specifications ........74 EC Declaration of Conformity........... 84 GLOBL HEADAQARTERS ..........85...

  • Page 27: How To Use The Digital Inputs

    错误！使用“开始”选项卡将 標題 1 应用于要在此处显示的文字 How to use the Digital Inputs The MFG-2000 has three main types of digital Background inputs: the number pad, arrow keys and scroll wheel. The following instructions will show you how to use the digital inputs to edit parameters. 1.
  • Page 28 MFG-2000 Quick Start Guide 4. Alternatively, the number    pad can be used to set the    value of a highlighted parameter.    ...

  • Page 29: How To Use The Help Menu

    QUICK REFERENCE How to use the Help Menu Every key and function has a detailed description Background in the help menu. 1. Press UTIL  2. Press System (F4)    3. Press Help (F3)   4. Use the scroll wheel to navigate to a help item.
  • Page 30 MFG-2000 Quick Start Guide Sweep Function Provides help on the Sweep function. Burst Function Provides help on the Burst function. DSO Link Provides help on DSO link. Hardcopy Explains how to use the Hardcopy function. 5. For example, select item 4 to see help on the sweep functions.
  • Page 31 QUICK REFERENCE 7. Press Return to return to the previous menu.

  • Page 32: Display Area Allocation

    MFG-2000 Quick Start Guide Display area allocation MFG is divided into 21XX and 22XX two series of 10 Output channel models. It has mainly 4 different output channels CH1/ CH2/ Pulse/ RF to collocate with, CH1/ Pulse is standard configuration and CH2/ RF is optional. The display position for CH1 is fixed and the display position for Pulse changes depending on if the the CH2 available.

  • Page 33: Selecting A Waveform

    QUICK REFERENCE Selecting a Waveform Square Wave Example: Square wave, 3Vpp, 75% duty cycle, 1kHz. 1. Press Waveform and Output: qa  select Square (F2). 2. Press Duty (F1), 7 + 5  D        + %(F5).

  • Page 34: Sine Wave

    MFG-2000 Quick Start Guide 4. Press the AMPL key V   then 5 +VPP (F6). 5. Press the Output key. Sine Wave Example: Sine Wave, 10Vpp,100kHz 1. Press the Waveform Output:   key and select Sine (F1). 2. Press the Freq/Rate ...

  • Page 35: Modulation

    QUICK REFERENCE Modulation Example: AM modulation. 100Hz modulating square wave. 1kHz Sine wave carrier. 80% modulation depth. 1. Press the MOD key Output:   and select AM (F1). 2. Press Waveform and   select Sine (F1).       ...

  • Page 36: Ask

    MFG-2000 Quick Start Guide 9. Press MOD, AM (F1),    Source (F1), INT (F1).  10. Press the Output key. Example: ASK modulation. 50% duty cycle. 1kHz sine carrier wave. 10Hz rate . Internal source. 1. Press MOD and then Output: K ...
  • Page 37 QUICK REFERENCE 8. Press MOD, ASK(F5), K   Source (F1), INT (F1).  9. Press the Output key. Example: FM modulation. 100Hz modulating square wave. 1kHz Sine wave carrier. 100 Hz frequency deviation. Internal Source. 1. Press the MOD key Output: ...

  • Page 38: Fsk

    MFG-2000 Quick Start Guide 8. Press 1 + 0 + 0 + Hz    z (F3). 9. Press MOD, FM (F2),    Source (F1), INT (F1).  10. Press the Output key. Example: FSK modulation. 100Hz Hop frequency. 1kHz Carrier wave.
  • Page 39 QUICK REFERENCE 7. Press 1 + 0 + 0 + Hz    z (F3). 8. Press MOD, FSK (F3), K   Source (F1), INT (F1).  9. Press the output key. Example: PM modulation. 800Hz sinusoidal carrier wave. 15 kHz modulating sine wave.

  • Page 40: Psk

    MFG-2000 Quick Start Guide 8. Press 5 + 0 + Degree  Dg (F1). 9. Press MOD, PM (F4),    Source (F1), INT (F1).  10. Press the Output key. Example: PSK modulation. 50% phase deviation. 1kHz sine carrier wave. 10Hz PSK rate. Internal source.

  • Page 41: Pwm

    QUICK REFERENCE 8. Press MOD, PSK(F6), K   Source (F1), INT (F1)  9. Press the Output key Example: PWM modulation. 800Hz carrier, 15kHz modulated sine wave. 50% duty cycle. Internal source. 1. Press Waveform and Output: qa  select Square (F2) 2.

  • Page 42: Sum

    MFG-2000 Quick Start Guide 8. Press 5 + 0 + % (F1)   9. Press MOD,    PWM(F6),  Source(F1),INT(F1) 10. Press the Output key. Example: SUM modulation. 100Hz modulating square wave, 1kHz sinusoidal carrier wave, 50% SUM amplitude, internal source. 1.
  • Page 43 QUICK REFERENCE 7. Press the MOD key    and select SUM (F5), SUM Ampl (F2). 8. Press 5 + 0 + % (F1).   9. Press MOD, SUM    (F5), Source (F1), INT  (F1). 10.

  • Page 44: Sweep

    MFG-2000 Quick Start Guide Sweep Example: Frequency Sweep. Start Frequency 10mHz, Stop frequency 1MHz. Log sweep, 1 second sweep, Marker Frequency 550 Hz, Manual Trigger. 1. Press Sweep, Start Output: a  (F3). 2. Press 1 + 0 + mHz ...
  • Page 45 QUICK REFERENCE 11. Press Sweep, Source  aa  (F1), Manual (F3), gg Trigger (F1).

  • Page 46: Burst

    MFG-2000 Quick Start Guide Burst Example: Burst Mode, N-Cycle (Internally triggered), 1kHz burst frequency, Burst count = 5, 10 ms Burst period, 0˚ burst phase, Internal trigger, 10 us delay, rising edge trigger out 1. Press FREQ/Rate 1 Output:  kz Q...
  • Page 47 QUICK REFERENCE 11. Press Burst, N Cycle    (F1), TRIG setup (F5),  OO  TRIG out (F5), ON/OFF (F3), Rise (F1). 12. Press the Output key.

  • Page 48: Arb

    MFG-2000 Quick Start Guide ARB–Add Built-In Waveform Example: ARB Mode, Exponential Rise. Start 0, Length 100, Scale 327. 1. Press ARB, Built in Output: B av  (F3), Wave (F4), ah  Math(F2), use the scroll wheel to select Exporise and then ...
  • Page 49 QUICK REFERENCE 3. Press Data (F2),    Daa 3+0+0, Enter (F5). ...

  • Page 50: Arb-Add Line

    MFG-2000 Quick Start Guide ARB–Add Line Example: ARB Mode, Add line, Address:Data (10:30, 50:100) 1. Press ARB, Edit (F2), Output: Ed   Line (F2), Start ADD aDD (F1). 2. Press 1 + 0 + Enter       ...

  • Page 51: Arb-Output N Cycle

    QUICK REFERENCE 3. Press Length (F2), 1 +    gh 0 + 0, Enter (F5), Return.  E  ARB–Output N Cycle Example: ARB Mode, Output N Cycle, Start 0, Length 1000, N Cycle 1. Press ARB, Output: O...

  • Page 52: Arb-Output Infinite Cycles

    MFG-2000 Quick Start Guide ARB–Output Infinite Cycles Example: ARB Mode, output N cycle, start 0, length 1000, cycles infinite. 1. Press ARB, Output: O  Output(F6). 2. Press Start (F1), 0 + a  E Enter (F5),       ...

  • Page 53: Utility Menu

    QUICK REFERENCE Utility Menu Save Example: Save to Memory file #5. 1. Press UTIL, Memory    (F1), Store (F1). 2. Choose a setting using the scroll wheel   D D and press Done (F5). Recall Example: Recall Memory file #5. 1.

  • Page 54: Menu Tree

    MFG-2000 Quick Start Guide Menu Tree Conventions Use the menu trees as a handy reference for the function generator functions and properties. The MFG-2000 menu system is arranged in a hierarchical tree. Each hierarchical level can be navigated with the operation or soft menu keys.

  • Page 55: Waveform

    QUICK REFERENCE Waveform  Sine Square Triangle Pulse Ramp Noise Duty Width nSEC Return Return uSEC mSEC Return...

  • Page 56: Arb_Display

    MFG-2000 Quick Start Guide ARB_Display A R B D is p la y H o r iz o n V e r tic a l N e x t P a g e B a c k P a g e O v e r v ie w R e tu r n S ta r t...

  • Page 57: Arb_Edit

    QUICK REFERENCE ARB_Edit  Edit Point Line Copy Clear Protect Return Address Start ADD Start Start Clear Clear Clear Clear Done Enter Enter Enter Enter Return Return Return Return Data Start Data Length Length Start Clear Clear Clear Clear Clear Enter Enter Enter...

  • Page 58: Arb_Built In

    MFG-2000 Quick Start Guide ARB_Built In...

  • Page 59: Arb_Save

    QUICK REFERENCE ARB_Save  Save Start Length Memory Return Clear Clear Select Select Enter Enter Return Return Return New Folder Enter Char Back Space Save Return New File Enter Char Back Space Save Return The part “new folder’ listed below  is only available Note in the MFG-22XX series.

  • Page 60: Arb_Load

    MFG-2000 Quick Start Guide ARB_Load  Load Memory Done Return Select Select Return Return ARB_Output...

  • Page 61: Mod_(Ch1/Ch2)

    QUICK REFERENCE MOD_(CH1/CH2)  Source Source Source Source Source Source Return Return Return Return Return Return Depth Freq Dev Hop Freq Phase Dev Duty SUM Ampl Degree Return Return Return Return Return Return FSK Rate PM Freq SUM Freq PWM Freq AM Freq FM Freq Return...

  • Page 62: Mod_(Sine-Dds)

    MFG-2000 Quick Start Guide MOD_(Sine-DDS)  Source Source Source Source Source Source Return Return Return Return Return Return AM Depth ASK Ampl Freq Dev Hop Freq PSK Phase PM Dev Degree mVPP Return Return Return Return Return Return MOD Time ASK Rate MOD Time FSK Rate MOD Time PSK Rate...

  • Page 63: Mod_(Sine-Arb)

    QUICK REFERENCE MOD_(Sine-ARB)  Source Source Source Source Return Return Return Return Freq Dev Hop Freq PM Dev Duty Degree Return Return Return Return FM Freq FSK Rate PM Freq PWM Freq Return Return Return Return Shape Shape Shape Square Square Square Triangle...

  • Page 64: Sweep

    MFG-2000 Quick Start Guide SWEEP  Source Type Start Stop SWP Time More mSEC Linear Span Return Return Return Return Return Center Manual Trigger Return Return Return Marker Freq Return ON/OFF Return Return...

  • Page 65: Burst_N Cycle

    QUICK REFERENCE Burst_N Cycle  N Cycle Cycles Infinite Phase Period Return TRIG Setup Clear Clear uSEC Degree mSEC Return Return Return Rise Fall Return Manual Trigger Return Delay nSEC uSEC mSEC Return TRIG out Rise Fall ON/OFF Return...

  • Page 66: Burst_Gate

    MFG-2000 Quick Start Guide Burst_Gate B u rs t G a te P o la r ity P h a s e R e tu r n P o s C le a r N e g D e g r e e R e tu r n R e tu r n...

  • Page 67: Util_(22Xx)

    QUICK REFERENCE UTIL_(22XX)  Memory Interface Cal. System Counter Dual Ch. Store Freq Cpl State Self Test HardCopy Done Return Return Offset Return Radio Enter Return Recall Solfware Language Ampl Cpl Gate Time Done English 0.01 sec Version Return 中文 0.1 sec Return Return...
  • Page 68 MFG-2000 Quick Start Guide Remote Config Done Return DHCP AutoIP Manual IP Addr Done Clear Return NetMask Done Clear Return GateWay Done Clear Return Done Return HostName Enter Char Done Return Done Return...
  • Page 69 QUICK REFERENCE More Power ON Dis Options Sync OUT Return Last Default Return Display CH1 Mark CH2 Mark Return Contrast Return Return...

  • Page 70: Util_(21Xx)

    MFG-2000 Quick Start Guide UTIL_(21XX)  Memory Interface Cal. System Store Self Test HardCopy Done Return Recall Baud Rate Solfware Language Done 9600 English Return Version 19.2k Return 38.4k 57.6k 115k Upgrade Return Select Return Return Delete Help Return Return Done Select Return...

  • Page 71: Ch1/Ch2

    QUICK REFERENCE CH1/CH2 CH1/CH2 CH1/CH2 Load Phase DSO Link 50 OHM 0 Phase High Z Sync Int Return Degree Search Return Return The part “DSO Link’ listed below  is only available Note in the MFG-22XX series. Pulse/RF Pulse/RF Load Phase DSO Link 50 OHM...

  • Page 72: Default Settings

    MFG-2000 Quick Start Guide Default Settings The Preset key is used to restore the default panel  settings. Function Sine Wave Output Settings Frequency 1kHz Amplitude 3.000 Vpp Offset 0.00V dc Output units Output terminal 50Ω Modulation (AM/ASK/FM/FS K/PM/PSK/SUM) Carrier wave 1kHz sine wave Modulation wave 100Hz sine wave...
  • Page 73 QUICK REFERENCE PWM duty cycle Modem status Start/Stop frequency 100Hz/1kHz Sweep Sweep time Sweep type Linear Sweep status Burst frequency 1kHz Burst Ncycle Burst period 10ms Burst starting phase 0˚ Burst status Power off signal System Settings Display mode Error queue Cleared Memory settings No change...

  • Page 74: Mfg-2000 Series Specifications

    MFG-2000 Quick Start Guide MFG-2000 Series Specifications The specifications apply when the function generator is powered on for at least 30 minutes under +18° C~+28° C. MFG-2000 series specific functions 25MHz Modulation Generator Power Function With Function With Pulse /Sweep/Burst/Fr...
  • Page 75 QUICK REFERENCE win,Hamming,Hann,Hanning,Kais er,Triang,Tukeywin Frequency Characteristics Range Sine 60MHz(max) Square 25MHz(max) Triangle, Ramp 1MHz Resolution 1μHz Accuracy Stability ±20 ppm Aging ±1 ppm, per 1 year ≤1μHz Tolerance Output Characteristics(2) Amplitude Range 1mVpp to 10 Vpp (into 50Ω) 2mVpp to 20 Vpp (open-circuit) Accuracy ±2% of setting ±1 mVpp (at 1 kHz/into 50Ω...
  • Page 76 MFG-2000 Quick Start Guide Characteristics(3) Harmonic –60 dBc <200kHz, distortion Ampl>0.1 Vpp –55 dBc 200kHz～1 MHz, Ampl>0.1 Vpp –45 dBc 1MHz～10 MHz, Ampl ＞0.1Vpp –35 dBc 10MHz～30 MHz, Ampl ＞0.1Vpp –27 dBc 30MHz～60MHz, Ampl ＞0.1Vpp Total harmonic distortion < 0.1% (Ampl>1Vpp) DC~100 kHz Square wave Characteristics...
  • Page 77 QUICK REFERENCE Pulse Width 20nS~999.7ks(limited by the current frequency setting) Variable duty Cycle 0.1%~99.9%(limited by the current frequency setting) Leading and Trailing Edge 10nS~20S(1ns resolution) (limited Time(5) by the current frequency and pulse width settings) Overshoot <5% Jitter 100ppm+500ps(4) RF Generator Arbitrary Functions ARB function...
  • Page 78 MFG-2000 Quick Start Guide offset)) Resolution 1mV or 3 digits Flatness ± 1% (0.1dB) ≦1MHz ± 3% (0.3dB) ≦50 MHz ± 10% (0.9dB) ≦160MHz ± 35% (3.5dB) ≦320MHz (sinewave relative to 1 kHz/into 50Ω) Offset ±1 Vpk ac +dc (into 50Ω) ±2Vpk ac +dc (Open circuit) Waveform Impedance...
  • Page 79 QUICK REFERENCE (Resolution:5uS) Sine-ARB 2mHz to20kHz (Resolution:1mHz) Carrier Waveforms Sine-DDS Modulating Waveforms 50% duty cycle square Internal Frequency 2mHz to 1 MHz Phase Range 0°~360.0° Source Internal / External Carrier Waveforms Sine-DDS Modulating Waveforms 50% duty cycle square Internal Frequency 2mHz to 1 MHz Amplitude Range 0%~100.0%...
  • Page 80 MFG-2000 Quick Start Guide 20kHz (Ext) Depth 0% to 120.0% Source Internal / External FM Modulation Carrier Waveforms Sine, Square, Triangle, Ramp Modulating Waveforms Sine, Square, Triangle,Upramp, Dnramp Modulating Frequency 2mHz to20kHz (Int)DC to 20kHz (Ext) Peak Deviation DC to max frequency Source Internal / External PM Modulation...
  • Page 81 QUICK REFERENCE Modulating Waveforms 50% duty cycle square Internal Frequency 2mHz to 1 MHz Frequency Range 1μHz to max frequency Source Internal / External Sweep Waveforms Sine, Square, Triangle, Ramp Type Linear or Logarithmic Sweep direction Sweep up or sweep down Start/Stop Freq 1uHz to max frquency Sweep Time...
  • Page 82 MFG-2000 Quick Start Guide Trigger Output Type For ARB,Burst,Sweep Level TTL Compatible into 50Ω Pulse Width >16ns Maximum Rate 25MHz ≥4 TTL Load Fan-out Impedance 50Ω Typical Frequency Counter Range 5Hz to 150MHz Accuracy Time Base accuracy±1count Time Base ±20ppm (23˚C ±5˚C) Resolution The maximum resolution is: 100nHz for 1Hz, 0.1Hz for...
  • Page 83 QUICK REFERENCE Operating Environment Temperature to satisfy the specification : 18 ~ 28˚C Operating temperature : 0 ~ 40˚C Relative Humidity: ≤ 80%, 0 ~ 40˚C ≤70%, 35 ~ 40˚C Installation category： CAT II Operating Altitude 2000 Meters Pollution Degree IEC 61010 degree 2, Indoor use -10~70˚C, Humidity: ≤70% Storage Temperature...

  • Page 84: Ec Declaration Of Conformity

    MFG-2000 Quick Start Guide EC Declaration of Conformity GOOD WILL INSTRUMENT CO., LTD. No.7-1, Jhongsing Rd., Tucheng Dist., New Taipei City 236, Taiwan GOOD WILL INSTRUMENT (SUZHOU) CO., LTD. No. 69, Lushan Road, Suzhou New District Jiangsu, China declares that the below mentioned product MFG-2110, MFG-2120,MFG-2120MA,MFG-2130M,MFG-2230M,MFG- 2260M,MFG-2160MF,MFG-2260MFA,MFG-2160MR,MFG-2260MRA Are here with confirmed to comply with the requirements set out in...

  • Page 85: Globl Headaqarters

    QUICK REFERENCE GLOBL HEADAQARTERS GOOD WILL INSTRUMENT CO., LTD. No. 7-1, Jhongsing Road, Tucheng Dist., New Taipei City 236, Taiwan Tel: +886-2-2268-0389 Fax: +866-2-2268-0639 Web: www.gwinstek.com Email: marketing@goodwill.com.tw GOOD WILL INSTRUMENT (SUZHOU) CO., LTD. No. 521, Zhujiang Road, Snd, Suzhou Jiangsu 215011, China Tel: +86-512-6661-7177 Fax: +86-512-6661-7277 Web:...
