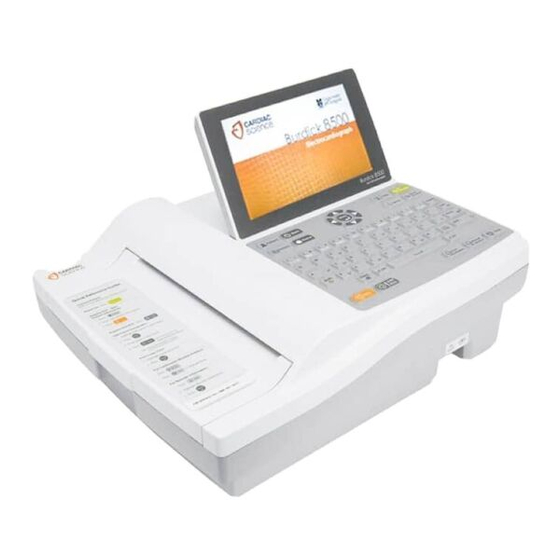

Cardiac Science Burdick 8300 Quick Steps

Connect Patient
Refer to User Manual for lead placement
Power On
On/
Press
Standby
Acquire ECG - New
Patient Information
1 - Press
Patient
2 - Enter new patient information
3 - Press
ECG
Acquire Stat ECG
Press
Add Patient Demographics
1 - Highlight Edit patient information
2 - Press Select
3 - Enter patient information
4 - Press twice to return to
Back
Patient Review menu
Note: Certain demographics changes prompt to
reanalyze and print
Print a copy of ECG
1 - Highlight Quick print ECG
2 - Press Select
For Continuous Rhythm Printout
Manual
Press
Rhythm
Press to stop printing
Stop
For Reorder information
1 - Press i
Help
2 - Highlight Reorder Information
Select
3 - Press
Technical Support
425.402.2000 option 1
800.426.0337 option 1 (USA)
techsupport@cardiacscience.com
http:/websupport.cardiacscience.com/webchat/
Outside the United States: Contact your local Cardiac Science representative
For more information see the User's Guide.
EC REP
MDDS GmbH, Schi graben 41, D-30175, Hannover, Germany
0086
70-00783-02 B
Quick Steps
!
STAT
ECG
Precordial Lead Positioning
V
V
2
1
V
3
V
Fourth intercostal space at right margin of sternum
1
V
Fourth intercostal space at left margin of sternum
2
V
Midway between position V2 and V4
3
V
Fifth intercostal space at junction of left midclavicular line
4
V
At horizontal level of position V4 at left midaxillary line
5
V
At horizontal level of position V4 at left anterior axillary line
6
Limb Lead Placement
RA
RL
V
6
V V
4 5
LA
RA Above inside right wrist
LA Above inside left wrist
RL Above inside right ankle
LL Above inside left ankle
LL
