Billy goat self-propelled vacuum chipper operator owner's manual
Hide thumbs Also See for Termite KD512SP:
Table of Contents

Advertisement

Quick Links

2
OPTIONAL ACCESSORIES
SHREDDER KIT
P/N 890209.
Shreds leaves, dramatically
reducing total volume, 12:1.
ON BOARD VACUUM
HOSE KIT
P/N 890041.
4"
x 7'
(102mm)
(2.13m)
For vacuuming in hard to
reach areas.
HOSE EXTENSION KIT
P/N 890045.
Kit contains a connector and a
clamp, Hose is not included.
NOZZLE WEAR PLATES
P/N 890413.
Extends nozzle life when
used along curbs and hard
surfaces.
STANDARD TURF PRO
DEBRIS BAG
P/N 890028.
Standard on TKD models. For
use in leaves and grass in non-
dusty conditions.
OPTIONAL DEBRIS BAGS
PRO FELT BAG
P/N 890023
For use in dusty conditions.
FELT BAG COVER
P/N 900801
Directs dust downward away from
operator.
ZIPPERLESS PRO BAG
P/N 890309
For non dusty conditions that
are damaging to zippers.
3
UNIT SIZE:
Part No. 890604
1
Operator Owner's Manual
ENGINE:H.P.
ENGINE:TYPE
ENGINE:FUEL CAP.
ENGINE:OIL CAP.
WEIGHT:UNIT
WEIGHT:SHIPPING
ENGINE WEIGHT:
OVERALL LENGTH: 62"(1.57m) OVERALL WIDTH 26.75" (0.68m)

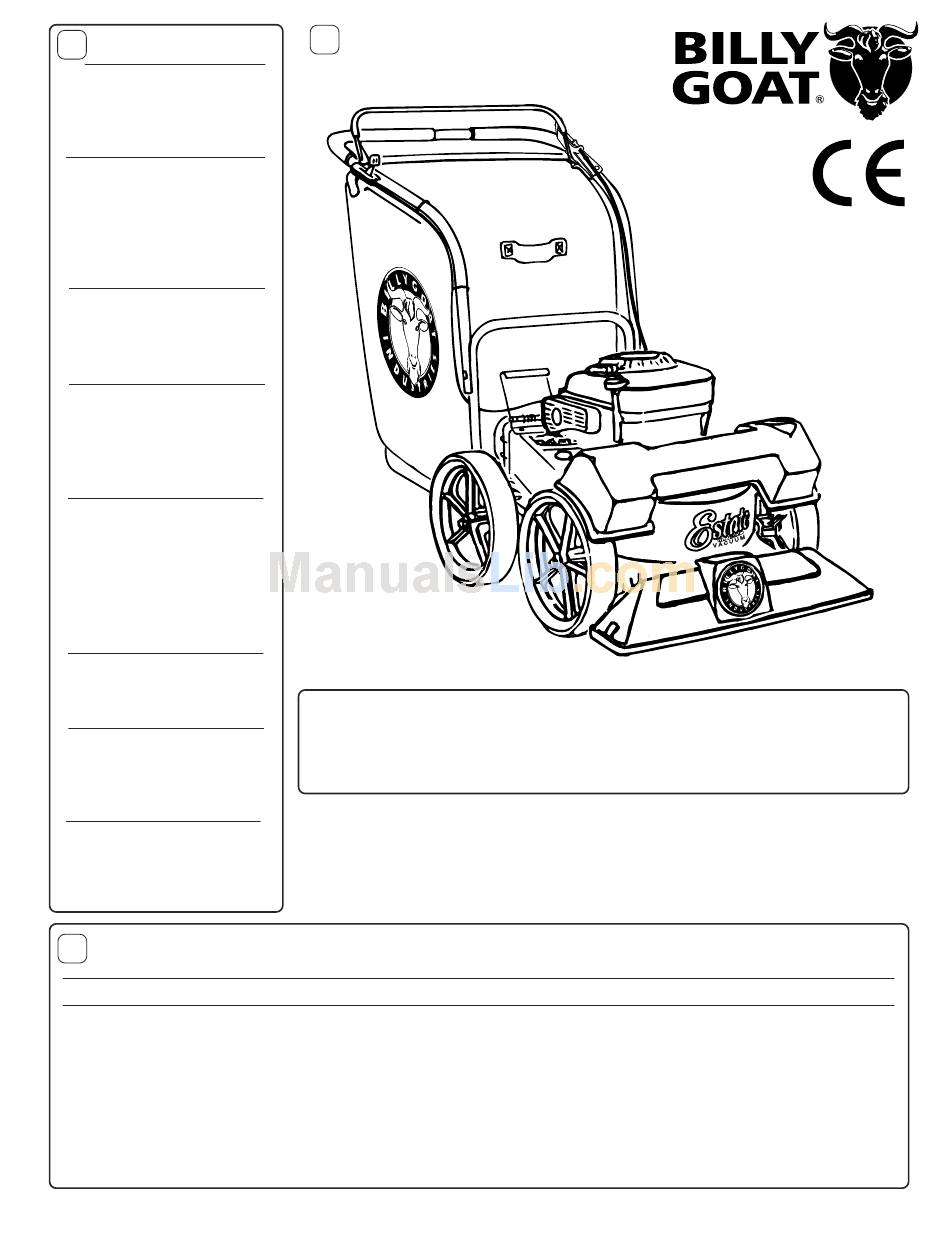

T h a n k Yo u f o r S e l e c t i n g
The Powerful KD or TKD TERMITE
SELF PROPELLED VACUUM CHIPPER
KD512SP, TKD512SP

Specifications

KD512SP
5.5 (4.1kW)
B&S DIAMOND I/C
1.5qt. (1.4L)
0.63qt. (0.6L)
117# (53.1 kg)
140# (63.5 kg)
26# (11.8 kg)
Page 1 of 12
TKD512SP
5.5 (4.1kW)
B&S DIAMOND I/C
1.5qt. (1.4L)
0.63qt. (0.6L)
133# (60.3 kg)
156# (70.8 kg)
26# (11.8 kg)
OVERALL HEIGHT 42" (1.07m)
®
Form No. F021602C
