Automotive Control (Ac) With Manual Override, Option A7 (12 V)/C2 (24 V) - Sauer Danfoss H1 Technical Information

Dimensions
(continued)
Control connector "CAN"
Deutsch DTM04-3P
Paint free
For using the connector
the plug may be removed
Control connector "CC1"
Deutsch DTM04-12P -A-
Paint free
Plug removing can cause
contamination issues
H1 Axial Piston Pump, Size 045/053, Single
Technical Information

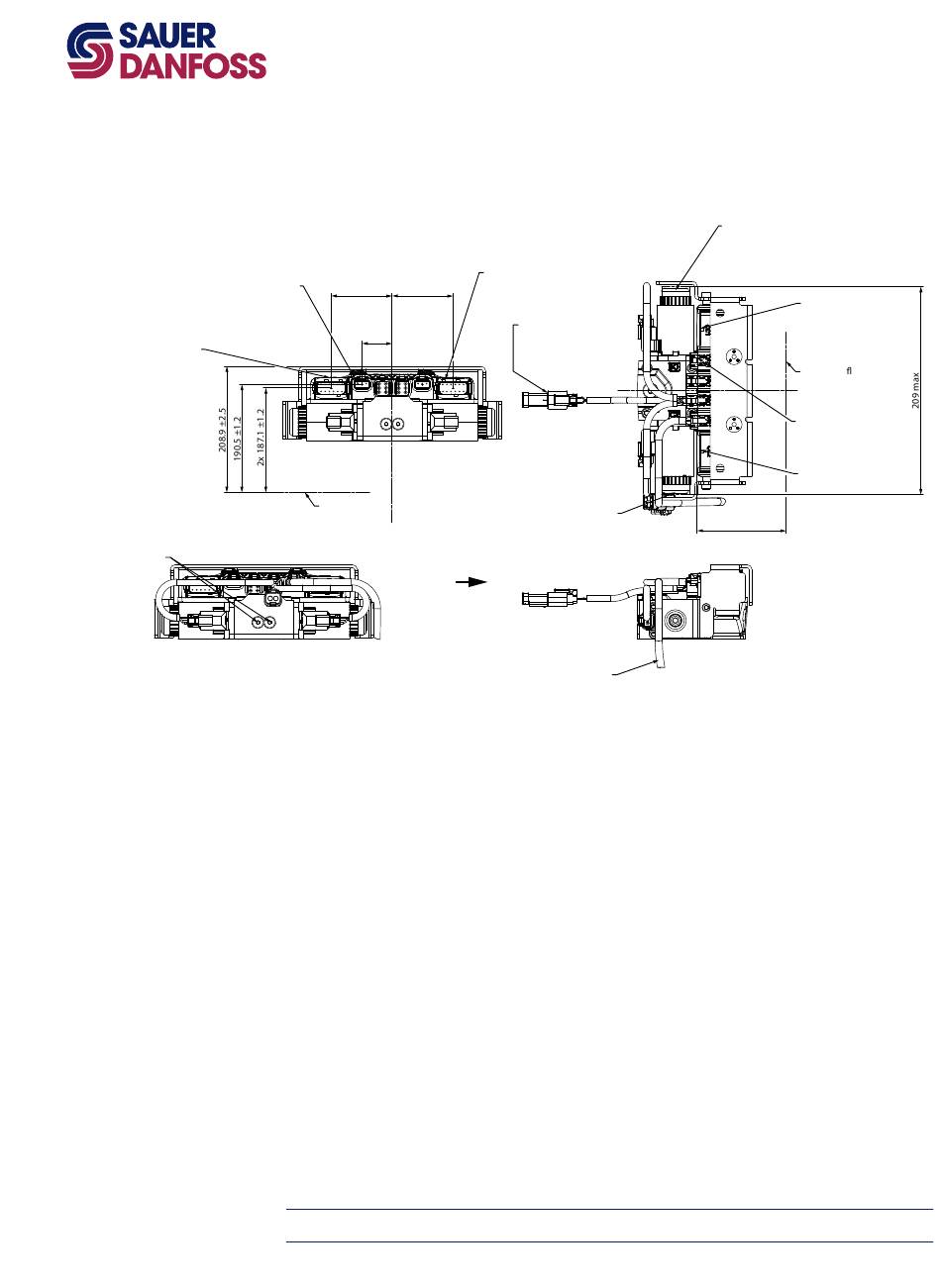

Installation Drawings
Controls
Automotive control (AC) with manual override,
option A7 (12 V)/C2 (24 V)
V
61.2 ±0.8 61.2 ±0.8
30.2 ±0.8
Shaft L
C
V
Please contact Sauer-Danfoss for specific installation drawings
11063344 • Rev EA • Dec 2012
Control connector "CC2"
Deutsch DTM04-12P -B-
Paint free
Control connector "CCC3"
Deutsch DT06-2S
Paint free
For using the connector
the plug may be removed
Control manual override "C2"
Depressing the plunger mechanically
moves the control spool. Actuation
allows full stroke pump response as
per coil and rotation dependent
control logic.
"PPU" wire harness
is factory installed to speed sensor
Control manual override "C1"
Depressing the plunger mechanically
moves the control spool. Actuation
allows full stroke pump response as
per coil and rotation dependent
control logic.
Control connector "CC1"
Deutsch DTM04-12P -A-
Paint free
Mounting ange
Control connector "CAN"
Deutsch DTM04-3P
Paint free
For using the connector
the plug may be removed
Control connector "CC2"
Deutsch DTM04-12P -B-
Paint free
89.2 ±0.8
P700 52 604
mm
37
