Displacement Limiter

H1 Axial Piston Pump, Size 045/053, Single
Technical Information
General Technical Specifications
H1 pumps are designed with optional mechanical displacement (stroke) limiters factory
set to max. displacement.
The maximum displacement of the pump can be set independently for forward and
reverse using the two adjustment screws to mechanically limit the travel of the servo
piston down to 50 % displacement. Adjustment procedures are found in the H1 pumps
Service Manual.
Adjustments under operating conditions may cause leakage. The adjustment screw can
be completely removed from the threaded bore if backed out to far.

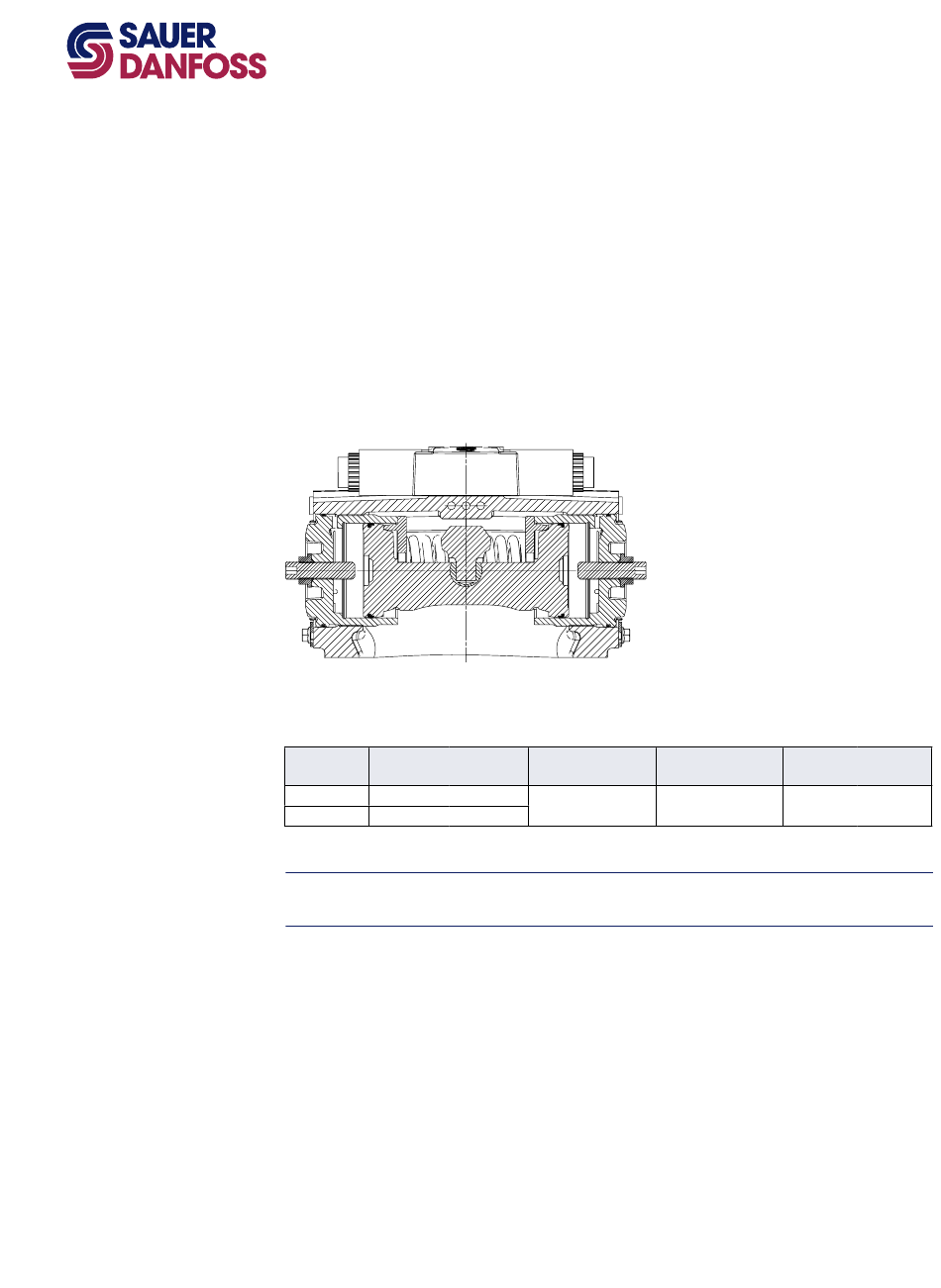

Displacement limiter
Displacement change (approximately)
1 Turn of displacement
Size
limiter screw
045 5.1 cm
3
053 6.0 cm
3
For more information refer to H1 pumps Service Manual 520L958, section Displacement
Limiter Adjustment.
11063344 • Rev EA • Dec 2012
P003 266
Internal
wrench size
[0.31 in ]
3
4 mm
[0.37 in ]
3
External Torque for external
wrench size hex seal lock nut
13 mm 23 Nm [204 lbf•in]
T000 181E
