Summary of Contents for Digital Projection E-Vision Laser WQ120 Series

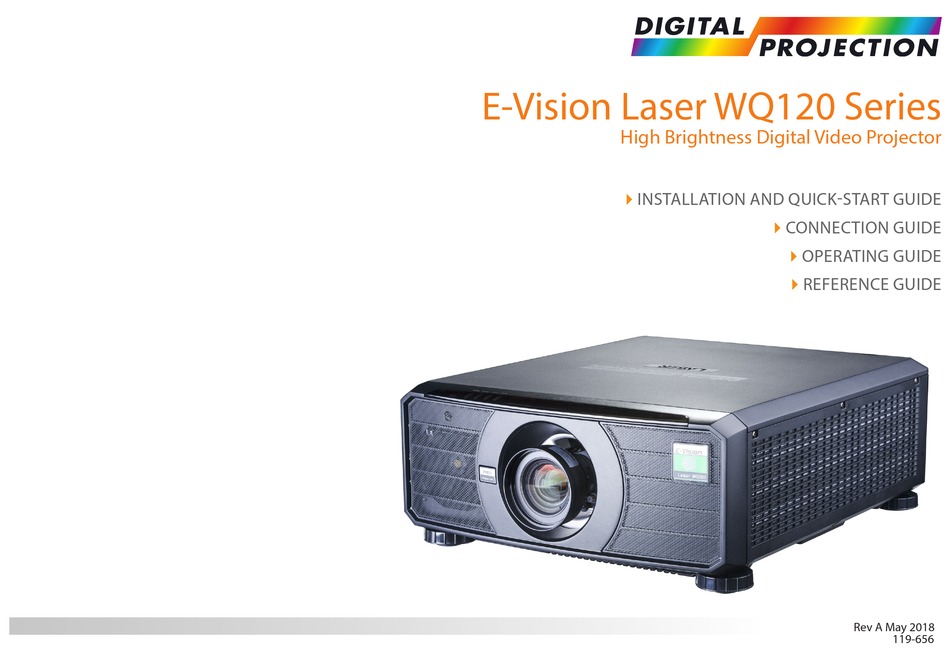

- Page 1 E-Vision Laser WQ120 Series High Brightness Digital Video Projector 4INSTALLATION AND QUICK-START GUIDE 4CONNECTION GUIDE 4OPERATING GUIDE 4REFERENCE GUIDE Rev A May 2018 119-656...
- Page 2 NOTE: this symbol indicates that there is some important information that you should read. Product revision Because we at Digital Projection continually strive to improve our products, we may change specifications and designs, and add new features without prior notice.
- Page 3 Digital Projection E-Vision Laser WQ120 Series Laser Information Notes LASER LIGHT AVOID DIRECT EYE EXPOSURE CLASS 3R LASER PRODUCT 455-470nm <13Watts CLASSIFIED EN/IEC 60825-1 2007 Caution - use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Optical radiation CAUTION: Do not look into the lens Caution - possibly hazardous optical radiation emitted from this product. Do not stare at operating light source. May be harmful to eyes.
- Page 4 Digital Projection E-Vision Laser WQ120 Series Introduction Notes Congratulations on your purchase of this Digital Projection product. Your projector has the following key features: • Displays WQXGA. • HDBaseT® for transmission of uncompressed High Definition Video up to 100 m from the source.
-
Page 5: Table Of Contents
Digital Projection E-Vision Laser WQ120 Series CONTENTS INSTALLATION AND QUICK - START GUIDE CONNECTION GUIDE ................19 ......1 SIGNAL INPUTS ................. 21 WHAT’S IN THE BOX? ..............3 Digital inputs and outputs ..............21 CONNECTING THE POWER SUPPLY ........... 4 EDID on the DisplayPort, HDMI and HDBaseT inputs ......22 Voltage selection ................... - Page 6 Digital Projection E-Vision Laser WQ120 Series CONTENTS (continued) OPERATING GUIDE ..................51 ................27 Clock Adjust ..................52 OSD Settings USING THE MENUS ..............29 ..................... 52 Memory Opening the OSD ................29 Network menu ..................53 Opening a menu.................. 29 Information menu ................
-
Page 7: Installation And Quick-Start Guide
E-Vision Laser WQ120 Series High Brightness Digital Video Projector INSTALLATION AND QUICK-START GUIDE Rev A May 2018... - Page 8 Digital Projection E-Vision Laser WQ120 Series CONTENTS CONTENTS OPERATING THE PROJECTOR .............15 WHAT’S IN THE BOX? ................3 SWITCHING THE PROJECTOR ON ..........15 SWITCHING THE PROJECTOR OFF .......... 15 SELECTING AN INPUT SIGNAL ..........16 CONNECTING THE POWER SUPPLY ..........4 SELECTING A TEST PATTERN ..........
-
Page 9: What's In The Box
Digital Projection E-Vision Laser WQ120 Series WHAT’S IN THE BOX? What’s In The Box? Notes Make sure your box contains everything listed. If any pieces are missing, contact your dealer. You should save the original box and packing materials, in case you ever need to ship your projector. -
Page 10: Connecting The Power Supply
Digital Projection E-Vision Laser WQ120 Series CONNECTING THE POWER SUPPLY Connecting The Power Supply Notes Adjust the VOLTAGE SELECT switch to the required voltage, then firmly push the mains connector into the socket Use only the power cable provided. Ensure that the power outlet includes a ground connection as this equipment MUST be earthed. -
Page 11: Projector Overview
Digital Projection E-Vision Laser WQ120 Series PROJECTOR OVERVIEW Projector Overview Notes Front and rear views Air inlet Front infrared window and indicators Air inlet Lens mount Front view Rear infrared window Air outlet Connections panel Control panel Adjustable feet Voltage selector... -
Page 12: Control Panel
Digital Projection E-Vision Laser WQ120 Series PROJECTOR OVERVIEW Control panel Notes POWER Switches the projector on and off (STANDBY). INPUT Switches to the next input source. AUTO CENTER POWER INPUT ASPECT PIC MUTE AUTO SYNC SYNC LENS Re-synchronises with the current input signal. -
Page 13: Projector Indicators
Digital Projection E-Vision Laser WQ120 Series PROJECTOR OVERVIEW Projector indicators Notes TEMP. Off = no problem Flashing red = temperature error LIGHT Off = light is switched off Flashing green = light is preparing to switch on Flashing red (cycles of six flashes) = light module failure... -
Page 14: Remote Control
Digital Projection E-Vision Laser WQ120 Series REMOTE CONTROL Remote Control Notes Power ON / OFF This projector does not use the Turns power on and off. following options on the remote: DVI, VGA, COMP 1, COMP 2, Pic Mute OPEN / CLOSE... - Page 15 Digital Projection E-Vision Laser WQ120 Series REMOTE CONTROL EXIT INFO Notes FREEZE RE-SYNC LENS adjustment adjust focus. FOCUS IN / OUT: This projector does not use the press and hold this button, then use the Navigation arrow SHIFT: following options on the remote: buttons to move the lens.
- Page 16 MENU DEFAULT Digital Projection E-Vision Laser WQ120 Series REMOTE CONTROL Notes DISPLAYPORT 1 / R / numeric input 4 Select DisplayPort 1 input. This projector does not use the following options on the remote: HD-T / G / numeric input 5 Select the HDBaseT input.
-
Page 17: Infrared Reception
Digital Projection E-Vision Laser WQ120 Series REMOTE CONTROL Infrared reception Notes 40° The projector has infrared sensors at the front and back. The angle of acceptance is 40°. Make sure that the remote control is within the angle of acceptance when trying to control the projector. -
Page 18: Positioning The Screen And Projector
Digital Projection E-Vision Laser WQ120 Series POSITIONING THE SCREEN AND PROJECTOR Positioning The Screen And Projector Notes Install the screen, ensuring that it is in the best position for viewing by your audience. Mount the projector, ensuring that it is at a suitable distance from the screen for the image to fill the screen. Set the adjustable feet so that Always allow the projector the projector is level, and perpendicular to the screen. -
Page 19: Roll And Pitch
Digital Projection E-Vision Laser WQ120 Series POSITIONING THE SCREEN AND PROJECTOR Roll and pitch Notes The projector can be operated in numerous positions. In portrait mode, it is recommended to position the projector with inputs facing upward, as shown in the diagram. -
Page 20: Changing The Lens
Digital Projection E-Vision Laser WQ120 Series CHANGING THE LENS Changing The Lens Notes Inserting a new lens Before changing the lens, always make sure the projector Remove the front and rear lens caps. is switched off and fully disconnected from its power supply. When changing the lens, avoid using excessive force as this may damage the equipment. -
Page 21: Operating The Projector
Digital Projection E-Vision Laser WQ120 Series OPERATING THE PROJECTOR Operating The Projector Notes Switching the projector on Connecting The Power See also Ensure a lens is fitted. Connect the power cable between the mains supply and the projector. (See Connecting the power supply Supply earlier in this guide. -
Page 22: Selecting An Input Signal
Digital Projection E-Vision Laser WQ120 Series OPERATING THE PROJECTOR Selecting an input signal Notes Connect one or more image sources to the projector. Select the input you want to display: For full details of how to use the • controls and the menu system, see Press one of the input buttons on the remote control. -
Page 23: Adjusting The Lens
Digital Projection E-Vision Laser WQ120 Series OPERATING THE PROJECTOR Adjusting the lens Notes The lens can be adjusted using the menu, or using the lens buttons on the remote control. Lens Lens menu menu provides access to the setting and the command. - Page 24 Digital Projection E-Vision Laser WQ120 Series This page is intentionally left blank. Installation and Quick-Start Guide...
-
Page 25: Connection Guide
E-Vision Laser WQ120 Series High Brightness Digital Video Projector CONNECTION GUIDE Rev A May 2018... - Page 26 Digital Projection E-Vision Laser WQ120 Series CONTENTS CONTENTS SIGNAL INPUTS ..................21 DIGITAL INPUTS AND OUTPUTS ..........21 EDID ON THE DISPLAYPORT, HDMI AND HDBASET INPUTS .. 22 USING DISPLAYPORT/HDMI/HDBASET SWITCHERS WITH THE PROJECTOR ................22 CONTROL CONNECTIONS ...............23 LAN CONNECTION EXAMPLES ..........24 RS232 CONNECTION EXAMPLE ............
-
Page 27: Signal Inputs
Digital Projection E-Vision Laser WQ120 Series SIGNAL INPUTS Signal Inputs Notes Digital inputs and outputs For simultaneous HDBaseT and HDBaseT LAN connectivity, a third-party distribution product can be utilised Receives digital signal from HDBaseT-compliant devices. to combine HDBaseT video stream... -
Page 28: Edid On The Displayport, Hdmi And Hdbaset Inputs
Digital Projection E-Vision Laser WQ120 Series SIGNAL INPUTS EDID on the DisplayPort, HDMI and HDBaseT inputs Notes If you are using a computer graphics card or another source that obeys the EDID protocol, the source will automatically configure itself to suit the capability of the projector. -
Page 29: Control Connections
Control Connections Notes HDBaseT/LAN For a list of all commands used to The projector’s features can be controlled via a LAN connection, using Digital Projection’s Projector Controller application or a control the projector via LAN, see terminal-emulation program. the Protocol Guide. -
Page 30: Lan Connection Examples
CONTROL CONNECTIONS LAN connection examples Notes The projector’s features can be controlled via a LAN connection, using Digital Projection’s Projector Controller application or a terminal- emulation program With a LAN connection the projector can serve a web page offering basic projector controls. -
Page 31: Rs232 Connection Example
Digital Projection E-Vision Laser WQ120 Series CONTROL CONNECTIONS RS232 connection example Notes All of the projector’s features can be controlled via a serial connection, using commands described in the Protocol Guide. The Protocol Guide is available separately. Straight- through cable... - Page 32 Digital Projection E-Vision Laser WQ120 Series This page is intentionally left blank. Connection Guide...
-
Page 33: Operating Guide
E-Vision Laser WQ120 Series High Brightness Digital Video Projector OPERATING GUIDE Rev A May 2018... - Page 34 Digital Projection E-Vision Laser WQ120 Series CONTENTS CONTENTS SETUP MENU ................47 ColorMax ..................... 49 USING THE MENUS ................29 Power On/Off ..................50 OPENING THE OSD ..............29 Clock Adjust ..................51 OSD Settings ..................52 OPENING A MENU ..............29 Memory ....................
-
Page 35: Using The Menus
Digital Projection E-Vision Laser WQ120 Series USING THE MENUS Using The Menus Notes Opening the OSD Access the various menus using either the projector control panel or Pic Mute the remote control. On either device, OPEN CLOSE • press the button. -
Page 36: Inside A Menu
Digital Projection E-Vision Laser WQ120 Series USING THE MENUS Inside a menu Notes Menu Name When you open a menu, the page consists of the following elements: Highlighted Item Value • Title bar at the top The highlighted item has green... -
Page 37: Editing Projector Settings
Digital Projection E-Vision Laser WQ120 Series USING THE MENUS Editing projector settings Notes Menu Name If the highlighted menu item contains a list of values to choose from, you can change the value by doing the following: Highlighted Item Current Value... -
Page 38: Using The Projector
Digital Projection E-Vision Laser WQ120 Series USING THE PROJECTOR Using The Projector Notes Main menu Signal Inputs in the • Main Menu Input Connection Guide for further Press to open the list of available inputs. ENTER/OK information about the available... -
Page 39: Lens Menu
Digital Projection E-Vision Laser WQ120 Series USING THE PROJECTOR Lens menu Notes Lens • Lens Lock Lens Lock When this feature is , all other menu items are disabled. Lens Lens Control • Lens Control Center Lens Opens a sub-menu, see below. -
Page 40: Lens Memory
Digital Projection E-Vision Laser WQ120 Series USING THE PROJECTOR Lens menu continued from previous page Notes Lens Memory Lens Memory This menu allows you to load, save and delete up to ten lens presets, containing position, zoom, focus and shift adjustment information. -
Page 41: Image Menu
Digital Projection E-Vision Laser WQ120 Series USING THE PROJECTOR Image menu Notes Image • Smear Reduction Smear Reduction This is used to improve the clarity of fast moving image content. Gamma Set to for fast content. • Brightness Gamma Contrast Choose a de-gamma curve from 2.35... -
Page 42: Color Menu
Digital Projection E-Vision Laser WQ120 Series USING THE PROJECTOR Color menu Notes Color Color Space Auto Color Space Color Mode ColorMax In most cases, the setting determines the correct colorspace to use. If it does not, Auto ColorMax Peak you can choose a specific colorspace:... -
Page 43: Color Mode
Digital Projection E-Vision Laser WQ120 Series USING THE PROJECTOR Color Mode Notes Color The projector can work in the following color modes: ColorMax Manual Color Matching Color Temperature Gains and Lifts Color Space Auto Only one color mode can be... - Page 44 Digital Projection E-Vision Laser WQ120 Series USING THE PROJECTOR Color menu continued from previous page Notes Manual Color Matching Manual Color Matching Color Mode Manual Color Auto Test Pattern Matching Open the Manual Color Matching submenu. Green Blue For more details about the...
- Page 45 Digital Projection E-Vision Laser WQ120 Series USING THE PROJECTOR Color menu continued from previous page Notes Color matching parameters explained The levels of hue, saturation and gain in the menu change the Manual Color Matching color values in the following ways:...
- Page 46 Digital Projection E-Vision Laser WQ120 Series USING THE PROJECTOR Color menu continued from previous page Notes Color Temperature Color Color Mode Color Temperature Color Space Auto Navigate to the setting. Choose a value from (warmer) Color Temperature 3200K Color Mode...
- Page 47 Digital Projection E-Vision Laser WQ120 Series USING THE PROJECTOR Color menu continued from previous page Notes Gains and Lifts Gains and Lifts Lifts allow you to adjust black levels of individual colors, while gains adjust the bright part of the scale.
-
Page 48: Geometry Menu
Digital Projection E-Vision Laser WQ120 Series USING THE PROJECTOR Geometry menu Notes Geometry This menu allows you to compensate for image distortions caused by an unusual projection Aspect Ratio Source angle or irregular screen surface. Digital Zoom Overscan Aspect Ratio This feature defines the aspect ratio of the source. - Page 49 Digital Projection E-Vision Laser WQ120 Series USING THE PROJECTOR Theaterscope setting Notes setting is used in combination with an anamorphic lens to restore 2.35:1 images packed into a 16:9 frame. Such images TheaterScope are projected with black lines at the top and bottom of the 16:9 screen to make up for the difference in aspect ratios.
-
Page 50: Digital Zoom
Digital Projection E-Vision Laser WQ120 Series USING THE PROJECTOR .Geometry menu continued from previous page Notes Digital Zoom Digital Zoom Digital zooming enlarges a section of the image, while the area outside the enlarged Digital Zoom is a temporary setting section is cropped out to preserve the overall image size. -
Page 51: Overscan
Digital Projection E-Vision Laser WQ120 Series USING THE PROJECTOR Geometry menu continued from previous page Notes Overscan Geometry Use this setting to compensate for noisy or badly defined image edges. Aspect Ratio Source removes unwanted artifacts from the edges of your image by cropping the edges. -
Page 52: Laser Menu
Digital Projection E-Vision Laser WQ120 Series USING THE PROJECTOR Laser menu Notes Laser Power Mode Normal • Power Mode Power Level — — — — • will automatically set the laser power to 80%. Constant Brightness • will set the power to 100%. -
Page 53: Setup Menu
Clock Adjust Access the submenu to set current date and local time. • Startup Logo Set this to if you want the Digital Projection logo to show when the projector is first switched on. • Blank Screen Choose from Logo... - Page 54 Digital Projection E-Vision Laser WQ120 Series USING THE PROJECTOR Setup menu continued from previous page Notes • Setup Trigger1 Trigger 2 Choose from Screen 16:10 16:9 1.88 2.35 TheaterScope Source to determine what will cause each trigger output to activate.
-
Page 55: Colormax
Digital Projection E-Vision Laser WQ120 Series USING THE PROJECTOR Setup menu continued from previous page Notes ColorMax ColorMax permits seven point color ColorMax matching of red, green, blue, yellow, Measured Data cyan, magenta and white. Target Data – User 1... -
Page 56: Power On/Off
Digital Projection E-Vision Laser WQ120 Series USING THE PROJECTOR Setup menu continued from previous page Notes Power On/Off Power On/Off Management • Auto Power Off Auto Power Off Set this to On if you want the projector to go into STANDBY mode when no input source is detected for 20 minutes. -
Page 57: Clock Adjust
Digital Projection E-Vision Laser WQ120 Series USING THE PROJECTOR Setup menu continued from previous page Notes Notes Clock Adjust Clock Adjust Use this menu to set date (in format), time (in format) and time dd:MM:yyyy HH:mm zone. Date (dd:MM:yyyy) 30:11:2017... -
Page 58: Osd Settings
Digital Projection E-Vision Laser WQ120 Series USING THE PROJECTOR Setup menu continued from previous page Notes OSD Settings OSD Settings • sets the OSD language. Language Language English • determines where the OSD should appear on the screen when Menu Position... -
Page 59: Network Menu
Digital Projection E-Vision Laser WQ120 Series USING THE PROJECTOR Network menu Notes Network • DHCP Subnet Mask Gateway DHCP DHCP if the IP address is to be assigned by a DHCP server, or if it is to 192 . 168 . 000 . 100 be set here. -
Page 60: Information Menu
Digital Projection E-Vision Laser WQ120 Series USING THE PROJECTOR Information menu Notes Information This menu gives information about software and hardware configuration, input source and laser operating times It also allows you to restore the factory default settings. Model Name... -
Page 61: System Status
Digital Projection E-Vision Laser WQ120 Series USING THE PROJECTOR Information menu continued from previous page Notes System Status System Status Atmospheric Pressure 98988 Pa (116 m) AC Voltage 160V – 264V Ceiling Mode TableTop Tilt Angle 4 deg Portrait Angle... -
Page 62: Factory Reset
Digital Projection E-Vision Laser WQ120 Series USING THE PROJECTOR Information menu continued from previous page Notes Factory reset does not reset the Factory Reset Information Network settings, or High Altitude To restore the factory default settings: mode. Model Name E-Vision Laser 8500... -
Page 63: Served Web Pages
Digital Projection E-Vision Laser WQ120 Series SERVED WEB PAGES Served Web Pages Notes The served web pages allow you to control the projector remotely via LAN. The default IP address is 192.168.0.100. Projector Status Projector Information Projector Control Model E-Vision Laser WQ120... - Page 64 Digital Projection E-Vision Laser WQ120 Series SERVED WEB PAGES Notes Projector Status State Control Projector Control Power Crestron RoomView Input Selection Network Setup DisplayPort HDMI 1 HDMI 2 HDBaseT Alert Mail Setup 3G-SDI Date/Time Setup Error Log Lens Control DP OSD Function...
- Page 65 Digital Projection E-Vision Laser WQ120 Series SERVED WEB PAGES Notes Projector Status NetWork Projector Control DHCP: Crestron . 168 . 100 IP Address: RoomView . 255 . 255 Subnet Mask: Network Setup . 168 . 254 Gateway: Alert Mail Setup .
- Page 66 Digital Projection E-Vision Laser WQ120 Series SERVED WEB PAGES Notes Projector Status Server Setup Projector Control SMTP Server: Port: 25 User Name: Crestron RoomView Password: Network Setup Apply Alert Mail Setup Mail Date/Time Setup Enable Disable E-mail Alert: Error Log...
- Page 67 Digital Projection E-Vision Laser WQ120 Series SERVED WEB PAGES Notes Projector Status Time Zone: Projector Control Time Zone: UTC(-11:00) Crestron Select Local time zone, Current zone is UTC -1:00 RoomView SaveTimeZone Network Setup Alert Mail Setup Time: Date/Time Setup Date: e.g.2000.01.01...
- Page 68 Digital Projection E-Vision Laser WQ120 Series SERVED WEB PAGES Notes Projector Status Projector Error Log Projector Control ErrLog: 42 / Current PowerOn times: 341 Crestron RoomView No Code PwrOn L1(Hr/Pwr) T(Ti/Tc) Desc 0404 321 27/35 24/26 ErrLaserLitFail Network Setup 0404 319...
- Page 69 Digital Projection E-Vision Laser WQ120 Series SERVED WEB PAGES Notes Page 1 Page 2 Page 3 Projector Status Input Projector Control Crestron Input HDMI1 RoomView Network Setup Test Pattern Alert Mail Setup Date/Time Setup Error Log Exit Test Pattern DP OSD Function...
- Page 70 Digital Projection E-Vision Laser WQ120 Series SERVED WEB PAGES Notes Page 1 Page 2 Page 3 Projector Status geometry Projector Control Crestron Aspect Ratio Source RoomView Overscan Off Network Setup laser Alert Mail Setup Date/Time Setup Power Mode Custom Error Log...
- Page 71 Digital Projection E-Vision Laser WQ120 Series SERVED WEB PAGES Notes Page 1 Page 2 Page 3 Projector Status setup Projector Control Crestron Orientation Auto-front RoomView Cooling Condition Auto High Altitude Auto Network Setup Standby Mode SuperECO( < 0.5W, No Lan access)
- Page 72 Digital Projection E-Vision Laser WQ120 Series SERVED WEB PAGES Notes Rev A May 2018 Operating Guide page 66...
- Page 73 E-Vision Laser WQ120 Series High Brightness Digital Video Projector Reference Guide Rev A May 2018...
- Page 74 Digital Projection E-Vision Laser WQ120 Series CONTENTS CONTENTS APPENDIX D: GLOSSARY OF TERMS ........85 CHOOSING A LENS ................69 BASIC CALCULATION ............... 70 BASIC CALCULATION EXAMPLE ..........71 FULL LENS CALCULATION ............72 Introducing TRC .................. 72 Calculating TRC .................. 73 Calculating the throw ratio with TRC ...........
-
Page 75: Choosing A Lens
Digital Projection E-Vision Laser WQ120 Series CHOOSING A LENS Choosing A Lens Notes Throw distance calculations are A number of lenses are available. Which lens you choose depends on the screen size, image aspect ratio, throw distance and light output. -
Page 76: Basic Calculation
Digital Projection E-Vision Laser WQ120 Series CHOOSING A LENS Basic calculation Notes Identify the required lens by calculating the throw ratio. A throw ratio is the ratio of the throw distance to the screen width: The lens table shown on this page... -
Page 77: Basic Calculation Example
Digital Projection E-Vision Laser WQ120 Series CHOOSING A LENS Basic calculation example Notes Calculate the throw ratio using the formula. The lens table shown on this page INFORMATION YOU NEED FOR THIS CALCULATION includes High Brightness lenses Your screen is 4.5 m wide and you wish to place the projector only. -
Page 78: Full Lens Calculation
Digital Projection E-Vision Laser WQ120 Series CHOOSING A LENS Full lens calculation Notes Introducing TRC The choice of lens will affect the image size and will address discrepancies between the TRC can only be applied if greater DMD™ resolution and the source. -
Page 79: Calculating Trc
Digital Projection E-Vision Laser WQ120 Series CHOOSING A LENS Calculating TRC Notes To calculate TRC, use the following formula: TRC = 1.60 (DMD™ aspect ratio) TRC can only be applied if greater Source aspect ratio than 1. If TRC is 1 or less, disregard... -
Page 80: Calculating The Throw Ratio With Trc
Digital Projection E-Vision Laser WQ120 Series CHOOSING A LENS Calculating the throw ratio with TRC Notes For TRC > 1, amend the basic throw ratio formula as follows: Throw ratio = Throw distance The lens table shown on this page... -
Page 81: Full Lens Calculation Example
Digital Projection E-Vision Laser WQ120 Series CHOOSING A LENS Full lens calculation example Notes INFORMATION YOU NEED FOR THESE CALCULATIONS Your screen is 4.5 m wide; you wish to place the projector The lens table shown on this page approximately 11 m from the screen. The source is 4:3. -
Page 82: Positioning The Image
Digital Projection E-Vision Laser WQ120 Series POSITIONING THE IMAGE Positioning The Image Notes The normal position for the projector is at the centre of the screen. However, you can set the projector above or below the centre, or to one side, and adjust the image using the Lens shift feature (known as rising and falling front) to maintain a geometrically correct image. - Page 83 Digital Projection E-Vision Laser WQ120 Series POSITIONING THE IMAGE Notes Any single adjustment outside the ranges specified on the following page may result in an unacceptable level of distortion, particularly at the corners of the image, due to the image passing through the periphery of the lens optics.
-
Page 84: Appendix A: Lens Part Numbers
Digital Projection E-Vision Laser WQ120 Series APPENDIX A: LENS PART NUMBERS Appendix A: Lens Part Numbers Notes High Brightness Part number Throw ratio Focus range Lens shift Throw distance calculations are or High Contrast? (High Brightness) based on the distance from the outer 0.79 - 0.99 : 1 zoom High Contrast... -
Page 85: Appendix B: Supported Signal Input Modes
Digital Projection E-Vision Laser WQ120 Series APPENDIX B: SUPPORTED SIGNAL INPUT MODES Appendix B: Supported Signal Input Modes Notes 2D formats HDMI / HD-BaseT 640x480 59.94 640x480 74.99 640x480 800x600 60.32 800x600 800x600 85.06 848x480 47.95 848x480 59.94 1024*768 1024*768... - Page 86 Digital Projection E-Vision Laser WQ120 Series APPENDIX B: SUPPORTED SIGNAL INPUT MODES Notes HDMI / HD-BaseT 1400X1050 1366 x 768 1440 x 900 1280 x 768 1280 x 800 (continued) 1280 x 960 2560 x1600 2560 x1600 640x480 66.59 Apple Mac 832x624 74.54...
- Page 87 Digital Projection E-Vision Laser WQ120 Series APPENDIX B: SUPPORTED SIGNAL INPUT MODES Notes HDMI / HD-BaseT HDBaseT supports 4K 24/25/30Hz 4:2:2 only 1080p HDBaseT supports 4K 50/60Hz 1080p 4:2:0 only 1080p 29.97 1080p HDMI 1,2 support up to 4:2:2, 1080p...
-
Page 88: Sdi Formats
Digital Projection E-Vision Laser WQ120 Series APPENDIX B: SUPPORTED SIGNAL INPUT MODES SDI formats Notes SDI Link Color Sampling Timing Signal Standards Remark mode Encode Structure Depth NTSC SMPTE 259M-C YCbCr 4:2:2 128M 270Mbps SD SMPTE 259M-C YCbCr 4:2:2 128M... -
Page 89: Appendix C: Wiring Details
Digital Projection E-Vision Laser WQ120 Series APPENDIX C: WIRING DETAILS Appendix C: Wiring Details Notes RS232 9 way D-type connector 1 unused 2 Transmitted Data (TX) RS232: 3 Received Data (RX) pin view of female connector 4 unused 5 Signal Ground... -
Page 90: Trigger 1 & Trigger 2
Digital Projection E-Vision Laser WQ120 Series APPENDIX C: WIRING DETAILS Trigger 1 & Trigger 2 Notes Sleeve 3.5 mm mini jack Trigger Ring Not connected Sleeve Ground Ring Output: 12V, 200 mA max Wired remote control Sleeve 3.5 mm mini jack... -
Page 91: Appendix D: Glossary Of Terms
Digital Projection E-Vision Laser WQ120 Series APPENDIX D: GLOSSARY OF TERMS Appendix D: Glossary Of Terms Notes 1080p HDTV resolution which corresponds to 1920 x 1080 pixels (a widescreen aspect ratio of 16:9). Anamorphic lens A special lens which, when used with the TheaterScope aspect ratio, allows watching 2.35:1 content packed in a 16:9 source. - Page 92 Digital Projection E-Vision Laser WQ120 Series APPENDIX D: GLOSSARY OF TERMS Notes See Chrominance. Chrominance Also known as ‘C’, this is the component, or pair of components, of a Component Video signal which describes color difference information. Color difference signals, the difference between specified colors and the component.
- Page 93 Digital Projection E-Vision Laser WQ120 Series APPENDIX D: GLOSSARY OF TERMS Cr, Cb Notes Color difference signals used with ‘Y’ for digital Component Video inputs. They provide information about the signal color. Not to be confused with Crop Remove part of the projected image.
- Page 94 Digital Projection E-Vision Laser WQ120 Series APPENDIX D: GLOSSARY OF TERMS EDID (Extended Display Identification Data) Notes Information stored in the projector that can be read by the source. EDID is used on the HDMI, DVI and VGA inputs, allowing the source to automatically configure to the optimum display settings.
- Page 95 Digital Projection E-Vision Laser WQ120 Series APPENDIX D: GLOSSARY OF TERMS HDCP (High-bandwidth Digital Content Protection) Notes An encryption scheme used to protect video content. HDTV (High Definition Television) A television system with a higher resolution than SDTV and EDTV. It can be transmitted in various formats, notably 1080p and 720p.
- Page 96 Digital Projection E-Vision Laser WQ120 Series APPENDIX D: GLOSSARY OF TERMS Letterboxing Notes Black margins at the top and bottom of the image. Letterboxing appears when a wider image is packed into a narrower frame without changing the original aspect ratio.
- Page 97 Digital Projection E-Vision Laser WQ120 Series APPENDIX D: GLOSSARY OF TERMS Pixel Notes Short for Picture Element. The most basic unit of an image. Pixels are arranged in lines and columns. Each pixel corresponds to a micromirror within the DMD™; resolutions reflect the number of pixels per line by the number of lines. For example, a...
- Page 98 Digital Projection E-Vision Laser WQ120 Series APPENDIX D: GLOSSARY OF TERMS Saturation Notes The amount of color in an image. Scope aspect ratio of 2.35:1. SDTV (Standard Definition Television) television system with a lower than HDTV. For signals, the resolution is 576i; for it is 480i.
- Page 99 Digital Projection E-Vision Laser WQ120 Series APPENDIX D: GLOSSARY OF TERMS TRC (Throw ratio correction) Notes A special number used in calculating throw distances throw ratios when the image does not fill the width of the DMD™. TRC is the ratio of the to the image source aspect ratio: DMD™...
- Page 100 Shi Ao International Center (+65) 6284-1238 (+44) 161 947 3300 powerinfo@digitalprojection.com Chaoyang District (+44) 161 684 7674 www.digitalprojection.com www.digitalprojectionasia.com Beijing 100029, PR CHINA enquiries@digitalprojection.co.uk (+86) 10 84888566 service@digitalprojection.co.uk (+86) 10 84888566-805 www.digitalprojection.co.uk techsupport@dp-china.com.cn www.dp-china.com.cn 119-656 E-Vision Laser WQ120 Series User Manual...
