u-blox EVK-NINA-W13 Quick Start

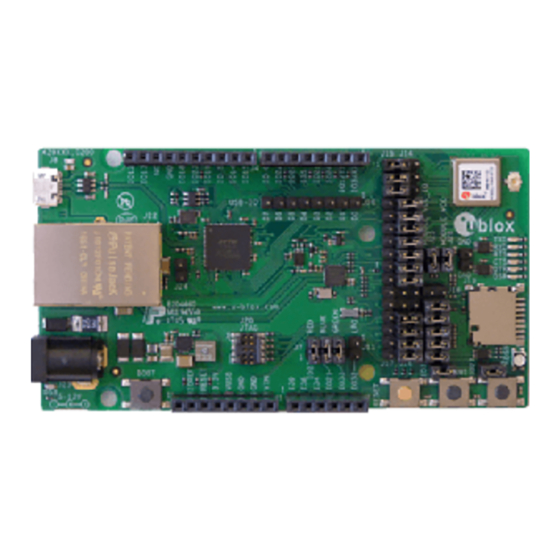

Quick Start EVK-NINA-W13

USB connector

UBX-17046097 - R01

NINA-W13 module

Reset button

U.FL connector

UART indication

LEDs

RGB LED

2. Software installation

To download the s-center evaluation soft-

ware, an internet connection is required.

Supported Windows operating systems:

Vista, 7, 8, and 10.

1. Download the s-center software.

2. Run the s-center.exe file and follow

the installer instructions.

3. When the installation is complete, you

will find the s-center menu under the

Windows Start button,

All Programs > u-blox

4. In the s-center menu, you will find the

s-center application, user guide and

uninstall options.

Table of Contents

Do you have a question about the EVK-NINA-W13 and is the answer not in the manual?

Page 1 Quick Start EVK-NINA-W13 1. Overview 2. Software installation NINA-W13 module USB connector To download the s-center evaluation soft- ware, an internet connection is required. Supported Windows operating systems: Vista, 7, 8, and 10. 1. Download the s-center software. 2. Run the s-center.exe file and follow the installer instructions.
Page 2 3. Driver installation 4. Interfaces Download the EVK-NINA-W13 software The EVK-NINA-W13 includes a USB cable (and documentation) from for communication and powering the www.u-blox.com/evk-downloads evaluation board. 1. For EVK variants having an external EVK-NINA-W131 includes an external an- antenna, attach the antenna to the tenna and an antenna cable to connect antenna cable and connect to the U.FL...
