Electrical Installation
2.1
UD70

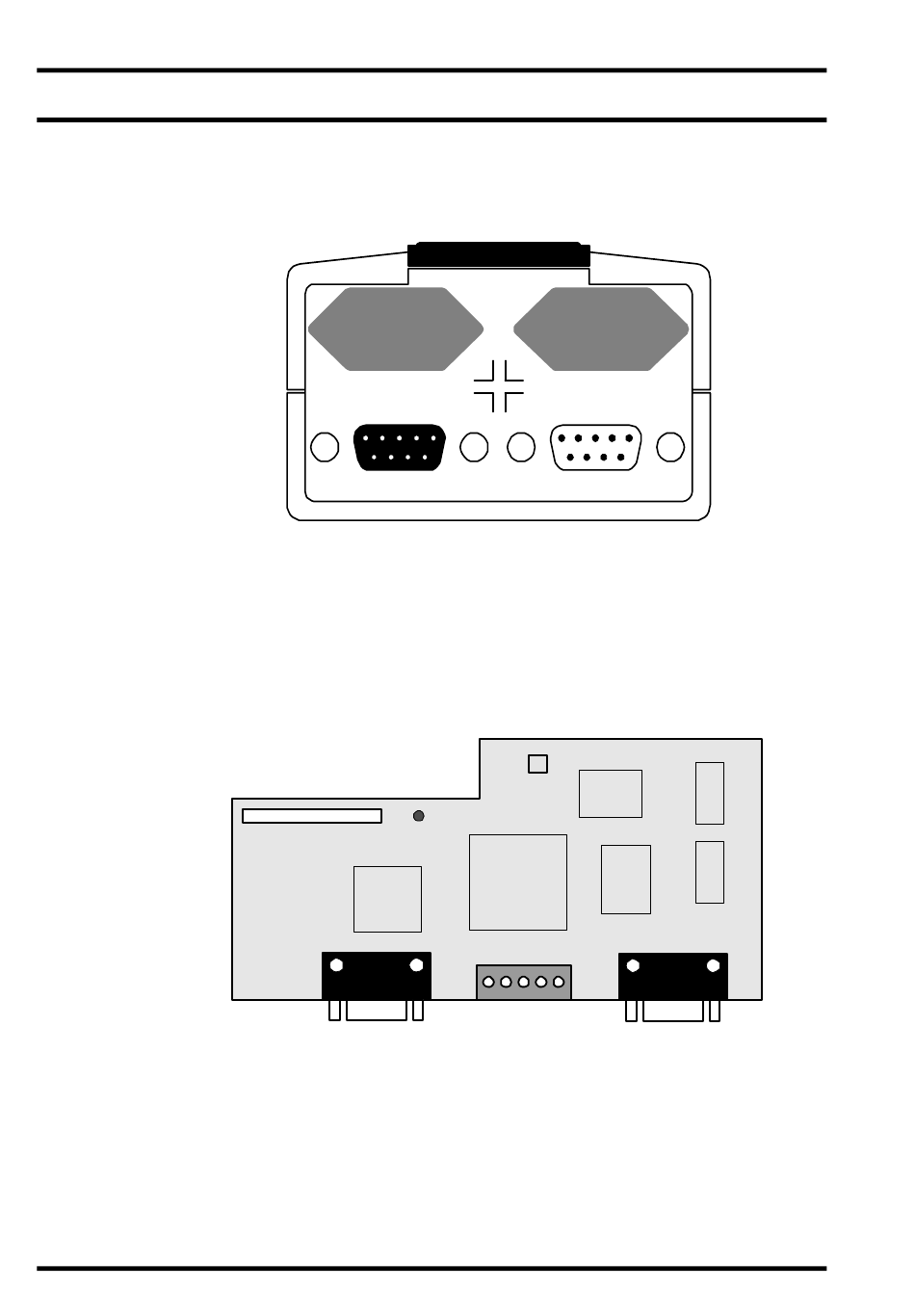

The UD70 provides a dedicated RS232 programming port (Connector C) and a
general purpose RS485 communications port (Connector D)..
Connectors A and B provide the connectors for high speed fieldbus communication
options, if fitted. Refer to the appropriate fieldbus option User Guide for full fieldbus
connection details.
2.2
MD29
The MD29 provides a dedicated RS232 programming port (Connector SK2) and a
general purpose RS485 communications port (Connector PL1). In addition, the
MD29 also has a dedicated RS485 port (Connector TB1) for use with the Control
Techniques I/O Box.
5
SK2
MD29
PL1
www.controltechniques.com
A B
C
D
SW1
1
5
TB1
UD70/MD29 Installation Guide
SK2
Issue Number: 3
