1.2
Mentor II and MD29/MD29AN

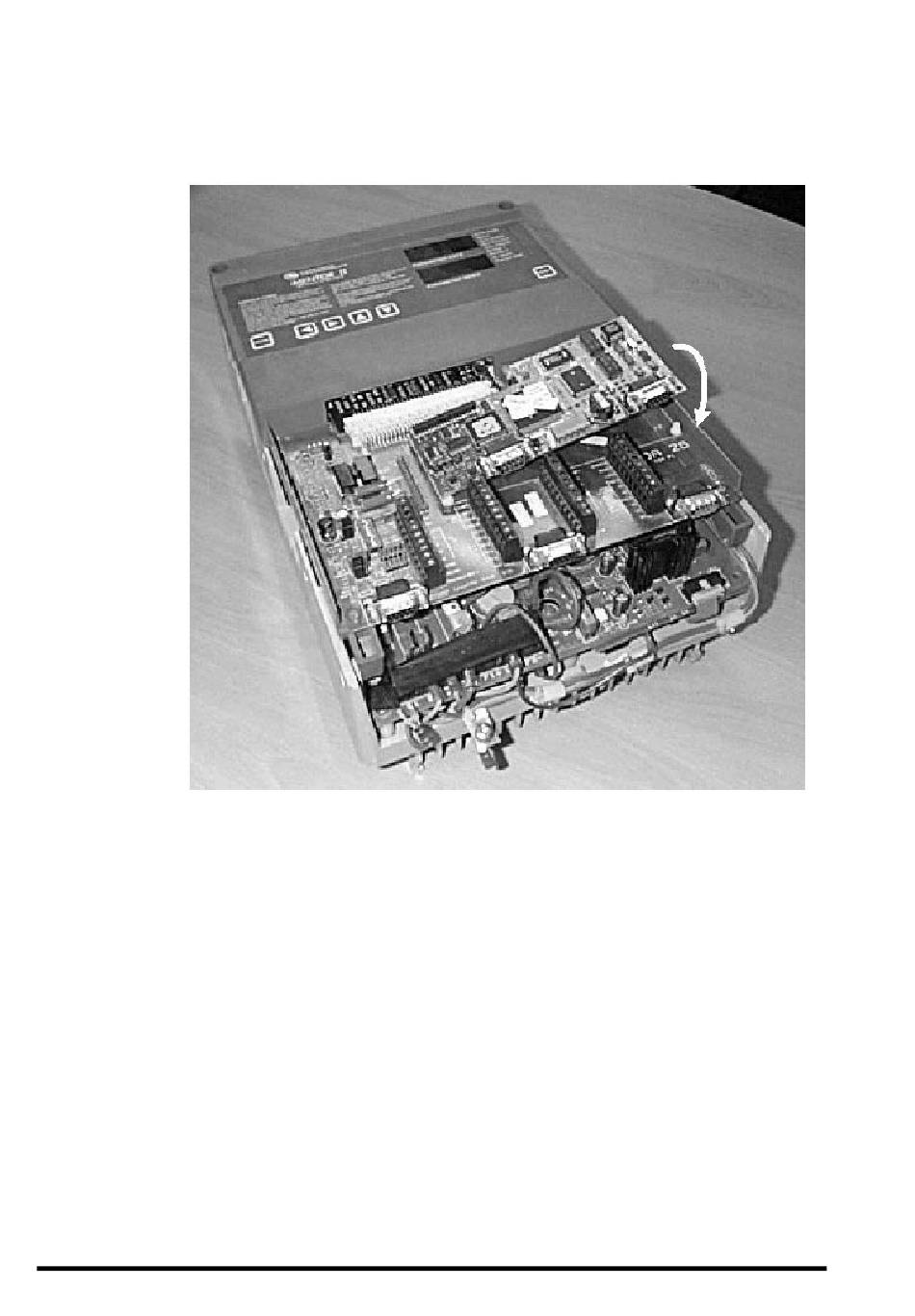

The MD29 is fitted onto the 40-way pin header (PL1) on the MDA2B circuit board.
The supplied mounting pillars should be attached to the MDA2B on the Mentor II.
•
3
Tilt the MD29 at an angle and locate the first few pins into the MD29 header.
www.controltechniques.com
UD70/MD29 Installation Guide
Issue Number: 3
