RepoSheet™ Original
Accessory
Instruction Guide

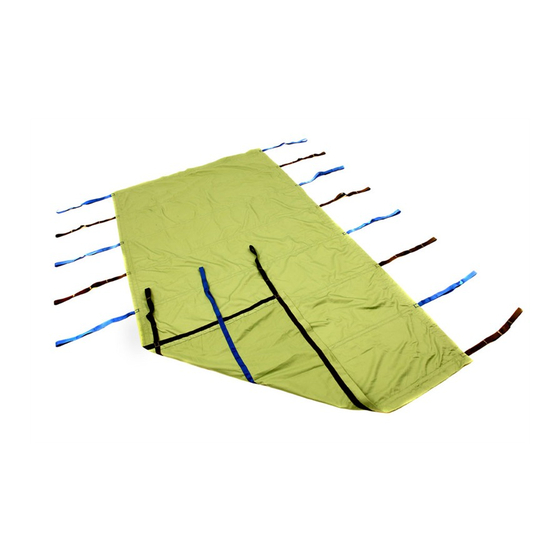

RepoSheet Original accessory has been specially developed
by Liko to facilitate repositioning of the patient in bed. It is
ideal for moving the patient higher up in the bed and turning
the patient with the aid of a lift, with minimal physical effort
by the caregiver.
Repositioning can be done by one person, but we
recommend that two caregivers assist, since this is a
timesaving and efficient way to work.
RepoSheet Original accessory can be used in combination
with, or instead of, an ordinary bed sheet.
Two models are available; Regular, for lifting up to
200 kg (440 lbs.), and Ultra, for lifting up to 500 kg (1100
lbs.). For retained maximum load, lift/accessories intended
for the same load or more are required.
RepoSheet Original accessory is available in two different
materials. In most cases the design in polyester/cotton is
recommended, which has a soft and comfortable surface.
Net polyester is recommended in cases where the patient
is supported on a special matress, a so called low-air-loss
matress, for pressure sore treatment.
In this document, the person being lifted is referred to as the "patient" and the person helping them is referred to
as the "caregiver".
is a warning triangle used for situations that require extra care and attention.
Read the instruction guide for both the lifting accessory and the lift being used. Instruction guides can be downloaded,
free of charge, at www.liko.com.
7EN160156 Rev. 7
ENGLISH
Product Description
When lateral transfer is performed using the RepoSheet
accessory, it is critical that a sufficient number of lift
straps are connected to the sling bar to ensure that the
patient gets sufficient support under the body for a safe
lifting during the transfer. Also, take care to assure that no
unconnected loop straps are dangling in such a manner as
to catch on any objects in the path of movement.
RepoSheet Original accessory is best used in combination
with overhead lifts. We recommend LikoGuard
lift, Likorall
a maximum load of 500 kg (1100 lbs) an Ultra lift system is
required. See last page for recommended sling bars.
RepoSheet Original accessory is not intended for lifting
and transferring from a supine to a sitting position. In these
cases we recommend using our slings, which are available in
many different models.
overhead lift or Multirall
™
overhead
™
overhead lift. For
™
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Liko RepoSheet Original
Summary of Contents for Liko RepoSheet Original
-
Page 1: Product Description
RepoSheet Original accessory has been specially developed When lateral transfer is performed using the RepoSheet by Liko to facilitate repositioning of the patient in bed. It is accessory, it is critical that a sufficient number of lift ideal for moving the patient higher up in the bed and turning... -
Page 2: Safety Instructions
• Before lifting, check that the lifting accessory hangs vertically and can move freely. • Although Liko’s sling bars are equipped with latches, particular care should be taken: Before the patient is lifted from the underlying surface, but after the straps have been fully extended, make sure the straps are properly hooked to the sling bar. - Page 3 Procedure In some cases, especially when you want the patient to remain The first time RepoSheet Original accessory is placed on the as horizontal as possible during the lift, it may be better, bed, it is easiest if the patient is first lifted up from the bed in...
- Page 4 (normally 4-5 lifting accessory. pairs of straps). One placement of RepoSheet Original accessory is good for Lifting with lift straps below the knees may cause over- about 3-5 repositionings before it is time for re-bedding.
- Page 5 After lowering, the first sheet can be removed when the patient is turned to one side, preferably with the help of the new RepoSheet accessory and the lift. If RepoSheet Original accessory is used for moving the patient higher up in bed, it is practical to have two or more sheets that you can use to alternate.
- Page 6 These recommendations apply to combinations both when using one respectively two sling bars (two sling bars = Ultra lift system).. Other Combinations Combinations of accessories/products other than those recommended by Liko can result in risk for the safety of the patient. www.hill-rom.com I www.liko.com Liko AB Nedre vägen 100...
