Summary of Contents for Trumpf TruTool S 114
- Page 1 Operating manual TruTool S 114 (1A1) english...
-
Page 2: Table Of Contents
General safety information...........3 Specific safety information...........4 Description .................5 Intended use ................5 Technical specifications............6 Setting work ...............6 Operation ................7 Operating the TruTool S 114 ..........8 Cutting tubes................9 Trimming sheets ..............10 Cutting profiles..............11 Maintenance ..............12 Turning or replacing tools ..........13 Replacing carbon brushes ..........14 Original accessories and wearing parts......15... -
Page 3: Safety
Safety General safety information Read the operating manual and the safety information USA/CAN (material no. 1239438, red document) completely before putt- ing the machine into service. Follow the instructions strictly. Other countries Read the operating manual and the safety information (material number 125699, red document) completely before putting the machine into service. -
Page 4: Specific Safety Information
Always position the cable leading away from the machine, at back of the machine. Do not pull the cable over sharp edges. Have servicing and inspections of hand-held electric tools carried out by a qualified specialist. Only use original accessories provided by TRUMPF. Safety E582EN_02.DOC... -
Page 5: Description

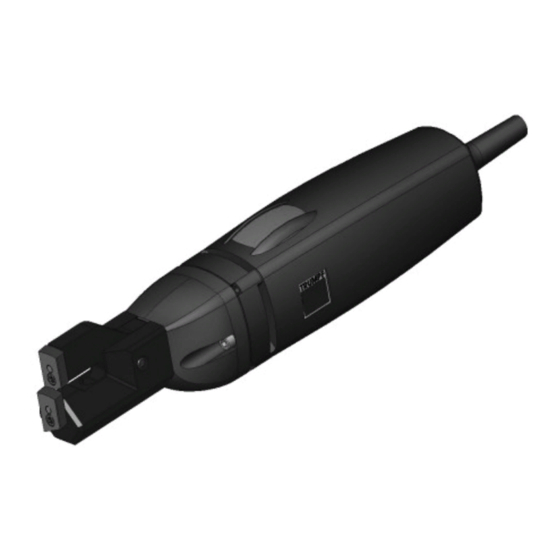

Only use the machine for work and materials as described under "Intended use". Warning The TRUMPF TruTool S 114 trimming shear is an electrical, hand- held device used for the following applications: • Cutting plate-shaped workpieces made of steel, aluminum, plastic, etc. -
Page 6: Technical Specifications
Technical specifications Other countries Values Values Values Values Voltage 230 V 120 V 110 V 120 V Frequency 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz Working speed 4-6 m/min 4-6 m/min 4-6 m/min 13-20 ft/min Nominal take-up 350 W 350 W 350 W 350 W... -
Page 7: Operation
Operation Damage to property due to high power-supply voltage! Motor damage. Check the power supply voltage. The power-supply voltage Caution must correspond to the information on the nameplate of the machine. Risk of injury to hands! Do not reach into the processing line with your hands. Do not reach into the space between the oscillating lever and Warning the abrasive cutting head with your hands or fingers. -
Page 8: Operating The Trutool S 114
Operating the TruTool S 114 Note Do not subject the machine heavy loads to such an extent that it stops. To protect the machine and for a good cutting performance: • Ensure that blades are sharp. • Replace the blades in due time. -
Page 9: Cutting Tubes
Cutting tubes 1. Place the machine opening around the tube material. Fig. 46787 2. Lead the machine diagonally across the tube/sheet. Fig. 46784 Operation E582EN_02.DOC... -
Page 10: Trimming Sheets
3. Straighten the machine by means of a swiveling motion. Fig. 46786 4. For a slightly tapered end to the pipe, lean the machine slightly towards the center of the tube. Note Inclination of the machine prevents the oscillating lever damaging the walls. -
Page 11: Cutting Profiles
Cutting profiles When cutting profile tubes, for example, always place the oscillating lever on the side of the inner radius. Direction of cutting Fig. 46858 Note If profile tubes are cut without a corner radius, deformation of the tube will occur close to the corners. To reduce this deformation to a minimum, there must be a minimum inner radius of 5 mm. -
Page 12: Maintenance
Maintenance Danger of injury due to the repair work not being carried out properly! Machine does not work properly. Warning Repair work may only be carried out by a qualified specialist. Maintenance point Procedure and interval Recommended lubricant Order no. Lubricant Bolt Have a specialist either lubricate... -
Page 13: Turning Or Replacing Tools
Turning or replacing tools Risk of fatal injury from electric shock! Pull the plug out of the socket whenever tools have to be replaced or prior to maintenance work on the machine. Danger Material damage by blunt tools! Machine overload. Check the cutting edge of the blade hourly for wear. -
Page 14: Replacing Carbon Brushes
4. Check the drilling depth: If all cutting edges of the two blades are blunt: Insert new blades. If only one of the cutting edges is blunt: Swap the blades (oscillating lever and abrasive cutting head). 5. Place the blade closest to the oscillating lever onto the cylindrical pin. -
Page 15: Original Accessories And Wearing Parts
Desired delivery type (e.g. air mail, courier, express mail, – ordinary freight, parcel post). 4. Send the order to the TRUMPF representative office. For TRUMPF service addresses, see the address list at the end of the document. Original accessories and wearing parts E582EN_02.DOC... - Page 16 Original accessories and wearing parts E582EN_02.DOC...
