Ceraphant PTP31B, PTP33B
Endress+Hauser
2
E

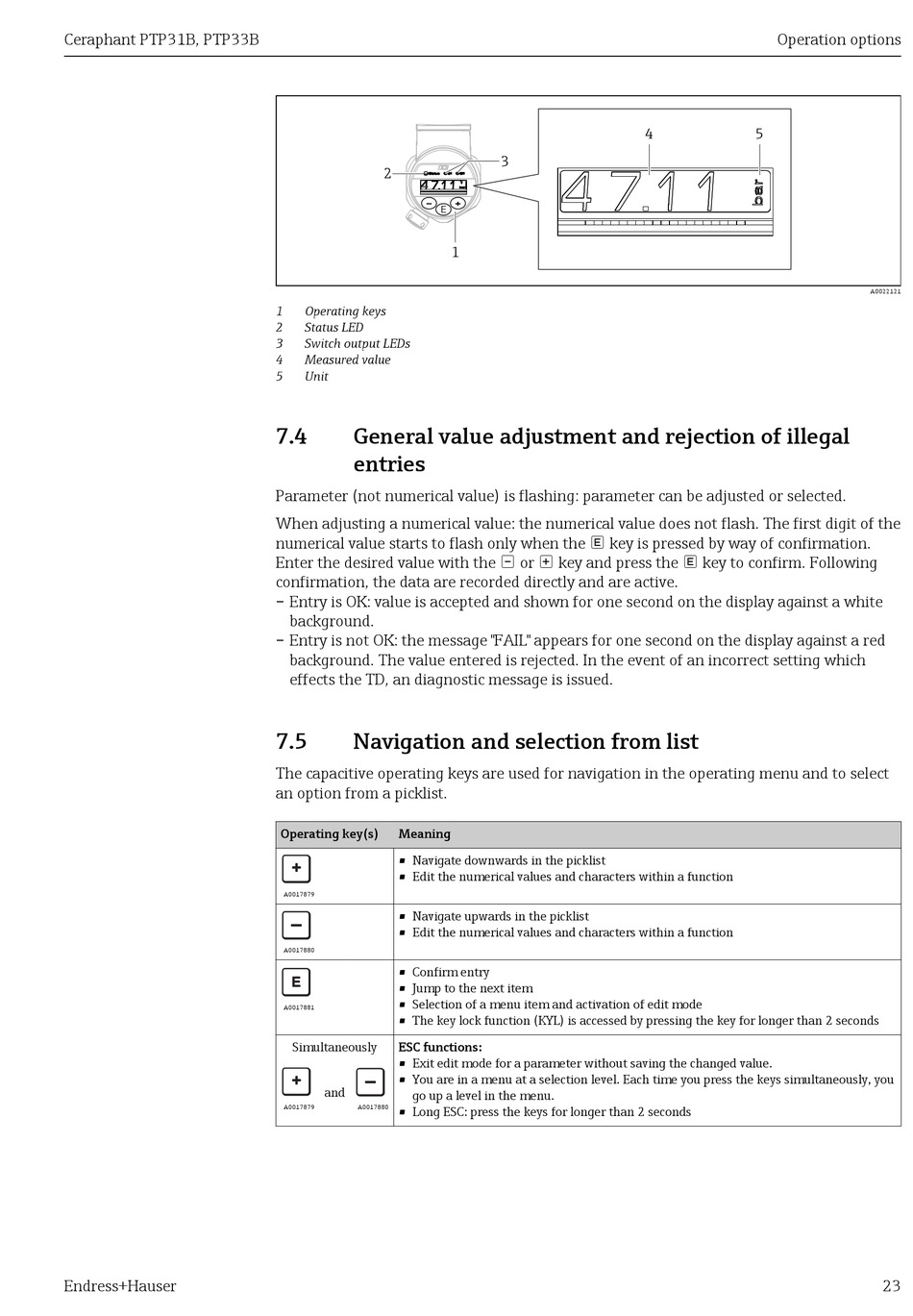

1 Operating keys
2 Status LED
3 Switch output LEDs
4 Measured value
5 Unit
7.4 General value adjustment and rejection of illegal
entries
Parameter (not numerical value) is flashing: parameter can be adjusted or selected.
When adjusting a numerical value: the numerical value does not flash. The first digit of the
numerical value starts to flash only when the  key is pressed by way of confirmation.
Enter the desired value with the  or  key and press the  key to confirm. Following
confirmation, the data are recorded directly and are active.
– Entry is OK: value is accepted and shown for one second on the display against a white
background.
– Entry is not OK: the message "FAIL" appears for one second on the display against a red
background. The value entered is rejected. In the event of an incorrect setting which
effects the TD, an diagnostic message is issued.
7.5

Navigation and selection from list

The capacitive operating keys are used for navigation in the operating menu and to select
an option from a picklist.
Operating key(s) Meaning
• Navigate downwards in the picklist
• Edit the numerical values and characters within a function
A0017879
• Navigate upwards in the picklist
• Edit the numerical values and characters within a function
A0017880
• Confirm entry
• Jump to the next item
• Selection of a menu item and activation of edit mode
A0017881
• The key lock function (KYL) is accessed by pressing the key for longer than 2 seconds
Simultaneously ESC functions:
• Exit edit mode for a parameter without saving the changed value.
• You are in a menu at a selection level. Each time you press the keys simultaneously, you
and
go up a level in the menu.
A0017879 A0017880 • Long ESC: press the keys for longer than 2 seconds
3
1
Operation options
4 5
A0022121
23
