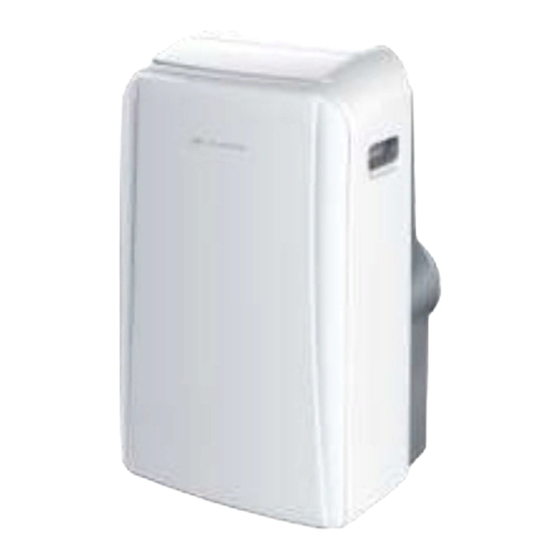

- Page 1 User Manual Portable Air Conditioner...
-
Page 2: Table Of Contents
Contents S a f e t y P r e c a u t i o n s - - - - - - - - - - - - - C a u t i o n s - - - - - - - - - - - - - - - - - - - W a r n i n g s - - - - - ( f o r u s i n g R 2 9 0 / R 3 2 r e f r i g e r a n t o n l y ) -
Page 3: Safety Precautions
Safety Precautions This symbol indicates that ignoring instructions may cause death or serious injury. WARNING: To prevent death or injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause death, harm or damage. -
Page 4: Cautions
Cautions Cautions -This appliance can be used by children aged from 8 years and above and person with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 5: Warnings(For Using R290/R32 Refrigerant Only)
Warnings(for using R290/R32 refrigerant only) -Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. -The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater). -
Page 6: Maintenance
Warnings(for using R290/R32 refrigerant only) 1.Transport of equipment containing flammable refrigerants explosion. All possible ignition sources, including cigarette See transport regulations smoking, should be kept sufficiently far away from the site 2.Marking of equipment using signs of installation, repairing, removing and disposal, during See local regulations which flammable refrigerant can possibly be released to the 3.Disposal of equipment using flammable refrigerants... - Page 7 Warnings(for using R290/R32 refrigerant only) exposed while charging, recovering or purging the system; may need re-calibration. (Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the That there is continuity of earth bonding. detector is not a potential source of ignition and is suitable 7.Repairs to sealed components for the refrigerant used.
- Page 8 Warnings(for using R290/R32 refrigerant only) Extreme care shall be taken not to overfill the refrigeration practice that all refrigerants are removed safely. system. Prior to recharging the system it shall be pressure When transferring refrigerant into cylinders, ensure that only tested with OFN.
-
Page 9: Preparation
Preparation control panel horizontal louver blade upper air filter (swing automatically) (behind the grille) handle (both sides) upper air intake drain outlet Panel air outlet lower air filter lower air intake drain outlet (only for pump heating mode) power cord buckle Caster power cord outlet power plug socket... -
Page 10: Installation
Installation Choosing The Right Location Your installation location should meet the following requirements: -Make sure that you install your unit on an even surface to minimize noise and vibration. -The unit must be installed near a grounded plug, and the Collection Tray Drain (found on the back of the unit) must be accessible. - Page 11 Installation Other Regions Part Description Quantity Part Description Quantity Unit Adaptor 1 pc 1 pc Bolt Security Bracket and Screw 1 pc 1 set Exhaust Hose Drain Hose 1 pc 1 pc Window Slider Adaptor Drain Hose Adaptor(only for Wall Exhaust Adaptor A 1 pc 1 pc (only for wall installation)
- Page 12 Installation Note: Once the Exhaust Hose assembly and Adjustable Window Slider Type 2: Wall Installation(optional) are prepared, choose from one of the following installation methods. 1.Cut a 125mm (4.9inch) hole into the wall for the Wall Type 1: Hung Window or Sliding Window Installation(optional) Exhaust Adaptor B.
-
Page 13: O P E R A T I O
Operation NOTE: The control panel may be look like one of the followings: NOTE: On some models is instead of °F. On some models (WIRELESS light) is instead of (power light). NOTE: Some features(ION, FOLLOW ME, HEAT, WIRELESS etc.) are optional. ION is not applicable for R32/R290 units. - Page 14 Operation Fan/Ion button(Ion is optional) Swing button Used to initiate the Auto swing feature. When Control the fan speed. Press to select the fan the operation is ON, press the SWING button speed in four steps-LOW, MED, HIGH and AUTO. can stop the louver at the desired angle.
- Page 15 Operation Operation Instructions -When the unit is off, press the Timer button to initiate COOL operation the Auto-on start program, press it again within 5 -Press the "MODE" button until the "COOL" indicator light seconds will initiate the Auto-off stop program. comes on.
-
Page 16: M A I N T E N A N C
Operation drain hose WAIT 3 MINUTES BEFORE RESUMING OPERATION adaptor √ After the unit has stopped, it can not be restarted drain hose operation in the first 3 minutes. This is to protect the unit. adaptor Operation will automatically start after 3 minutes. POWER MANAGEMENT feature(on some models) When the ambient temperature is lower than the setting Press the power... -
Page 17: F A U L T S D I A G N O S I
Maintenance -Run the appliance on FAN mode for 12 hours in a warm room to Maintenance Tips dry it and prevent mold. -Be sure to clean the air filter every 2 weeks for optimal performance. -Turn off the appliance and unplug it. -The water collection tray should be drained immediately after P1 -Clean the air filter according to the instructions in the previous error occurs, and before storage to prevent mold. -
Page 18: D E S I G N A N D C O M P L I A N C E N O T E
Design and Compliance Notes Design Notice The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. Any updates to the manual will be uploaded to the service website, please check for the latest version. -
Page 19: S O C I A B L E R E M A R
Sociable Remark When using this unit in the European countries, the following information must be followed: DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. It is prohibited to dispose of this appliance in domestic household waste. For disposal, there are several possibilities: A) The municipality has established collection systems, where electronic waste can be disposed of at least free of charge to the user. - Page 20 ALPICAIR AIR CONDITIONING Note: AlpicAir is commited to continuous improvement of its products to ensure the highest quality and reliabilty standards and to meet local regulations and market requirements. V 3.15.0 * Under our policy of continuous improvement, we reserve the right to change...
