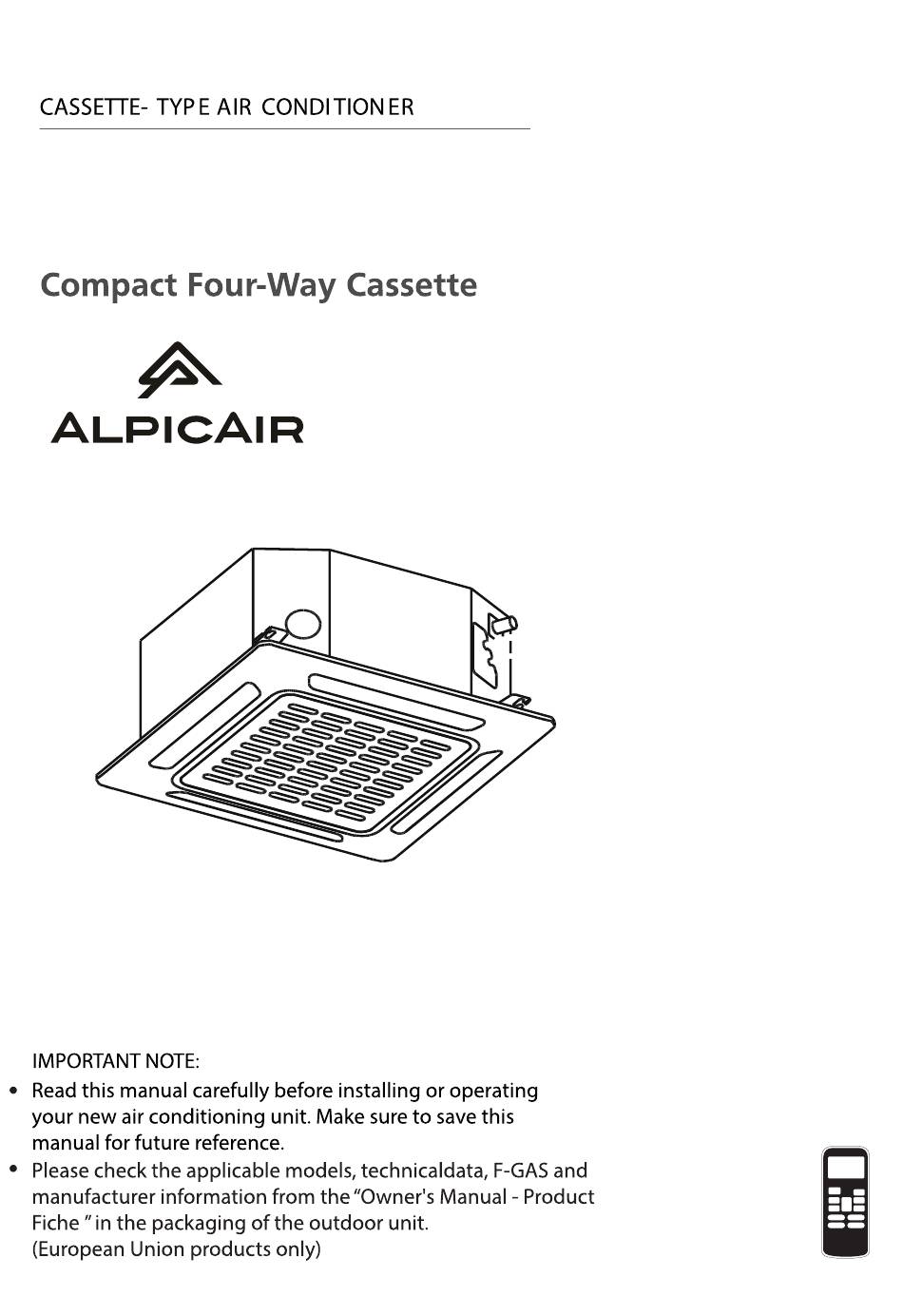

- Page 1 User Manual ACI-35HRDC1 ACI-53HRDC1...
- Page 3 Table of Contents Owner’s Manual Safety Precautions ............ SAFETY FIRST Indoor Unit Parts and Major Functions ..08 Manual Operations ...........
-
Page 4: Table Of Contents
Care and Maintenance ......Unit Maintenance ........How to Clean the Air Filter ....... Repairing Refrigerant Leaks ..... Preparation for Periods of Non-use ..12 Troubleshooting ......... Common Problems ......Troubleshooting Tips ......European Disposal Guidelines .............. - Page 5 Safety Precautions Thank you for purchasing this air conditioner. This manual will provide you with information on how to operate, maintain, and troubleshoot your air conditioner. Following the instructions will ensure the proper function and extended lifespan of your unit. Read Safety Precautions Before Installation Incorrect installation due to ignoring instructions can cause serious damage or injury.
- Page 6 CAUTION to ensure that they do not play with the appliance (IEC Standard requirements). DO NOT touch the air outlet while the This appliance can be used by children swing flap is in motion. Fingers might get aged from 8 years and above and caught or the unit may break down.
- Page 7 CAUTION 13. DO NOT operate the air conditioner in a wet room (e.g. bathroom or laundry room). This can cause electrical shock and cause the product to deteriorate. Turn o the air conditioner and disconnect the power if you are not going to use it for a long time.
- Page 8 Indoor Unit Parts And Major Functions Unit Parts Display panel Louver Air outlet Air inlet Fig. 2.1 Operating Conditions Use the system under the following temperatures for safe and e ective operation. If the air conditioner is used under di erent conditions, it may malfunction or become less e cient. Fixed-speed Type •...
- Page 9 Features Default Setting Louver Angle Memory Function (Optional) When the air conditioner restarts after a power Some models are designed with a louver angle failure, it will default to the factory settings memory function. When the unit restarts after a (AUTO mode, AUTO fan, 24°C (76°F)).
- Page 10 Manual Operations This display panel on the indoor unit can be used to operate the unit in case the remote control has been misplaced or is out of batteries. Manual button Infrared receiver Operation indicator Alarm indicator Timer indicator PRE-DEF (pre-heating/defrost) indicator Fig.
-
Page 11: Care And Maintenance
Care And Maintenance WARNING: DO NOT REMOVE OR Safety Precautions CLEAN THE FILTER BY YOURSELF Contact an authorized service technician for • repair or maintenance. Improper repair and Removing and cleaning the filter can be maintenance may cause water leakage, dangerous. -
Page 12: Repairing Refrigerant Leaks
Repairing Refrigerant Leaks 4. Remove the air lter. 5. Clean the air lter by vacuuming the surface or washing it in warm water with mild WARNING detergent. If the refrigerant leaks, turn o the air • A. If using a vacuum cleaner, the inlet side conditioner and any combustible heating should face the vacuum. -
Page 13: Troubleshooting
Troubleshooting CAUTIONS If one of the following conditions occurs, switch o the power supply immediately and contact your dealer for further assistance. The operation light continues to flash rapidly after the unit has been restarted. • The remote control buttons do not work. •... - Page 14 Problem Possible Causes Both the indoor When the unit restarts in HEAT mode after defrosting, white mist may be and outdoor units emitted due to moisture generated from the defrosting process. emit white mist A squeaking sound is heard when the system is OFF or in COOL mode. The The indoor unit noise is also heard when the drain pump (optional) is in operation.
-
Page 15: Troubleshooting Tips
Troubleshooting Tips When troubles occur, please check the following points before contacting a repair company. Problem Possible Causes Solution Power failure Wait for the power to be restored The power switch is o Turn on the power The unit The fuse is burned out Replace the fuse is not Remote control batteries are dead... - Page 16 Error Codes Fixed-speed Type • Timer Error Operation Alarm PRE-DEF Cause Number indicator Code indicator indicator indicator In-outdoor unit communication Quick- ash Quick- ash checking channel is abnormal Room temperature sensor Quick- ash checking channel is abnormal Evaporator sensor malfunction Quick- ash Condenser sensor malfunction Quick- ash...
- Page 17 Inverter Split Type • Indoor EEPROM (Electrically Erasable Programmable Read-Only Memory) error Indoor and outdoor unit communication malfunction Indoor fan speed malfunction Indoor room temperature sensor error Evaporator coil temperature sensor error Refrigerant leak detection system malfunction Water level alarm malfunction Dual indoor unit (twin model only) communication malfunction Other twin model malfunction...
-
Page 18: European Disposal Guidelines
European Disposal Guidelines Users in European Countries may be required to properly dispose of this unit. This appliance contains refrigerant and other potentially hazardous materials. When disposing of this appliance, the law requires special collection and treatment. DO NOT dispose of this product as household waste or unsorted municipal waste. - Page 20 Please check the applicable models, F-GAS and manufacturer information from the “Owner’s Manual-Product Fiche” in the packaging of the outdoor unit. (European Union products only)
