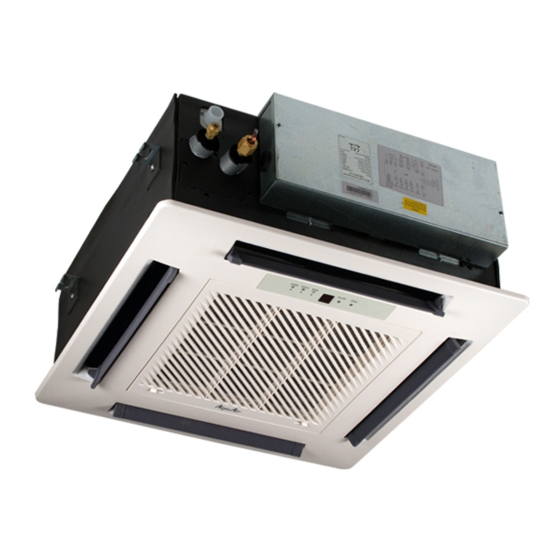

- Page 1 Installation and Operation Manual Multi-Split Cassette Type Indoor Unit For models: ACMI-26HPDC1 ACMI-36HPDC1 ACMI-53HPDC1 Please read this manual carefully before the installation and operation of this product.
- Page 2 Thank you for your selecting of ALPICAIR air conditioner, please read this usage and install instruction carefully and keep it well in order to use this unit correctly.
-
Page 3: Table Of Contents
Contents Safety Information ....................1 Install of The Compact Panel Cassette Type Indoor Unit ......... 2 Constitutes and Names of Parts of Compact Panel Cassette Type Indoor Unit ..10 Working Temperature Range .................. 11 Malfunction Debarring .................... 12 Maintenance Method ....................14... -
Page 4: Safety Information
Safety Information Safety Information Please read this manual carefully before use this unit, and operate it correctly according to the guide in this manual. Please take specially note to the meaning of these two marks: Warning!: This mark means that it may cause casualty or badly heart if the operation is incorrect. Note!: This mark means that it may cause casualty or property loss if the operation is incorrect. -
Page 5: Install Of The Compact Panel Cassette Type Indoor Unit
2. Keep the air conditioner far from the kitchen so that the lampblack would not be indraft by the air conditioner. ★ Important notice: ◆ To guarantee the good performance, the unit must be installed by professional personnel according with this instruction. ◆ Please contact the local ALPICAIR special nominated repair department before installation. Any malfunction... - Page 6 Install of The Compact Panel Cassette Type Indoor Unit caused by the unit that is installed by the department that is not special nominated by ALPICAIR would not deal with on time by the inconvenience of the business contact. ★ Dimension of ceiling opening and location of the hoisting screw (M10) 570 604 650 Fig.2 Install dimension of mode...
- Page 7 Install of The Compact Panel Cassette Type Indoor Unit ◆ Install the install cardboard on the unit by bolt (3 piece), and fix the angle of the drainage pipe at the outlet vent by bolt. 3 Adjust the unit to the suitable install place. (Refer to the fig.3) 4 Check if the unit is horizontal.
- Page 8 Install of The Compact Panel Cassette Type Indoor Unit Smear freeze motoroil here Median sponge (attachment) (entwine the wiring interface with seal mat) Thread fasten(x4) Torque wrench Heat preservation sheath of liquid inlet tube (attachment) (for liquid tube) Spanner Heat preservation sheath of gas collection tube (attachment)(for Gas collection tube...
- Page 9 Install of The Compact Panel Cassette Type Indoor Unit Sponge(attachment) Clamp(attachment) Clamp Drain hose Sponge (gray) Below 4mm Fig.7 Drain stepup pipe note ◆ The install height of the drain raising pipe should less than 280mm. ◆ The drain raising pipe should form a right angle with the unit, and distance to unit should not beyond 300mm.
- Page 10 The power cord reference Power cord standard recommending table Fig.12 Power cord standard recommending table Power Supply Earthing Permit Min Model (V, Ph, Hz) Section(mm Section (mm ACMI-26HPDC1 220~240V-1Ph-50Hz H05VV-F 1.0 mm H05VV-F 1.0 mm ACMI-36HPDC1 ACMI-53HPDC1 220~240V-1Ph-50Hz H05VV-F 1.0 mm H05VV-F 1.0 mm...
- Page 11 Install of The Compact Panel Cassette Type Indoor Unit ★ Install the panel 1. Set the panel to the indoor unit body by matching the position of the swing flap motor of the panel to the piping position of the panel to the piping position of the indoor unit as shown by fig.13. 2.
- Page 12 Install of The Compact Panel Cassette Type Indoor Unit 2. If gap still exist between ceiling and decoration panel after tightening the screws, readjust the height of the indoor unit. (As shown in fig.15) If the raising lever and drain hose are not affect, can adjust the height of indoor unit by the hole on the corner of panel.
-
Page 13: Constitutes And Names Of Parts Of Compact Panel Cassette Type Indoor Unit
Constitutes and Names of Parts of Compact Panel Cassette Type Indoor Unit Constitutes and Names of Parts of Compact Panel Cassette Type Indoor Unit ACMI-26HPDC1 ACMI-36HPDC1 ACMI-53HPDC1... -
Page 14: Working Temperature Range
Working Temperature Range Working Temperature Range Working Temperature Range Indoor side state Outdoor side stae Dry bulb Wet bulb Dry bulb Wet bulb temp. ℃ temp. ℃ temp. ℃ temp. ℃ Rated Cooling Max. cooling Min. cooling — Rated Heating Max. -
Page 15: Malfunction Debarring
Malfunction Debarring Malfunction Debarring Warning! ◆ Cut down the main power switch immediately if malfunction (such as smell the burning odor etc.) happened, and then contact service center. If the abnormal state is maintained, the unit may be damaged or electric shock or fire may be happened. - Page 16 Malfunction Debarring ★ Instruction If problem still cannot found out after above checking, please contact service center and instruct phenomena and model. ★ The following circumstance are not malfunction “Malfunction” Reason Start up unit immediately after turned The overload protects switch makes it run after 3 minutes delay.
-
Page 17: Maintenance Method
Maintenance Method Maintenance Method When air conditioner won’t be used for a long time, please cut off the main power supply of air conditioner. Warning! ◆ Do turn off the unit and cut off the main power supply when cleaning the air conditioner, otherwise electric shock or harm may happen. - Page 18 Maintenance Method Fig.19 Fig.20 ★ Clean air inlet grille 1. Open air inlet grille (the same with the 1st step of Clean Air Filter) 2. Take out air filter (the same with the 2nd step of Clean Air Filter) 3. Take out air inlet grille Open air inlet grille for an angle of 45°, as shown in fig.20, rise it.
- Page 19 ◆ Could adsorb deleterious material that is smaller than 1μm in air, as dust, pollen, bacteria, and virus. ◆ Usage period is 6 months to 1 year. If it is necessary to be changed, purchase new purifier in the nearest ALPICAIR special engaged maintenance center. ★ Clean Outlet vent and Surface Panel ◆...
