Summary of Contents for AlpicAir AMI-25HRDC1

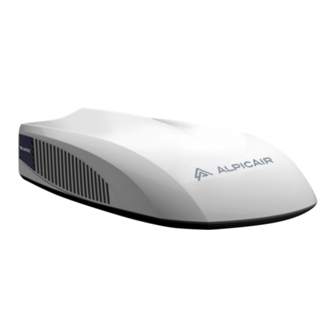

- Page 1 Owner's Manual Original Instructions Recreational Vehicle Air Conditioner Model: AMI-25HRDC1 AMO-25HRDC1 AMI-35HRDC1 AMO-35HRDC1 Thank you for choosing our product. Please read this Owner’s Manual carefully before operation and retain it for future reference.
-
Page 2: Table Of Contents
CONTENTS A FEW WORDS ABOUT YOUR NEW AIR CONDITIONING UNIT ........1 ELECTRICAL DATA ......................1 ELECTRIC DIAGRAM ......................2 PACKING LIST ........................3 ........................4 PARTS NAME OPERATION OF WIRELESS REMOTE CONTROLLER ............5 CONTROL PANEL ........................ 9 INSTALLATION INSTRUCTION .................... - Page 3 Appliance filled with flammable gas R32. Before install and use the appliance, read the owner’s manual first. Before install the appliance, read the installation manual first. Before repair the appliance, read the service manual first. THE REFRIGERANT To realize the function of the unit, a special refrigerant circulates in the system. The used refrigerant is the fluoride R32, which is specially cleaned.
-
Page 4: Installation Precaution
INSTALLATION PRECAUTION WARNING: Observe all governing codes and ordinances. Do not use damaged or non-standard power cord. Be caution during installation and maintenance. Prohibit incorrect operation to prevent electric shock, casualty and other accidents. Before turning on the unit, please open the horizontal louver of indoor unit by hand. Otherwise, the cool air can’t be blown out and there will be condensate water on the horizontal louver. - Page 5 INSTALLATION PRECAUTION Requirements For electric Connection Safety precaution Must follow the electric safety regulations when installing the unit. For appliances with type Y attachment,the instructions shall contain the substance of the following.If the supply cord is damaged,it must be replaced by avoid a hazard.
-
Page 6: A Few Words About Your New Air Conditioning Unit
A FEW WORDS ABOUT YOUR NEW AIR CONDITIONING UNIT Thank you for choosing the Recreational Vehicle Air Conditioner. This manual will supply you with all the information for installation, operation and maintenance. Take a few minutes to discover how to get the most in cooling comfort and economic operation from your new air conditioner. -
Page 7: Electric Diagram
ELECTRIC DIAGRAM Ceiling Assembly CONNECTOR DISP1 DISPLAY BOARD ROOM ROOM SENSOR WIFI CONNECTOR WIFI LAMP MODULE MODULE OPTIONAL Roof Top Air Conditioner IN_FAN MOTOR OUTDOOR TUBE TUBE OUTROOM DISCHARGE TEMP.SENSOR TEMP.SENSOR TEMP.SENSOR TEMP.SENSOR (20K) (20K) (15K) (50K) (WH) (BK) T-SEN T-PIPE COM-IN1 MAIN BOARD... -
Page 8: Packing List
PACKING LIST battery owner’s manual Mounting plate remote controller (AAA 1.5V) Sunk screw Double-sided gummed paper Remote controller holder (remote controller holder) foam(under) Bolt sub-assy Foam (accessory) Sponge (foam accessory) Mounting plate sub-assy M8X135 Insulating sheath Bundle Sponge Sponge (sealing strip) Bolt sub-assy M6X25 Tapping screw - 3 -... -
Page 9: Parts Name
PARTS NAME Indoor Unit Filter sub-assy Air-in grille LED indicator Air-out grille Control panel (membrane) (Display content or position may be different from above graphics, please refer to actual products) remote controller Outdoor Unit Outer case Air-in grille Chassis Drainage outlet NOTICE: Actual product may be different from above graphics, please refer to actual products. -
Page 10: Operation Of Wireless Remote Controller
OPERATION OF WIRELESS REMOTE CONTROLLER Buttons on remote controller Introduction for icons on display screen Set fan speed Send signal Auto mode Cool mode Dry mode Fan mode Heat mode Sleep mode Light X-FAN function Indoor ambient temp. Clock Set temperature WiFi function Set time TIMER ON / TIMER OFF... -
Page 11: Introduction For Buttons On Remote Controller
Introduction for buttons on NOTE remote controller ● For preventing cold air, after starting up heat mode, indoor unit will delay 1~5 minutes to blow air (Actual NOTE delay time depends on indoor ambient temperature). ● This is a general use remote controller . It could be ●... - Page 12 MENU button Hold "+" or "-" button, 2s later, the time will change quickly until reaching your required time.Press Press this button to select submenu function and "SET" button to confirm it within 5S. The word then press " SET " button to set the function "ON"...
-
Page 13: Function Introduction For Combination Buttons
Replacement of batteries in TURBO button remote controller Under COOL or HEAT mode, press this button to turn to quick COOL or quick HEAT mode. " " battery icon is displayed on remote controller. If start this signal sender function, the unit will run at super-high fan speed reinstall to cool or heat quickly so that the ambient tem- remove... -
Page 14: Control Panel
CONTROL PANEL Note: If the remote controller is missing, operate on the control panel. ON/OFF temp. COOL receiver indicator indicator indicator window HEAT indicator ON/OFF button MODE button Select the operation mode, COOL,FAN, Operation starts when pressing this button, and HEAT. -
Page 15: Installation Instruction
INSTALLA TION BEFORE INSTALLATION Test run the unit with proper power supply. Refer to the operation instruction section in the Owner’s Manual Operation & Installation. Make sure all the controls operate correctly then disconnect the power supply of the unit. WARNING Moving parts may cause personal injury. - Page 16 Once the location for your air conditioner has been determined. A reinforced and framed roof. Hole must be cut (if there is no hole, please refer to CASE B) or you may use existing vent holes (See CASE A). CASE A. If a roof vent is already present in the desired mounting location for the air conditioner the following steps must be performed: Remove all screws which secure the roof vent to the vehicle.
- Page 17 If the roof already has a 400x400mm opening. Select the installation position for the recreational vehicle air conditioner This mounting plate of switchover opening is applicable for ALPICAIR recreational vehicle air conditioner. The opening size of installation port on the top of the vehicle must be 400×400mm.
- Page 18 Note: Try you best to put the unit on the horizontal surface for operation. The unit can only operate for a short Level Level Level Above or Below Level Figure 2 Height Varies to Make Unit Level Figure 3 NOTE AIR CONDITIONER DIMENSIONS (ROOF OF UNIT) Unit:mm 1077 (588)
-
Page 19: Step 3-Mounting Outdoor Unit
STEP 3-MOUNTING OUTDOOR UNIT 1.Open the package and take out the outdoor unit 1) When taking out the outdoor unit after unpacking, do not lift the air outlet grille at the back of outer case (see Figure 4-1). Figure 4-1 2.Put the outdoor unit at the mounting plate of switchover opening. -
Page 20: Step 4-Installing The Ceiling Assembly
STEP 4-INSTALLING THE CEILING ASSEMBLY Make sure that you have properly matched the roof top air conditioner and interior ceiling assembly.Caution before tightening bolts: The applicable thickness of vehicle roof ranges from 30mm~80mm. Before tightening bolts, screw in the four bolts manually and prohibit screwing forcibly. When screwing bolts, you can use automatic tool. -
Page 21: Step 5-Electrical Wiring
STEP 5-ELECTRICAL WIRING ROUTING 220-240V AC WIRING WARNING Make sure that all power supply to the unit is disconnected before performing any work on the unit to avoid the possibility of shock or injury and/or damage to the equipment. When the interior ceiling assembly frame is properly secured to the roof top air conditioner, the following electrical connections must be performed. - Page 22 4 Use protective sleeve to wrap the wiring terminal, stick the protective sleeve and then use cable tie to bundle them tightly. Note: 1. The fixing position of cable must be at both ends of wiring terminal. 2. Before installing the front panel of indoor unit, put the thermal insulating jacket on top of the air duct.
-
Page 23: Step 6-Completing The Installation
STEP 6-COMPLETING THE INSTALLATION To complete the installation and system checkout requirements, the following steps must be performed. Check the thermostat position. Make sure the thermostat is routed through the holding guide and is not touching any metal surface. Secure the ceiling grille to the ceiling assembly wind-path with 4 screws. (see Figure 9). Install the healthy filter and air intake grill. -
Page 24: Troubleshooting Guide
C*、 E *、 F*、 H*、 L*、 P*、 U*、 J*、 e* （ "*" represents numbers or letters） （except the functional display code introduced in the owners' manual. Please turn off the unit and contact ALPICAIR appointed maintenance center. -
Page 25: Normal Maintenance Procedures
NORMAL MAINTENANCE PROCEDURES ACTIVETY FREQUENCY Remove the cover and wash the condenser coil Twice a year. Clean the filter When the air conditioner FILTER CHECK (More frequent cleaning may be necessary light on. depending on the air quality) HOW TO REMOVE THE AIR FILTER Push both sides of the air intake grill on the positions front grill marked with “PUSH”. -
Page 26: Specialists Manual
SPECIALIST’S MANUAL Aptitude requirement for maintenance man(repairs should be done only be specialists). Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorises their competence to handle refrigerants safely in accordance with an industry recognised assessment specification. - Page 27 exposing any pipe work shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which refrigerant can possibly be released to the surrounding space.
- Page 28 purging the system; ---That there is continuity of earth bonding. Repairs to sealed components During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. If it is abso- lutely necessary to have an electrical supply to equipment during servicing, then a perm- anently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation.
-
Page 29: Removal And Evacuation
Electronic leak detectors may be used to detect refrigerant leaks but, in the case of flammable refrigerants, the sensitivity may not be adequate, or may need re-calibration. (Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used. - Page 30 – Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimise the amount of refrigerant contained in them. – Cylinders shall be kept upright. – Ensure that the refrigeration system is earthed prior to charging the system with refrigerant. –...
- Page 31 Recovery When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely. When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge are available.
