Summary of Contents for AlpicAir AWI-25HPDC1C

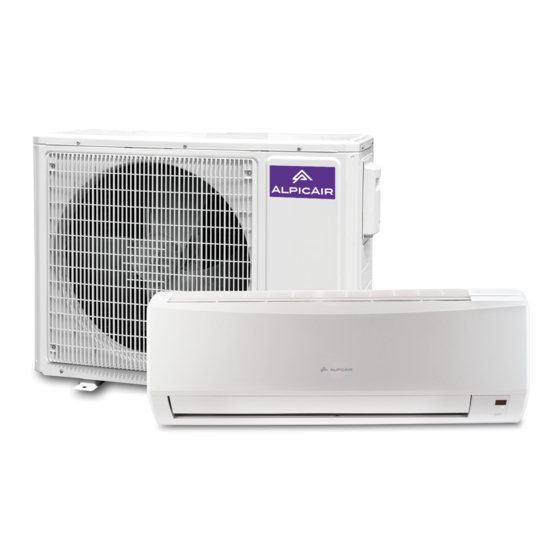

- Page 1 Split Air Conditioner Thank you for choosing our product. For proper operation, please read and keep this manual carefully .
- Page 3 AWI/O-25HPDC1C AWI/O-35HPDC1C AWI/O-53HPDC1C AWI/O-70HPDC1C...
-
Page 4: Table Of Contents
Content Operation Notices Precautions......................1 Parts Name......................2 Screen Operation Guide Buttons on remote controller .................3 Introduction for buttons on remote controller ............4 Function introduction for combination buttons ............8 Operation guide .....................9 Replacement of batteries in remote controller ............9 Emergency operation ..................10 Maintenance Clean and Maintenance.................. -
Page 5: Precautions
Precautions Warning ● Do not connect air conditioner to multi-purpose socket.Otherwise, it may ● Do disconnect power supply when cleaning air conditioner. Otherwise, it may cause electric shock. ● Do not spray water on indoor unit. It may cause electric shock or malfunction. ●... -
Page 6: Parts Name
Parts Name Indoor Unit panel air inlet air outlet horizontal louver display temp. indicator (Note: This dispaly is not available for some models.) drying indicator cooling indicator AUTO HEALTH X-FAN HUMIDITY FILTER TURBO power indicator HOUR heating indicator ON/OFF ON/OFF MODE receiver window aux.button... -
Page 7: Buttons On Remote Controller
Buttons on remote controller ON/OFF button AUTO HEALTH X-FAN MODE button HUMIDITY FILTER +/- button TURBO FAN button HOUR ON/OFF button button ON/OFF MODE HEALTH SAVE button X-FAN button TEMP button TIMER button TURBO button X-FAN TEMP TIMER SLEEP button TURBO SLEEP LIGHT... -
Page 8: Introduction For Buttons On Remote Controller
Introduction for buttons on remote controller Note: ● After putting through power, air conditioner will give out a sound and operation indicator " " is ON (red indicator). You can operate the air conditioner through the remote controller. ● At ON status, after each pressing button on remote controller, the signal icon " "... - Page 9 Introduction for buttons on remote controller Note: For preventing cold wind, after starting up heating mode, indoor fan will blow fan afterdelaying 1-5min. (Details time is decided by indoor ambient temperature) Temperature setting range on remote controller: 16℃ -30℃ . Fan speed setting range: auto, low speed, medium speed and high speed.
- Page 10 Introduction for buttons on remote controller button Press this button can select left&right swing. Swing angle can be selected circularly in sequence as below: no display (horizontal louvers stops (swing angle is dis- at current position) played dynamically) ● When selecting " "...
- Page 11 Introduction for buttons on remote controller to operate for a while at low speed to dry the residual water inside the indoor unit. ● When the unit operates under X-FAN mode, press "X-FAN" button can turn off X-FAN function. Indoor fan stops operation immediately. TEMP button Press this button can see indoor set temperature, indoor ambient temperature or outdoor ambient temperature on indoor unit’s display.
-
Page 12: Function Introduction For Combination Buttons
Introduction for buttons on remote controller TURBO button When pressing this button under cooling or heating mode, air conditioner will enter into quick cooling or quick heating mode. The character of "TURBO" is displayed on remote controller. Press this button again to exit turbo function and the character of "TURBO"... -
Page 13: Operation Guide
Operation guide 1. After putting through the power, press " " button on remote controller to ON/OFF turn on the air conditioner. 2. Press " " button to select your required mode: AUTO, COOL, DRY, FAN, MODE HEAT. 3. Press "+" or "-" button to set your required temperature. (Temperature can’t be adjusted under auto mode). -
Page 14: Emergency Operation
Emergency operation If remote controller is lost or damaged, please use auxiliary button to turn on or turn off the air conditioner. The operation in details are as below: air conditioner. When the air conditioner is turned on, it will operate under auto mode. -
Page 15: Clean Filter
Clean and Maintenance Clean filter Open panel Clean filter Pull out the panel to a certain ● Use dust catcher or water to angle as shown in the fig. clean the filter. ● When the filter is very dirty, use the water (below 45℃... - Page 16 Clean and Maintenance Checking before use-season 1. Check whether air inlets and air outlets are blocked. 2. Check whether circuit break, plug and socket are in good condition. 3. Check whether filter is clean. 4. Check whether mounting bracket for outdoor unit is damaged or corroded. If yes, please contact dealer.
-
Page 17: Malfunction Analysis
Malfunction analysis General phenomenon analysis Please check below items before asking for maintenance. If the malfunction still can’t be eliminated, please contact local dealer or qualified professionals. Phenomenon Check items Solution ● Whether it's interfered severely ● Pull out the plug. Reinsert (such as static electricity,stable the plug after about 3min, and voltage)? - Page 18 Malfunction analysis Phenomenon Check items Solution ● Power failure? ● Wait until power recovery. ● Is plug loose? ● Reinsert the plug. ● Circuit break trips off or fuse is ● Ask professional to replace burnt out? circuit break or fuse. Air condit- ●...
- Page 19 Malfunction analysis Phenomenon Check items Solution ● Whether there’s odour source, ● Eliminate the odour source. Odours are such as furniture and cigarette, emitted ● Clean the filter. etc. ● Whether there’s interference, ● Disconnect power, put back Air conditioner such as thunder, wireless power, and then turn on the operates nor-...
-
Page 20: Error Code
Malfunction analysis Error Code ● When air conditioner status is abnormal, temperature indicator on indoor unit will ation of error code. Error code Above indicator diagram is only (Note: This dispaly is not for reference. Please refer to available for some models.) actual product for the actual Indoor display indicator and position. -
Page 21: Installation Dimension Diagram
Installation dimension diagram Space to the wall At least 15cm At least 15cm Space to the wall Drainage pipe... -
Page 22: Tools For Installation
Tools for installation 1 Level meter 2 Screw driver 3 Impact drill 4 Drill head 5 Pipe expander 6 Torque wrench 7 Open-end wrench 8 Pipe cutter 9 Leakage detector 10 Vacuum pump 11 Pressure meter 12 Universal meter 13 Inner hexagon spanner 14 Measuring tape Note: ●... -
Page 23: Requirements For Electric Connection
Requirements for electric connection Safety precaution 1. Must follow the electric safety regulations when installing the unit. circuit break. 3. Make sure the power supply matches with the requirement of air conditioner. Unstable power supply or incorrect wiring or malfunction. Please install proper power supply cables before using the air conditioner. -
Page 24: Installation Of Indoor Unit
Installation of indoor unit Step one: choosing installation location rm it with the client. Step two: install wall-mounting frame 1. Hang the wall-mounting frame on the wall; adjust it in horizontal position with the plastic expansion particles in the holes. 3. - Page 25 Installation of indoor unit Indoor outdoor Note: ● Pay attention to dust prevention and take relevant safety measures when opening the hole. ● The plastic expansion particles are Φ55/ 5-10 not provided and should be bought Φ70 locally. Step four: outlet pipe 1.
- Page 26 Installation of indoor unit Hex nut diameter Tightening torque (N . m) open-end wrench Φ 6 15~20 Φ 9.52 30~40 union nut Φ 12 40~55 pipe Φ 16 60~65 torque wrench Φ 19 70~75 indoor pipe 4. Wrap the indoor pipe and joint of con- nection pipe with insulating pipe, and then wrap it with tape.
- Page 27 Installation of indoor unit 2. Make the power connection wire go cable-cross through the cable-cross hole at the back hole of indoor unit and then pull it out from the front side. power connection wire 3. Remove the wire clip; connect the power connection wire to the wiring terminal according to the color;...
- Page 28 Installation of indoor unit Step eight: bind up pipe 1. Bind up the connection pipe, power drain hose connection pipe band cord and drain hose with the band. indoor and outdoor power cord indoor unit pipe indoor power cord liquid pipe 3.
-
Page 29: Installation Of Outdoor Unit
Installation of outdoor unit Step one: fix the support of outdoor unit (select it according to the actual installation situation) 1. Select installation location according to the house structure. 2. Fix the support of outdoor unit on the selected location with expansion screws. Note: ●... - Page 30 Installation of outdoor unit Step four: connect indoor and outdoor pipes 1. Remove the screw on the right han- 3. Pretightening the union nut with dle of outdoor unit and then remove hand. the handle. pipe joint screw union nut handle 2.
- Page 31 Installation of outdoor unit 2. Fix the power connection wire and signal control wire with wire clip (only for cooling and heating unit). Note: ● After tighten the screw, pull the power cord slightly to check if it is firm. ●...
-
Page 32: Vacuum Pumping
Vacuum pumping Use vacuum pump 1. Remove the valve caps on the liquid valve and gas liquid valve piezometer valve and the nut of refri- gas valve gerant charging vent. refrigerant charging 2. Connect the charging hose valve cap vent of piezometer to the refri- gerant charging vent of gas nut of refrigerant... -
Page 33: Check After Installation
Check after installation ● Check according to the following requirement after finishing installation. Items to be checked Possible malfunction Has the unit been installed firmly? The unit may drop, shake or emit noise. Have you done the refrigerant leakage It may cause insufficient cooling test? (heating) capacity. -
Page 34: Install Snow Guard (Optional)
Install snow guard (Optional) In consideration of snow during installation of outdoor units Note: It is required to equip snow guard and a higher foundation base to prevent snow from covering air inlet and outlet. Correct Incorrect The snow guard shall be wider than the air conditioner. - Page 35 Configuration of connection pipe 1. Standard length of connection pipe ● 5m, 7.5m, 8m. 2.Min. length of connection pipe is 3m. 3.Max. length of connection pipe and max. high difference. Max length Max length Cooling Max height Cooling Max height of connec- of connec- capacity...
- Page 36 Configuration of connection pipe Additional refrigerant charging amount for R22, R407C, R410A and R134a Diameter of connection pipe Outdoor unit throttle Liquid pipe(mm) Gas pipe(mm) Cooling only(g/m) Cooling and heating(g/m) Φ6 Φ9.52 or Φ12 Φ6 or Φ9.52 Φ16 or Φ19 Φ12 Φ19 or Φ22.2 Φ16...
-
Page 37: Pipe Expanding Method
Pipe expanding method Note: Improper pipe expanding is the main cause of refrigerant leakage. Please expand the pipe according to the following steps: A: Cut the pipe E: Expand the port ● Confirm the pipe length according to ● Expand the port with expander. the distance of indoor unit and hard outdoor unit. - Page 40 66129914749...
