INSTALLATION
PLACING THE CIRCUIT BREAKER IN THE
CELL (cont'd)
Grasp the handles on the breaker with both
hands and, while lifting the interlock release
lever with the left hand, insert the breaker into
the cell (
Fig. 19.
Continue to roll the breaker into the cell until the
arrow
on
the
front
DISCONNECTED position (Fig. 20), then
release the lever.
Check to make sure the
interlock release lever has returned to its
original lowered position.
Insert the breaker holding pin.
To avoid damage to the
CAUTION
equipment and possible
injury, do not remove the
holding pin unless the
circuit breaker is being
removed from the cell.
Buy: www.ValinOnline.com | Phone 844-385-3099 | Email: CustomerService@valin.com
cover
indicates
the

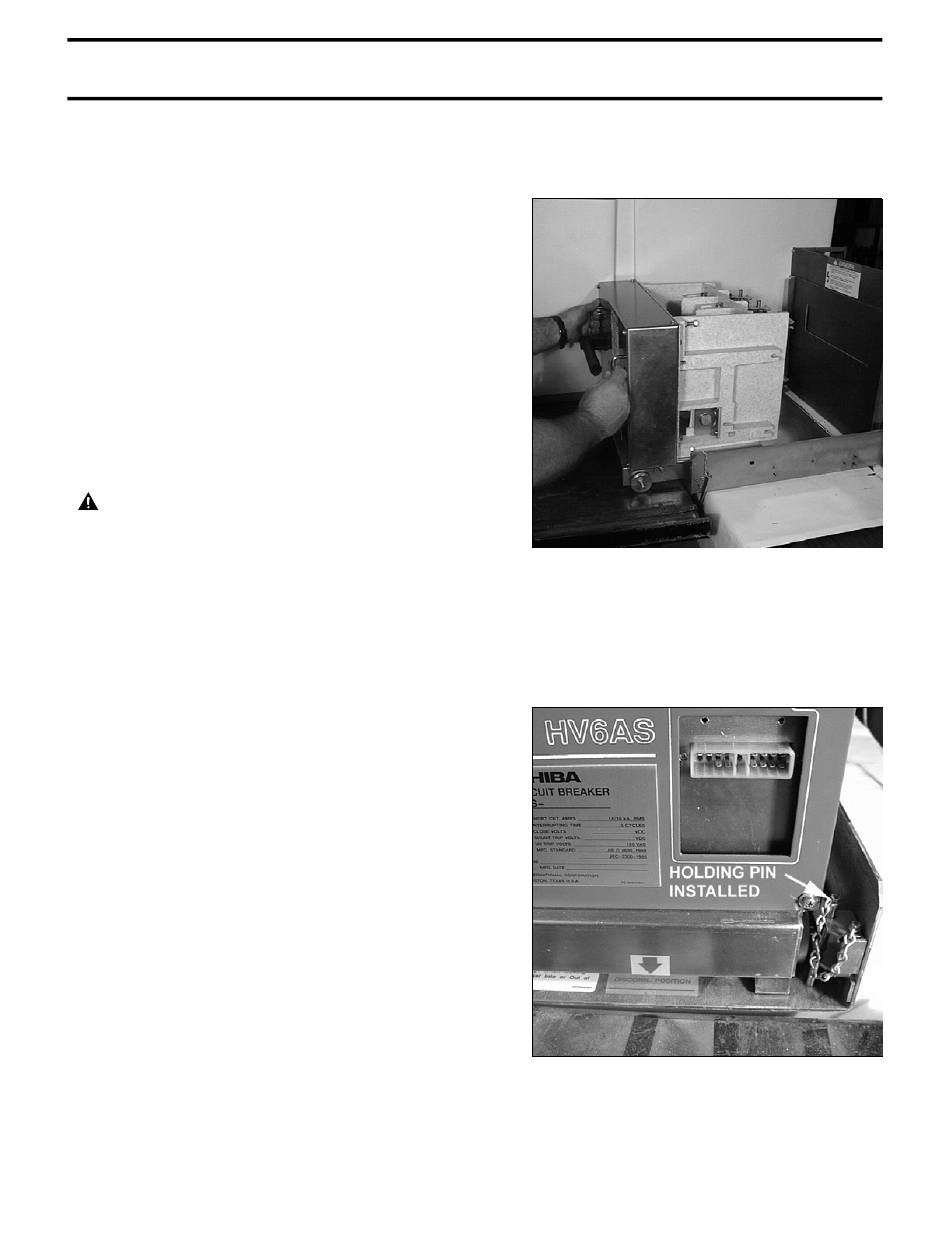

Fig. 19 Inserting Breaker into Cell
Fig. 20 Breaker at DISCONNECTED Position
Page 17
