INSTALLATION
Page 15

CONTROL CIRCUIT CONNECTIONS

Control circuit wiring is connected to the circuit
breaker by means of a control plug (green
color) located on the breaker front panel (Fig.
15). A control wire harness (Fig. 16) is furnished
with
the
circuit
breaker
for
making
this
connection.
Using the supplied harness, connect control
wiring in accordance with the appropriate wiring
diagram shown in Fig. 31 in the OPERATION
section of this manual.

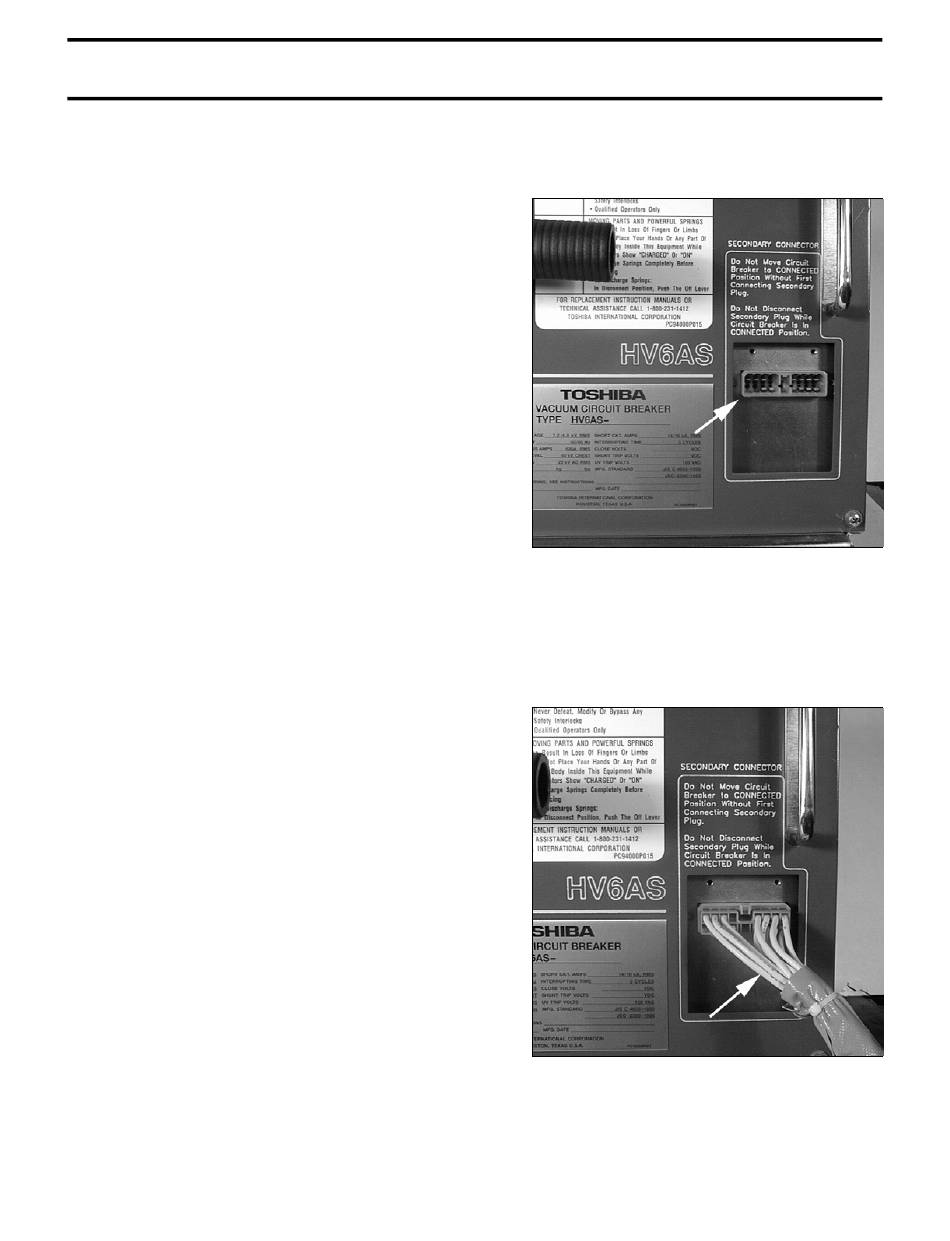

Fig. 15 Control Circuit Plug
Fig. 16 Control Wire Harness
