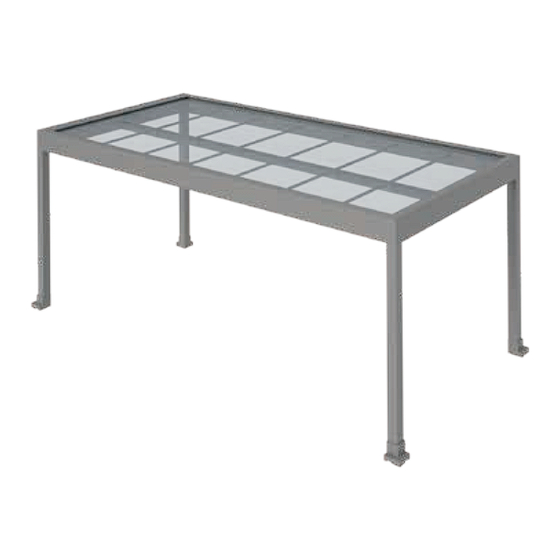

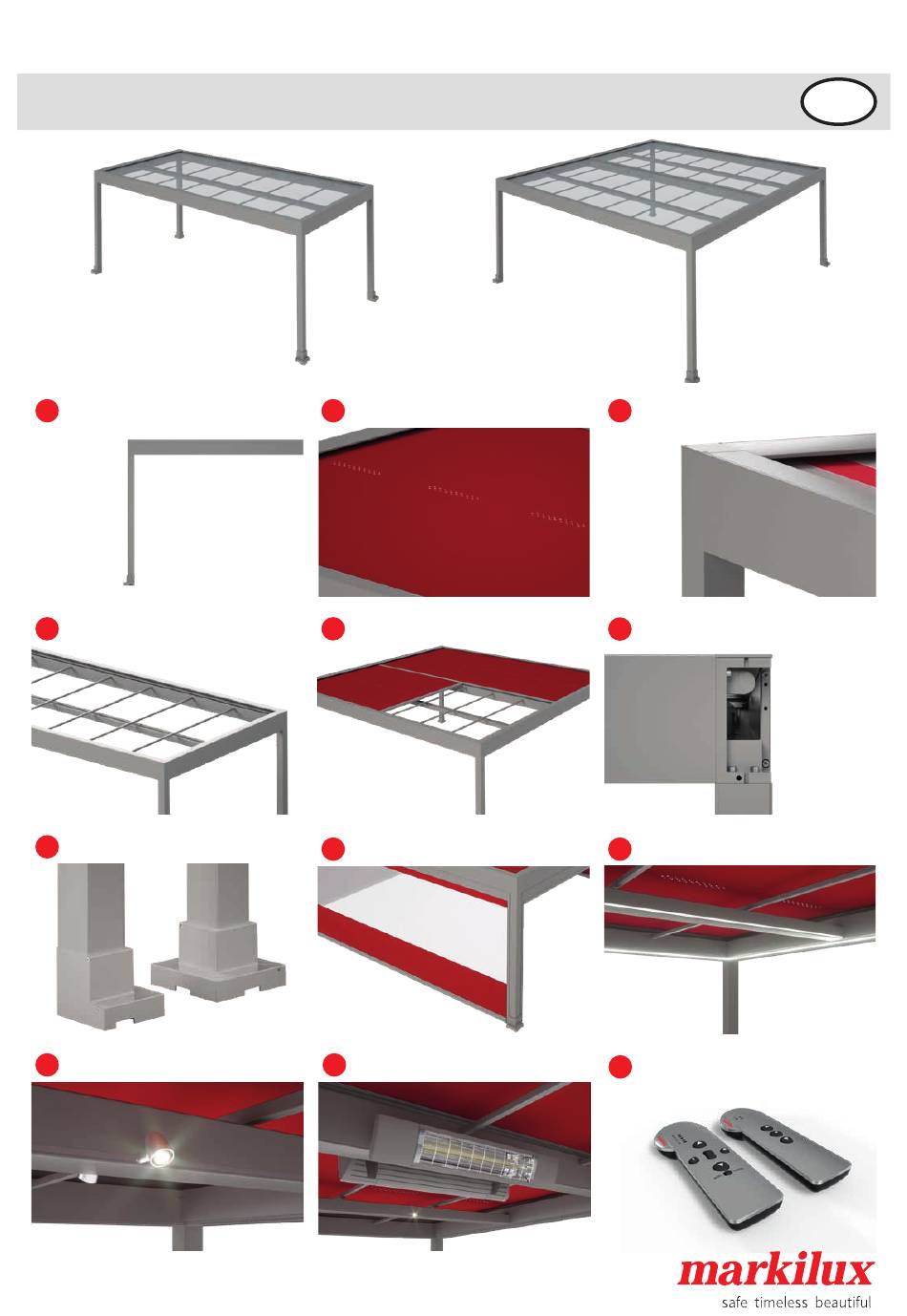

1 field, 1 motor
Perfectly horizontal system appea-
1
rance
4
Cover support profiles
Asymmetrical and symmetrical 1) post
7
bases
10
LED spotlights at the front gutter 1)
1) Optional configuration
20-03-2019
7062217
2 fields, 2 motors
Central water drain in extension direc-
2
tion
Fields can be moved separately (2 field
5
awning)
Combination with markilux 625 tracfix
8
and markilux 776 tracfix 1)
11
Integrated markilux infrared heater 1)
Individual ambience thanks to extensi-
3
ve pattern range
Comfortable cleaning option of the
6
frame inside
LED line in frame and in the front gutter
9
1)
Radio remote-controlled drive io mar-
12
kilux hand-held transmitter standard
GB
Advertisement
Table of Contents
Related Manuals for Markilux Markant
Summary of Contents for Markilux Markant
- Page 1 Fields can be moved separately (2 field Comfortable cleaning option of the Cover support profiles awning) frame inside Combination with markilux 625 tracfix LED line in frame and in the front gutter Asymmetrical and symmetrical 1) post and markilux 776 tracfix 1) bases...
-
Page 2: Table Of Contents
Table of contents markilux important notes Page Reading the instructions ................7 Awning with motorised operation ..............7 Modification or retrofitting ................7 Awning with lighting (optional) ..............8 1 field ....................................8 2 fields ....................................9 Replacement of a faulty illuminant for lighting ..........11 Overview spare parts lighting LED spotlights ........................11... -
Page 3: Markilux Important Notes
3. Reading of "Important Instructions" and the "Operating Instructions" The instructions handed by the authorized markilux specialist must be read before the first awning use. It is important to read all instructions for the safety of persons. All instructions are to be stored by the customer and have to be handed over to the new owner in case of an eventual transfer of the awning to Third Parties. - Page 4 (controlled circuit breakers from outside) must be actuated, so that every awning retraction and extension is made impossible. Persons not familiar with proper awning use must not operate them. markilux.com...
- Page 5 The durability of the fixtures should be checked on an annual basis by means of a visual inspection or by an annual servicing of the marklilux specialist dealer. If damages occur, an authorized markilux specialist is to be entrusted with the adjustment.
- Page 6 16. Tested awning cover The certificate "STANDARD 100 by OEKO-TEX®" guarantees that no harmful dyes or chemicals were used in the making of markilux sunsilk snc and sunvas snc awning covers. UPF = Ultraviolet Protection Factor Fabrics made of sunsilk snc and sunvas snc achieve the highest possible solar protection factor for textiles (UPF 50+).
-
Page 7: Reading The Instructions
After cooling down the motor switches itself on again in operating readiness. STOP Modification or retrofitting The following modifications can be carried out retrospectively on your awning by your markilux specialist. • Replacement of the awning cover • Installation of a motor •... -
Page 8: Awning With Lighting (Optional)
Operating instructions awning system Awning with shadeplus (optional) 1 field Variant 1: Variant 5: LED line in frame LED line in frame and LED spotlights at the front gutter Variant 2: LED line in the front gutter Variant 3:... -
Page 9: Fields
Operating instructions awning system 2 field Variant 1: Variant 5: LED line in frame LED line in the frame and LED spotlights at the front gutters Variant 2: LED line in the front gutters Variant 3: Variant 6 1):... - Page 10 Operating instructions awning system ATTENTION – risk of injury! The LED lights can heat up a lot! The lighting has to be switched off for some some minutes to cool down before you touch the individual lamps. ATTENTION: You must never hang any objects or similar in front of the lamps, and it should be ensured that there are no objects immediately underneath the projection profile both in retracted and in extended state.
-
Page 11: Replacement Of A Faulty Illuminant For Lighting
If an LED spotlight is defective you can change it yourself. ATTENTION: Regularly check the awning for signs of wear and tear at cables and lamps. If damages occur, an authorised markilux specialist dealer is to be entrusted with the adjustment. -
Page 12: Maintenance And Care
Operating instructions awning system Maintenance and care ATTENTION For awnings with a controller, the automatic control is to be switched off beforehand and the wind sensor secured by disconnecting the power supply! Kindly consult also the information sheet "Important instructions for the users …"... - Page 13 Operating instructions awning system Readjustment of the coupling guide track in the case of formation of water pockets 1. Attention: If water pockets form on the 2. Remove the cover plugs below the 3. Select the adjustment of the coupling side areas of the cover, the water cannot coupling guide track profile.
