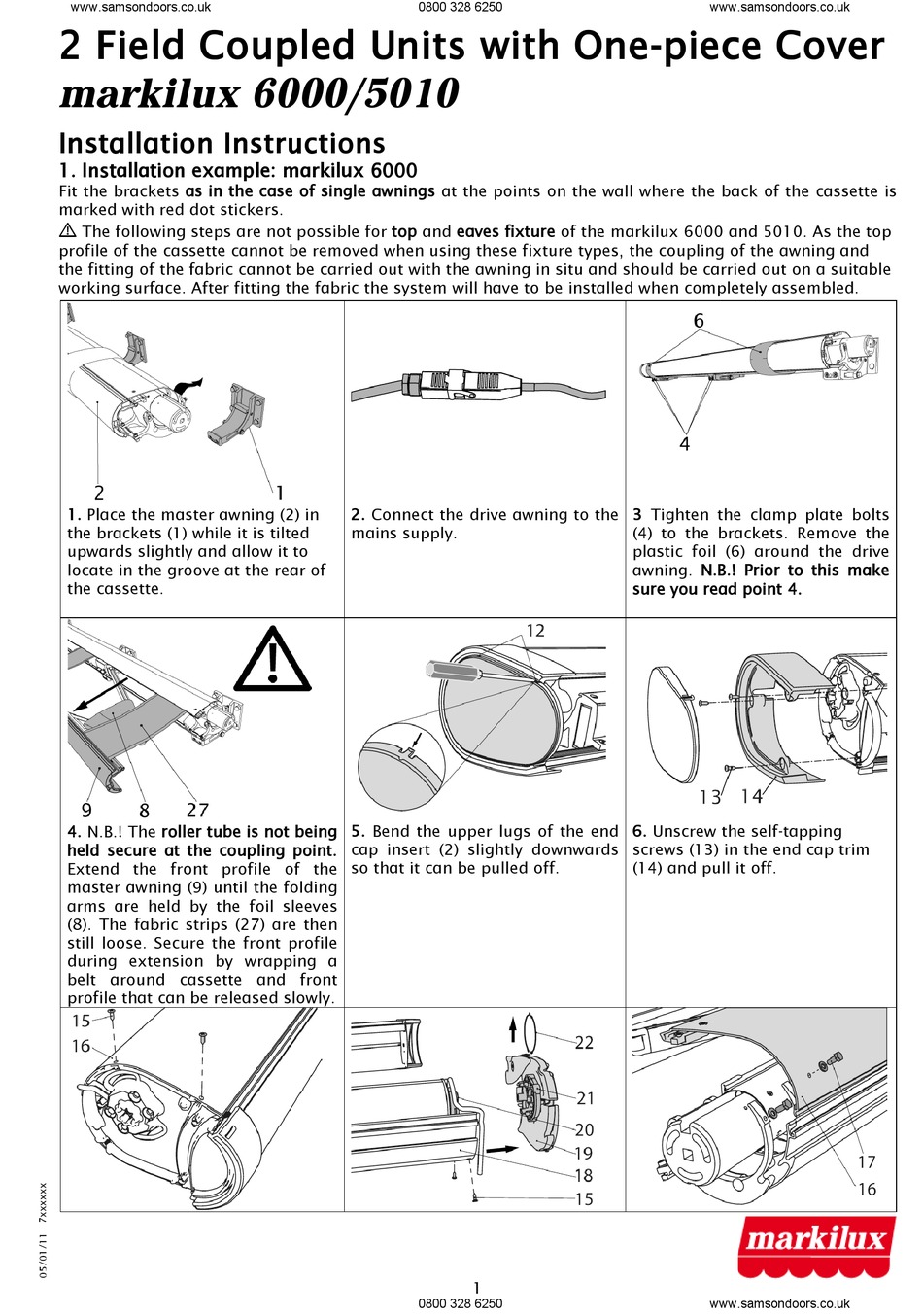

2 Field Coupled Units with One-piece Cover
markilux 6000/5010
Installation Instructions

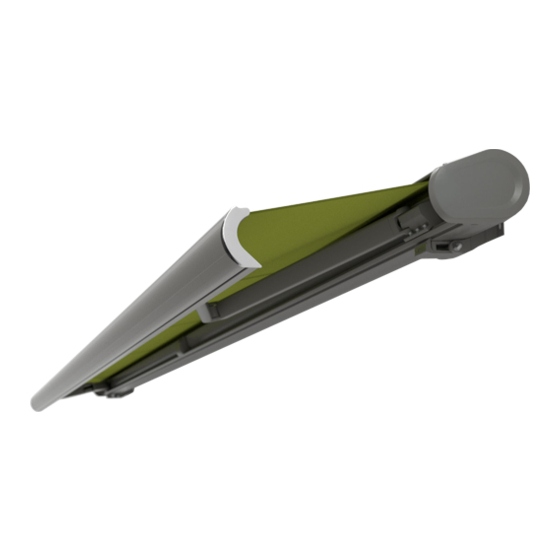

1. Installation example: markilux 6000
Fit the brackets as in the case of single awnings at the points on the wall where the back of the cassette is
marked with red dot stickers.

The following steps are not possible for top and eaves fixture of the markilux 6000 and 5010. As the top
profile of the cassette cannot be removed when using these fixture types, the coupling of the awning and
the fitting of the fabric cannot be carried out with the awning in situ and should be carried out on a suitable
working surface. After fitting the fabric the system will have to be installed when completely assembled.
1. Place the master awning (2) in
the brackets (1) while it is tilted
upwards slightly and allow it to
locate in the groove at the rear of
the cassette.
4. N.B.! The roller tube is not being
held secure at the coupling point.
Extend the front profile of the
master awning (9) until the folding
arms are held by the foil sleeves
(8). The fabric strips (27) are then
still loose. Secure the front profile
during extension by wrapping a
belt around cassette and front
profile that can be released slowly.
www.samsondoors.co.uk
0800 328 6250
2. Connect the drive awning to the
mains supply.
5. Bend the upper lugs of the end
cap insert (2) slightly downwards
so that it can be pulled off.
1
0800 328 6250
www.samsondoors.co.uk
3 Tighten the clamp plate bolts
(4) to the brackets. Remove the
plastic foil (6) around the drive
awning. N.B.! Prior to this make
sure you read point 4.
6. Unscrew the self-tapping
screws (13) in the end cap trim
(14) and pull it off.
