Markilux Syncra uno Mounting Instructions

Awning stand system for a folding-arm awning

Advertisement

Quick Links

markilux Awnings

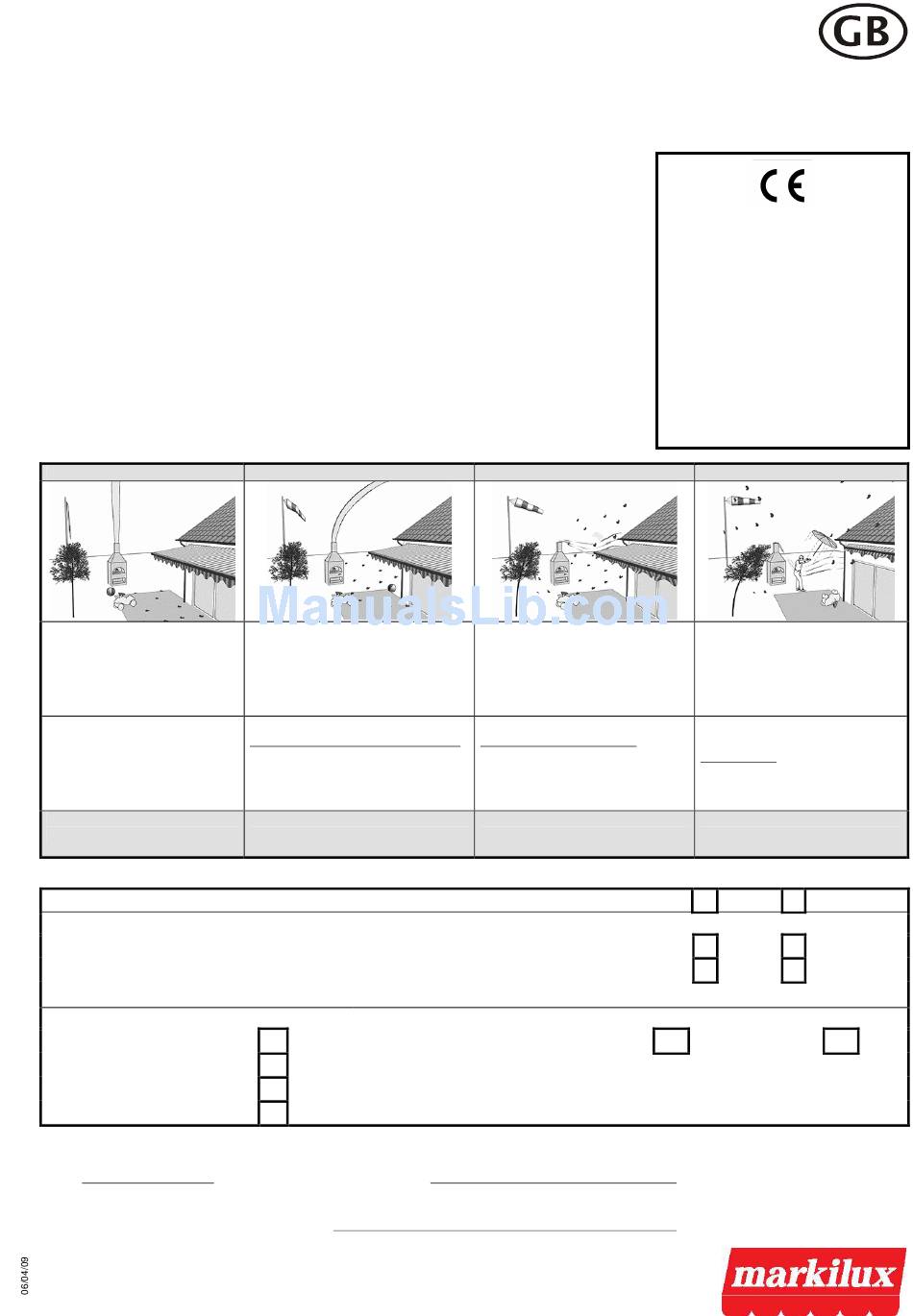

Handover declaration
To be passed on to the users of folding-arm awnings
The European standard DIN EN 13561 establishes the requirements for the
construction and fastening of awnings. The construction of this markilux awning
fulfills the requirements of the Wind Resistance Class 2 specified in the CE mark of
conformity. The wind resistance class describes the wind speed, at which an awning
may be used. If used above the approved wind speed, considerable dangers can
occur in rain and in snow, the awning can be destroyed or collapse. Which wind
resistance class the installation achieves, critically depends on the type and the
number of fastening materials as well as on the existing fastening background.
The awning may only be used up to the wind resistance class declared by the
installation firm. This can differ from the wind resistance class specified above in
the CE-mark of conformity.
In full knowledge of the local conditions and after completed installation, the
installation firm declares to the user, whether the wind resistance class specified by
markilux has been achieved in the installed state and documents the actual wind
resistance class achieved.
Automatic controllers are to be adjusted to the declared wind resistance class.
Wind resistance class 0
The Wind Resistance Class 0
represents either a
performance not required or
not measured or a product,
which does not fulfill the
requirements of class 1.
The awning may not be used
during wind.
Source: German Meteorological Service (DWD) – Offenbach, Wind Forces in Beaufort
The user has been properly instructed in the operation of the awning:
The user has been handed the following documentation:
The awning may be used under the following conditions:
Wind:
Rain:
Danger of frost and snow:
Date
:
Confirmation with the signature, of having received a duplicate of the handover declaration!
*
Wind resistance class 1
The awning may remain extended
up to maximum Wind Force 4.
Definition according to Beaufort:
Moderate breeze, moderate wind
Wind moves branches and thinner
boughs, raises dust and loose
paper.
Speed 20-27 km/h = 5.5-7.4 m/s
permitted
X
permitted
not permitted
not permitted
X
Signature of installation engineer:
Signature of user*:
Wind resistance class 2
The awning may remain
extended up to maximum Wind
Force 5.
Definition according to Beaufort:
Fresh breeze, fresh wind
Small deciduous trees begin to
sway, white foam caps form at
sea.
Speed 28-37 km/h = 7.5-10.4
m/s
Operating instructions
Installation and setting instructions
of the motor, switch and controller manufacturers, if available
up to Wind Resistance Class
with awning extended completely
at a pitch angle below 25% = 14°, measured from the horizontal
markilux
Schmitz-Werke GmbH & Co.
KG
Hansestraße 87
D-48282 Emsdetten
DIN EN 13561
Awnings for use on the
outside of buildings
Wind resistance class 2
Wind resistance class 3
At Wind Force 6 the awning
must be retracted!
Definition according to
Beaufort:
Strong wind
Heavy boughs sway, umbrellas
are difficult to hold, telephone
lines whistle in the wind.
Speed 38-48 km/h = 10.5-13.4
m/s
yes
no
yes
no
yes
no
= Wind force

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Syncra uno and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Markilux Syncra uno

  • Page 1 In full knowledge of the local conditions and after completed installation, the outside of buildings installation firm declares to the user, whether the wind resistance class specified by markilux has been achieved in the installed state and documents the actual wind Wind resistance class 2 resistance class achieved.
  • Page 2 In full knowledge of the local conditions and after completed installation, the outside of buildings installation firm declares to the user, whether the wind resistance class specified by markilux has been achieved in the installed state and documents the actual wind Wind resistance class 2 resistance class achieved.
  • Page 3: Table Of Contents

    Page 3 Preparation of the transverse brace Page 4 - 6 Preparation of the roof elements Page 7 syncra uno with markilux 6000, 5010, 1500, 1550, skylife 2, 1200, 990 Assembly of the posts Page 8 Installation of the transverse brace Page 9 6.1.
  • Page 4: Overview

    1.Overview Example: syncra uno with markilux 6000 = overall width of the unit = awning width = projection = unit height = headroom SAM = central posts' spacing dimensions in cm Raised-edge stone holder HB = on-site weight- ing via two raised-edge...
  • Page 5: Unit's Height (Ah) And Central Posts' Spacing(Sam)

    2. Unit's height (AH) and central posts' spacing(SAM) markilux syncra uno markilux 6000 markilux 5010 markilux 3300, 3300 pur with: 296 cm 294 cm 298 cm SAM: M - 18 cm M - 20 cm M - 11 cm Overall width:...
  • Page 6: Preparation Of The Transverse Brace

    3. Preparation of the transverse brace syncra uno with markilux 6000 Upper edge bracket (5) must be flush with upper edge cross beam (1) DHH = 20 mm syncra uno with markilux 5010 The distance upper edge bracket (5) to upper edge...
  • Page 7 1500, 1550, skylife 2, 1200 markilux 1500, 1550, skylife 2 DHH = 54 mm markilux 1200 DHH = 45 mm syncra uno with markilux 990 markilux 990 DHH = 7 mm 1 Cross beam 2 Roof bracket 3 Washer Ø...
  • Page 8 3300, 3300 pur Bracket 100 mm (bracket 60 mm dimension-dependent) syncra uno with markilux 3300, 3300 pur Bracket 200 mm 1 Cross beam 6 Washer Ø 13 8 Hexagonal head M 12 x 130 screw 10 Hexagonal nut...
  • Page 9: Preparation Of The Roof Elements

    4.Preparation of the roof elements (for example markilux 6000) syncra uno with markilux 6000, 5010, 1500, 1550, skylife 2, 1200, 990 For syncra with markilux 3300, 3300 pur: Proceed directly with point 5! 1. Insert the square plug (1) in the transverse brace 1 Square plug (2).
  • Page 10: Assembly Of The Posts

    5. Assembly of the posts 1. Place the adjustable feet (1) on the ground. Screw the post (2) to the circular tube (3). Sub- sequently join the post and circular tube to the adjustable foot (1). Adjustable foot Post Circular tube Hexagonal nut M 10 Washer Ø...
  • Page 11: Installation Of The Transverse Brace

    6.1. Assembly of the transverse brace (for example markilux 6000) syncra uno with markilux 6000, 5010, 3300, 3300 pur, 1500, 1550, skylife 2, 1200 For syncra uno with markilux 990: see point 6.2 Lower transverse brace (1) onto the posts' (6) upper brackets.
  • Page 12: Hanging Up The Awnings

    Hang up the awnings as described in the respective instructions and set at a pitch of 15 ° . For syncra uno with markilux 6000, 5010, 1500, 1550, skylife 2, 1200, 990 assemble the pre-prepared roof elements after having hung up.
  • Page 13: Mount Covering Elements

    Mount covering elements syncra uno with markilux 3300, 3300 pur 1. Unscrew the rear screws (1) of the awning's casing Slotted pan-head screw 4.8 x 9.5 cover (2). Lateral casing cover markilux 2. Screw the frontal covering plate (3) to the awning 3300/3300 pur with the included slotted pan-head screws (4) (4.8 x...
