Technical Information

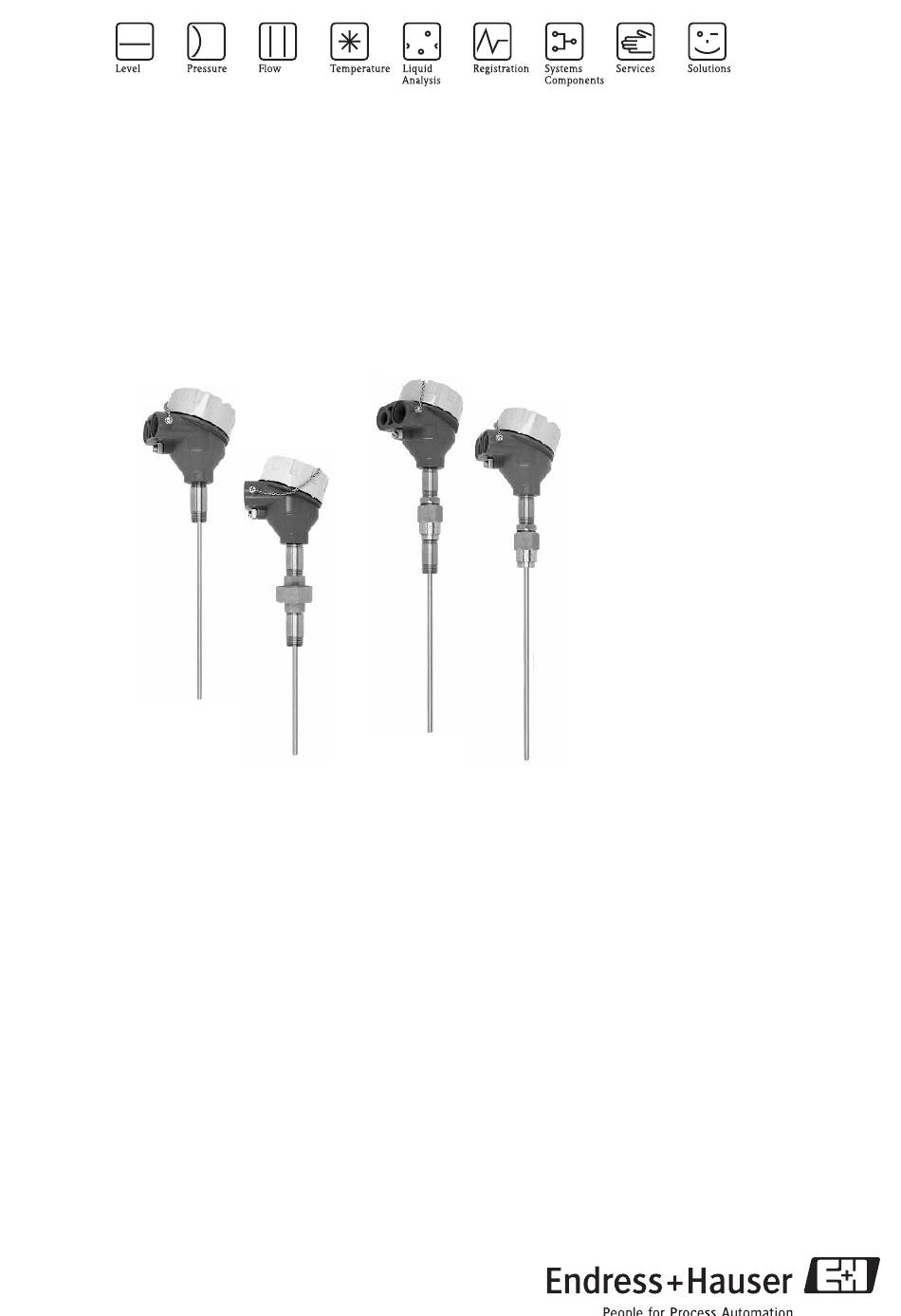

Omnigrad S -TR62
RTD thermometer EEx-d or EEx-ia certified, replaceable inset , complete
of niple and union to thermowell connection
PCP (4...20 mA), HART® or PROFIBUS-PA® electronics
Range of uses

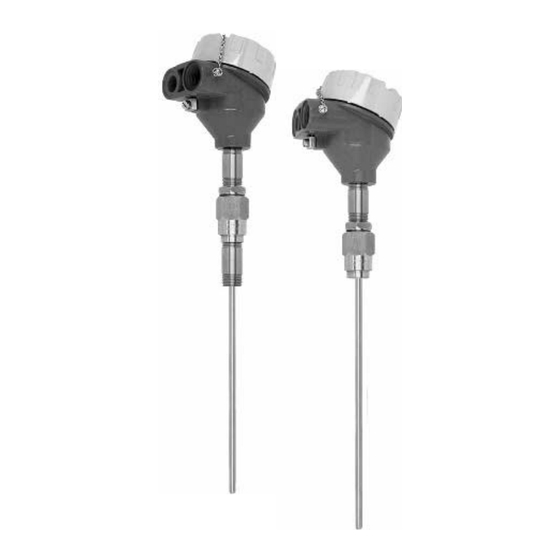

The Omnigrad S TR62 is an RTD industrial thermometer,
developed for heavy duty and/or generic industrial applica-
tions.
In compliance to EN 50014/18 (ATEX certification) it is there-
fore particularly suitable also for hazardous areas.
When required, it's also available with a transmitter(PCP,
HART® or PROFIBUS-PA®) into the housing.
The TR62 is available in several standard versions and different
configurations, can also be configured with specific dimensions
and characteristics depending on process requirements.
The installation on the plants, require separately order of the
thermowell (form pipe or from bar-stock).
Application areas
• Chemicals industry
• Energy industry
• Gas Processing industry
• Petrochemical industry
• General industrial services
TI281T/02/en
Features and benefits
• Customized immersion length
• Aluminium housing, with protection grade from IP66 / IP 68
• PCP, HART® and PROFIBUS-PA®, (4...20 mA 2-wire trans-
mitters)
• Thermoresistance insert insulated with mineral oxide cable
(MgO cable) diameter: 3 or 6 mm
• Pt100 sensing element with accuracy in class A or 1/3 DIN B
(IEC 60751)
• The Pt100 available are: wire-wound WW (-200...600°C) or
thin-film TF (-50...400°C)
• Single or double Pt100 to 2,3 or 4 wires connection
• ATEX II 1/2 GD EEx-ia IIC certification
• ATEX II 2 G EEx-d IIC certification
