TI01348T/09/EN/01.17
71362828
Products
Technical Information

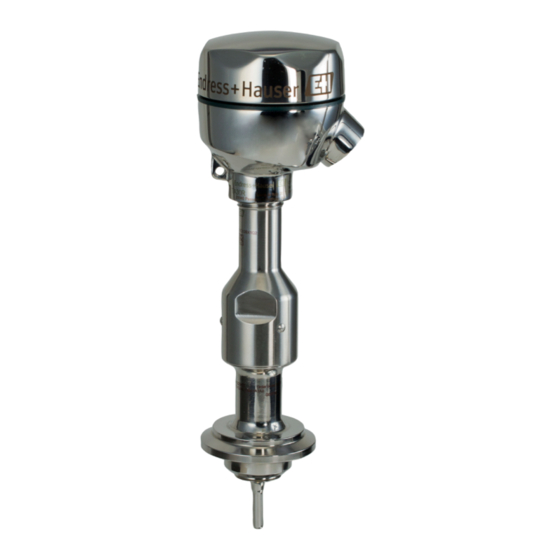

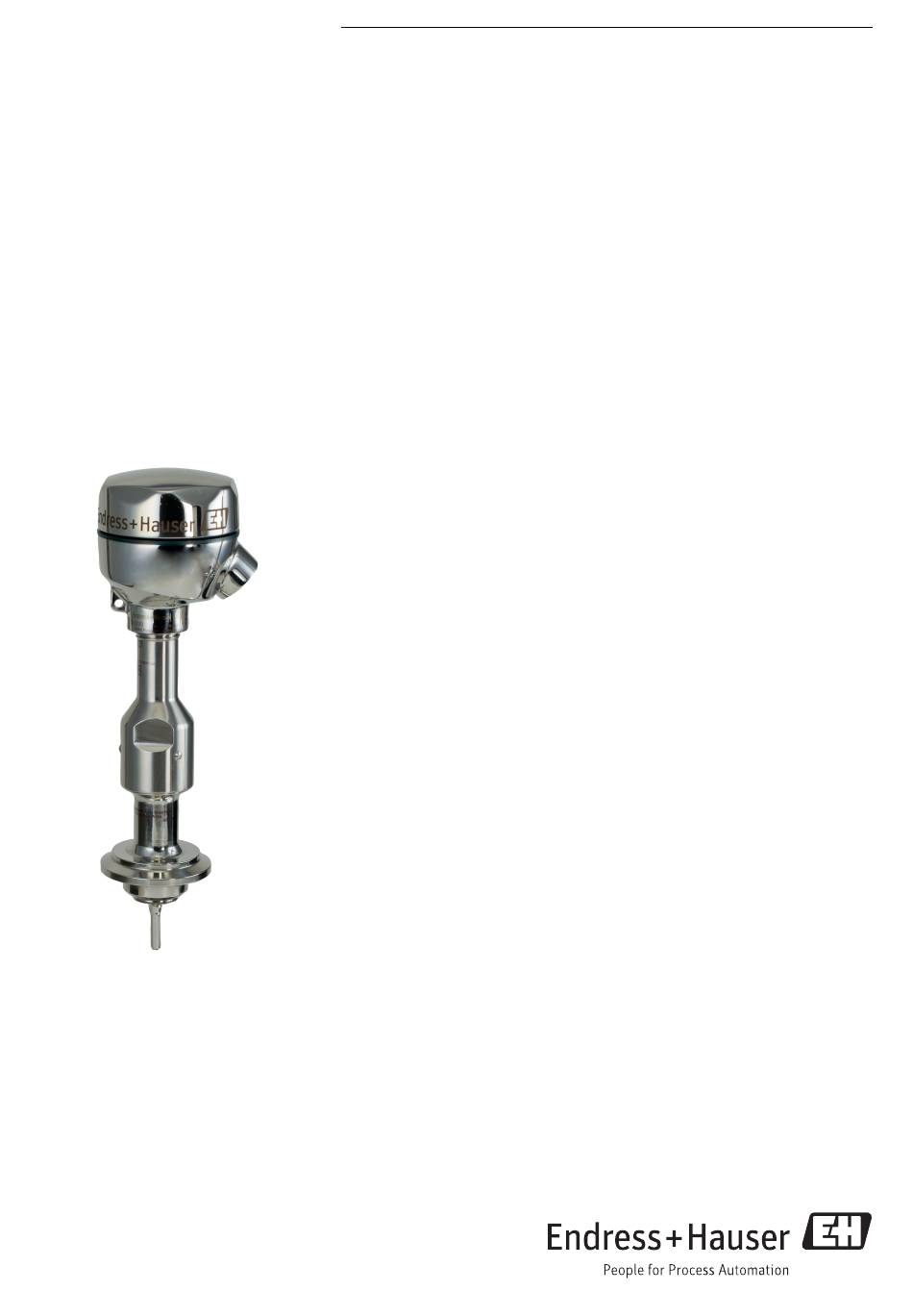

iTHERM TM412
Trend-setting, modular resistance thermometer
for hygienic and aseptic applications
Easy-to-use imperial version with outstanding
sensor technology
Applications
• Specially designed for use in hygienic and aseptic applications in the Food &
Beverages and Life Sciences industries
• Measuring range: –200 to +600 °C (–328 to +1 112 °F)
• Pressure range up to 40 bar (580 psi)
• Protection class: up to IP69K
Head transmitter
All Endress+Hauser transmitters are available with enhanced accuracy and reliability
compared to directly wired sensors. Easy customizing by choosing one of the
following outputs and communication protocols:
• Analog output 4 to 20 mA, HART
• PROFIBUS
®
PA, FOUNDATION Fieldbus™
Your benefits
• User-friendly and reliable from product selection to maintenance
• iTHERM inserts: globally unique, automated production. Full traceability and
consistently high product quality for reliable measured values
• iTHERM QuickSens: fastest response times (t
• iTHERM StrongSens: unsurpassed vibration resistance (> 60g) for ultimate plant
safety
• iTHERM QuickNeck – cost and time savings thanks to simple, tool-free
recalibration
• iTHERM TA30R: 316L terminal head for easier handling and lower installation
and maintenance costs, and with highest IP69K rating
• International certification: explosion protection e.g. ATEX/IECEx/FM/CSA and in
compliance with hygiene standards according to 3-A
TSE Certificate of Suitability
Solutions
®
: 1.5 s) for optimum process control
90s
®
, EHEDG, ASME BPE, FDA,
Services
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Endress+Hauser iTHERM TM411
Summary of Contents for Endress+Hauser iTHERM TM411
- Page 1 • Pressure range up to 40 bar (580 psi) • Protection class: up to IP69K Head transmitter All Endress+Hauser transmitters are available with enhanced accuracy and reliability compared to directly wired sensors. Easy customizing by choosing one of the following outputs and communication protocols: •...
-
Page 2: Table Of Contents
Extension neck ......28 Process connections ......29 Endress+Hauser... -
Page 3: Function And System Design
These resistance thermometers use a Pt100 temperature sensor according to IEC 60751. The temperature sensor is a temperature-sensitive platinum resistor with a resistance of 100 Ω at 0 °C (32 °F) and a temperature coefficient α = 0.003851 °C Endress+Hauser... -
Page 4: Measuring System
IEC 60751 can only be observed with TF sensors at temperatures up to approx. 300 °C (572 °F). Measuring system Endress+Hauser offers a complete portfolio of optimized components for the temperature measuring point – everything you need for the seamless integration of the measuring point into the overall facility. -
Page 5: Modular Design
• iTHERM QuickNeck: tool-free removal of the insert: – Saves time/costs on frequently calibrated measuring points – Wiring mistakes avoided • IP69K protection: safety under extreme process conditions A0034469 5: Process connection Wide range of different versions. → 29 Endress+Hauser... -
Page 6: Input
They offer a high degree of flexibility, thereby supporting universal application with low inventory storage. The iTEMP transmitters can be configured quickly and easily at a PC. Endress+Hauser offers free configuration software which can be downloaded from the Endress+Hauser Website. More information can be found in the Technical Information. -
Page 7: Wiring
Conversion of various input signals into digital output signals. High accuracy over the complete ambient temperature range. All transmitters are released for use in all important process control systems. The integration tests are performed in Endress+Hauser' s "System World". For more information, see the Technical Information. → 39 Advantages of the iTEMP transmitters: •... -
Page 8: Cable Entries
Sensor 1 field transmitter and analog output 4 to 20 mA, or bus connection Sensor 2 Sensor 1 (green) 4 3-wire 4-wire (white) (red) (white) (red) (black) 5 (black) 6 A0034450-EN Cable entries See the ' T erminal head' section Endress+Hauser... -
Page 9: Connectors
TM412 Connectors Endress+Hauser offers a wide variety of connectors for the simple and fast integration of the thermometer into a process control system. The following tables show the PIN assignments of the various plug connector combinations. Abbreviations Order: first transmitter/insert... - Page 10 The bus address is set to the default value and, if necessary, must be changed manually before commissioning. Only in the terminal head with a high cover, only 1 transmitter possible. A ceramic terminal block is automatically fitted on the insert. Endress+Hauser...
-
Page 11: Overvoltage Protection
Overvoltage protection To protect against overvoltage in the power supply and signal/communication cables for the thermometer electronics, Endress+Hauser offers the HAW562 surge arrester for DIN rail mounting and the HAW569 for field housing installation. For more information see the Technical Information ' H AW562 Surge arrester' TI01012K and ' H AW569 Surge arrester' TI01013K. -
Page 12: Influence Of Ambient Temperature
In addition to the measurement current, the size of the measurement error is also affected by the temperature conductivity and flow velocity of the process. This self- heating error is negligible when an Endress+Hauser iTEMP temperature transmitter (very small measurement current) is connected. -
Page 13: Calibration
Endress+Hauser offers this kind of sensor-transmitter matching as a separate service. Furthermore, the sensor-specific polynomial coefficients of platinum resistance thermometers are always provided on every Endress+Hauser calibration certificate where possible, e.g. at least three calibration points, so that users themselves can also appropriately configure suitable temperature transmitters. - Page 14 If this is not possible for the calibration, it is advisable to use a connector. → 28 Advantages of iTHERM QuickNeck: • Considerable time savings when recalibrating the device (up to 20 minutes per measuring point) • Wiring mistakes avoided when re-installing • Minimum plant downtime, thereby saving costs Endress+Hauser...
-
Page 15: Insulation Resistance
This immersion depth corresponds to the minimum insertion length for the calibration. → 13 • ATEX certification: Observe the installation instructions in the Ex documentation! → 39 Endress+Hauser... - Page 16 70 mm (2.75 in). A0008947 4 Process connections for thermometer installation in pipes with small nominal diameters ® Varivent process connection type N for DN40 Tee or elbow thermowell (illustrated) for weld-in as per DIN 11865 / ASME BPE Endress+Hauser...
- Page 17 As a general rule, the thermometers should be installed in such a way that does not impact their ability to be cleaned (the requirements of the 3-A Sanitary Standard must be observed). The Varivent ® and Liquiphant-M weld-in adapter enable flush-mounted installation. Endress+Hauser...
-
Page 18: Environment
As per EN 60654-1, Class C Max. IP69K, depending on the design (terminal head, connector, etc.) Degree of protection The Endress+Hauser inserts meet the requirements of IEC 60751 which specify shock and vibration Shock and vibration resistance resistance of 3g in the range from 10 to 500 Hz. The vibration resistance at the measuring point... -
Page 19: Medium - State Of Aggregation
Medium water at T = 50 °C (122 °F) Medium superheated steam at T = 400 °C (752 °F) Immersion length exposed to flow Flow velocity Gaseous or liquid (also with high viscosity, e.g. yogurt). Medium - state of aggregation Endress+Hauser... -
Page 20: Mechanical Construction
Thermometer with quick-fastening iTHERM QuickNeck complete, for connection thread ½" NPT Thermometer with 1¼" x 18 UNEF thread Insert length ILa Insert length (without nipple) Length of the extension neck available at point of installation (provided one is available) Endress+Hauser... - Page 21 Version 1, 2, 4 and 5 ILa = U + T +38.1 mm (1.5 in) Version 3 ILa = U + T +19.05 mm (0.75 in) ILa = Insert length (without nipple); U = Protection tube immersion length; T = Protection tube shaft length Endress+Hauser...
- Page 22 Thermometer with quick-fastening iTHERM QuickNeck and Tri-clamp process connection Thermometer with extension hex nipple and Tri-clamp process connection Thermometer with extension hex nipple and Varivent® process connection Thermometer with extension hex nipple and Liquiphant adapter Thermometer with cylindrical weld-in adapter Insert length Protection tube immersion length Endress+Hauser...
- Page 23 Class A or AA or AA class 6.35 mm (¹⁄₄ in); Diameter 6.35 mm (¹⁄₄ in) 6 mm (0.24 in) 6 mm (0.24 in) 3 mm (0.12 in) 3 mm (0.12 in) Recommended for immersion lengths U < 70 mm (2.75 in) Endress+Hauser...
-
Page 24: Weight
Specifications without head transmitter installed. For ambient temperatures with head transmitter installed, see the ' E nvironment' section. → 18 As a special feature, Endress+Hauser offers terminal heads with optimized terminal accessibility for easy installation and maintenance. Endress+Hauser... - Page 25 • Head color: blue, RAL 5012 • Cap color: gray, RAL 7035 (1.1) 78 (3.1) • Weight: 390 g (13.75 oz) • Ground terminal, internal and external A0009822 • Available in conjunction with 3-A marked sensors Endress+Hauser...
- Page 26 • Protection armature connection: M24x1.5 or ½" NPT • Ground terminal: internal in standard version; external terminal optionally available • Available in conjunction with 3-A marked sensors 64 (2.52) A0017145 * Dimensions of version with display window in cover Endress+Hauser...
- Page 27 M20x1.5 • Protective assembly connection: ½" NPT • Color: white (1.1) • Weight: approx. 100 g (3.5 oz) • Ground terminal: only internal via auxiliary terminal 78 (3.1) • Available in conjunction with 3-A marked sensors 122 (4.8) A0017146 Endress+Hauser...
-
Page 28: Extension Neck
–30 to +90 °C (–22 to +194 °F) Extension neck Standard version of extension neck, or optionally with the quick-fastening iTHERM QuickNeck. • Tool-free removal of the insert: – Saves time/costs on frequently calibrated measuring points – Wiring mistakes avoided • IP69K protection class Endress+Hauser... -
Page 29: Process Connections
T = min. 50.8 mm (2 in) EHEDG certification Cylindrical 1" NPS d = 1" NPS, h = 38.1 mm (1.5 in), U = • ASME BPE compliance immersion length from lower edge of thread, T = min. 50.8 mm (2 in) A0033743 Endress+Hauser... - Page 30 • With 3-A symbol and (1.22 in) (4.13 in) (0.87 in) 10 bar EHEDG certification (145 psi) Type F 50 mm 145 mm 135 mm 24 mm • ASME BPE compliance (1.97 in) (5.71 in) (5.31 in) (0.95 in) Endress+Hauser...
-
Page 31: Tip Shape
• A smaller tip shape has less impact on the flow characteristics of the pipe carrying the medium. • The flow characteristics are optimized, thereby increasing the stability of the protection tube. • Endress+Hauser offers users a range of protection tube tips to meet every requirement: – Straight tip –... - Page 32 It is possible to check the mechanical loading capacity as a function of the installation and process conditions online in the TW Sizing Module for protection tubes in the Endress+Hauser Applicator software. See ' A ccessories' section. → 35...
-
Page 33: Certificates And Approvals
The calibration is performed on the replaceable insert of the thermometer. In the case of thermometers without a replaceable insert, the entire thermometer - from the process connection to the tip of the thermometer - is calibrated. Endress+Hauser... -
Page 34: Protection Tube Testing And Load Capacity Calculation
• Depending on the device: Direct input of measuring point-specific information such as measuring range or operating language • Automatic verification of exclusion criteria • Automatic creation of the order code and its breakdown in PDF or Excel output format • Ability to order directly in the Endress+Hauser Online Shop Endress+Hauser... -
Page 35: Accessories
TM412 Accessories Various accessories, which can be ordered with the device or subsequently from Endress+Hauser, are available for the device. Detailed information on the order code in question is available from your local Endress+Hauser sales center or on the product page of the Endress+Hauser website: www.endress.com. - Page 36 Roughness in μm (μin): 0.8 (31.5) ø65 (2.56) Order number: 52001221 (without inspection certificate EN10204-3.1 material) Order number: 52011898 (with inspection certificate EN10204-3.1 material) Order number seal (5-pc. set): silicone O-ring 52014424 , FDA- compliant A0008272 A seal is included in the delivery. Endress+Hauser...
-
Page 37: Communication-Specific Accessories
HART For details, see Technical Information TI00404F Commubox FXA291 Connects Endress+Hauser field devices with a CDI interface (= Endress+Hauser Common Data Interface) and the USB port of a computer or laptop. For details, see Technical Information TI00405C HART Loop Converter... -
Page 38: Service-Specific Accessories
• Ideal measuring point design and sizing to suit the processes and needs of a wide range of industries The Konfigurator is available: On request from your Endress+Hauser sales office on a CD-ROM for local PC installation. Life cycle management for your plant... -
Page 39: Documentation
TMT82, two-channel, RTD, TC, Ω, mV: TI01010T PROFIBUS ® PA TMT84, two-channel, RTD, TC, Ω, mV: TI00138R FOUNDATION Fieldbus TMT85, two-channel, RTD, TC, Ω, mV: TI00134R iTEMP temperature field transmitter: TMT162, dual input temperature field transmitter with HART®, FOUNDATION Fieldbus™ or PROFIBUS® PA protocol: TI00086R Endress+Hauser... - Page 40 www.addresses.endress.com...
