Technical Information

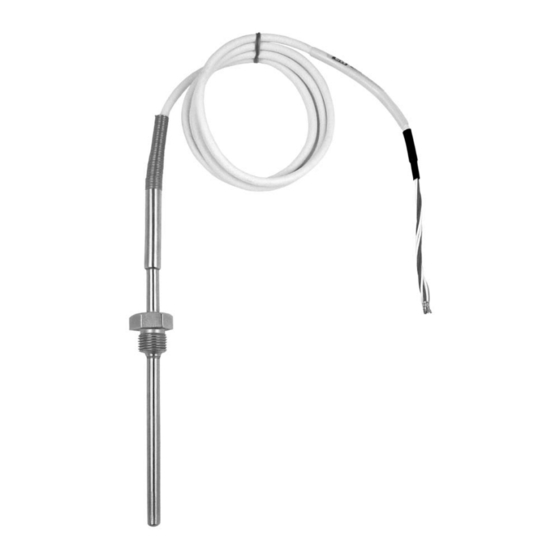

Omnigrad T TST310
RTD thermometer
Can be screwed in or inserted
With fixed connected cable and anti-kink spring
TI00085T/09/en
71108017
Application
The resistance thermometer is specially suited to
temperature measurement in machinery, laboratory
equipment and plants in gaseous or liquid media like air,
water, oil and others.
Your benefits
• High flexibility through user-specific insertion lengths
and variable process connections
• Fast response time
• Single or double Pt100 sensor of accuracy class A, B,
or AA as per IEC 60751
• Types of protection for use in hazardous locations:
Intrinsic Safety (Ex ia)
Non-Sparking (Ex nA)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Endress+Hauser Omnigrad T TST310
Summary of Contents for Endress+Hauser Omnigrad T TST310
-
Page 1: Technical Information
Technical Information Omnigrad T TST310 RTD thermometer Can be screwed in or inserted With fixed connected cable and anti-kink spring Application The resistance thermometer is specially suited to temperature measurement in machinery, laboratory equipment and plants in gaseous or liquid media like air, water, oil and others. -
Page 2: Measuring Principle
The universal power supply works with an input supply voltage of 20 to 250 V DC/AC, 50/ 60 Hz, which means that it can be used in all international power grids. More information on this can be found in the Technical Information (see "Documentation"). Endress+Hauser... -
Page 3: Equipment Architecture
Anti-kink spring, 50 mm (1.97 in) The resistance thermometers of the Omnigrad T TST310 series are designed as cable sensors. The actual RTD sensor element is fitted in the sensor tip and mechanically protected. In principle there are bendable and non- bendable versions of the cable sensor;... -
Page 4: Performance Characteristics
Medium water at T = 50 °C (122 °F) Immersion length Medium superheated steam at T = 400 °C (752 °F) Flow velocity Shock and vibration resistance 3g / 10 to 500 Hz as per IEC 60751 (RTD-Thermometer) Degree of protection IP65 Endress+Hauser... -
Page 5: Response Time
Insulated sensor wires 6 mm (0.24 in) 28 s 3 mm (0.12 in) 18 s Note! Response time for the cable probe without transmitter. Insulation resistance (measured with a voltage of 100 V DC) ≥100 MΩ at ambient temperature. Insulation resistance Endress+Hauser... - Page 6 RTD element itself which in turn creates an additional measurement error. In addition to the measurement current the size of the measurement error is also affected by the temperature conductivity and flow velocity of the process. This self heating error is negligible when an Endress+Hauser ®...
- Page 7 1/8" NPT 35 (1.38) 4 (0.16) ¼" NPT 40 (1.57) 6 (0.24) SS 316 ½" NPT 50 (1.97) 8 (0.32) M10x1 35 (1.38) 10 (0.4) PTFE M8x1 Process connection, G¼" 12 (0.47) brazed G½" 15 (0.6) M10x1 10 (0.4) M8x1 Endress+Hauser...
-
Page 8: Installation Conditions
B: For pipes with a small cross-section, the sensor tip must reach to the piping axis or a little farther (=NL). C: Tilted orientation. The insertion length of the thermometer can influence the accuracy. If the insertion length is insufficient, heat dissipation via the process connection and the container wall can cause measurement errors. For installation Endress+Hauser... -
Page 9: Certificates And Approvals
Certificates and approvals CE Mark The device meets the legal requirements of the EC directives if applicable. Endress+Hauser confirms that the device has been successfully tested by applying the CE mark. Hazardous area approvals For further details on the available Ex versions (ATEX, CSA, FM, etc.), please contact your nearest Endress+Hauser sales organization. -
Page 10: Product Structure
This information provides an overview of the order options available. The information is not exhaustive, however, and may not be fully up to date. More detailed information is available from your local Endress+Hauser representative. RTD Thermometer TST310 Insert Diameter; Calibration:... - Page 11 ATEX II 1 G Ex ia IIC ATEX II 3 GD EEx nA II NEPSI Ex is IIC T6 IECEx Ga Ex ia IIC T6 Special version, TSP-No. to be specified Marking: Tagging (TAG) ← Order code (complete) TST310- Endress+Hauser...
- Page 12 ® – iTEMP PCP DIN rail TMT121 (TI087r/09/en) • Field display RIA16 (TI144r/09/en) • Active barrier with power supply RN221N (TI073r/09/en) Instruments International Endress+Hauser Instruments International AG Kaegenstrasse 2 4153 Reinach Switzerland Tel.+41 61 715 81 00 Fax+41 61 715 25 00 www.endress.com...
