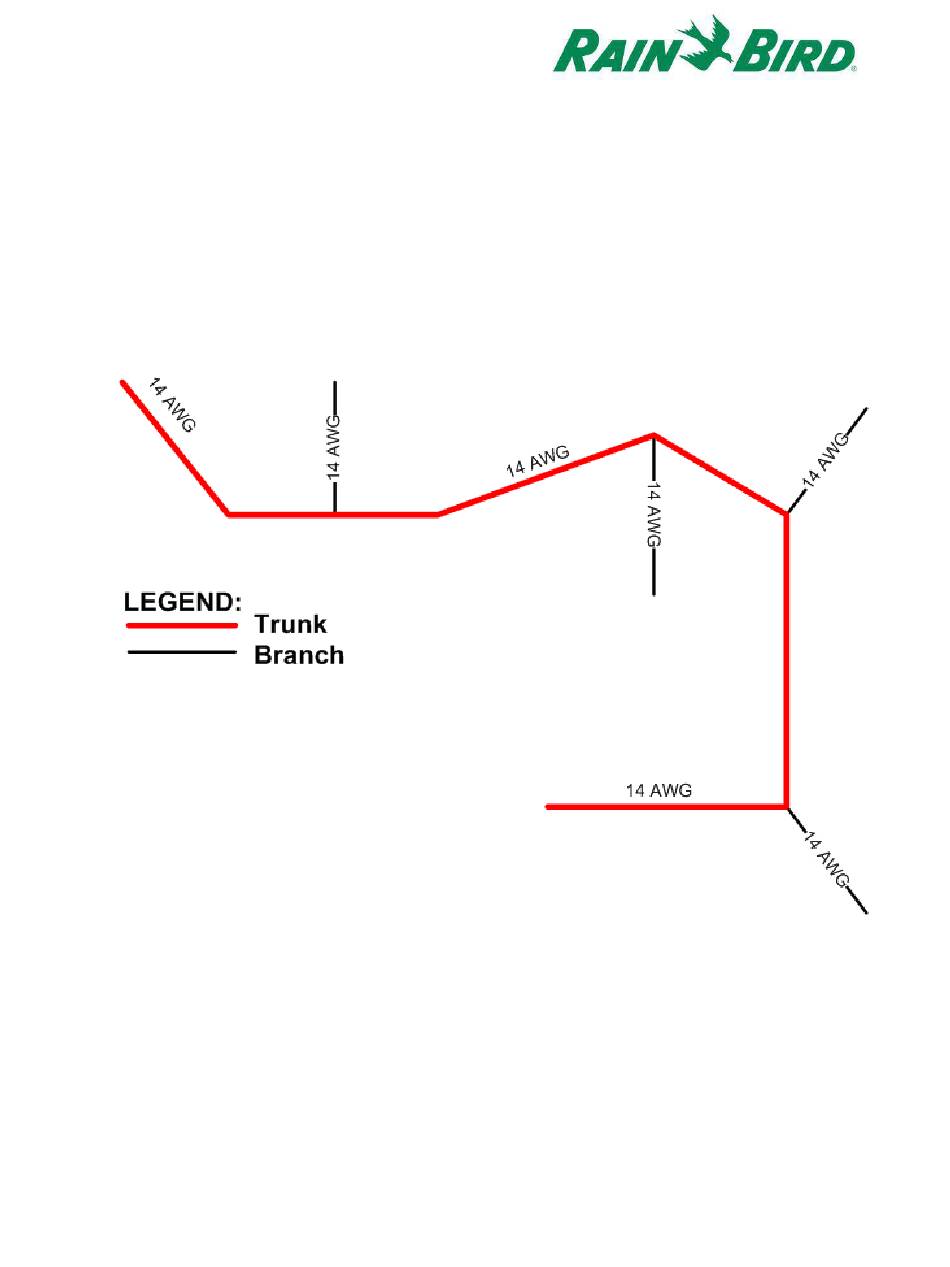

Example 1 – An installation requires 300 ICMs on a single wire path and the Trunk wire length will be up
2
to 10,000 feet (3,000 meters). Utilizing the sizing chart the Trunk wire should use 14 AWG (2.5 mm
)
TM
MAXI
wire for the installation. Although there are multiple branches off of the main Trunk wire, these
are not part of the calculation when determining the size of the Trunk wire. Each branch will also be 14
2
AWG (2.5 mm
) wire.
