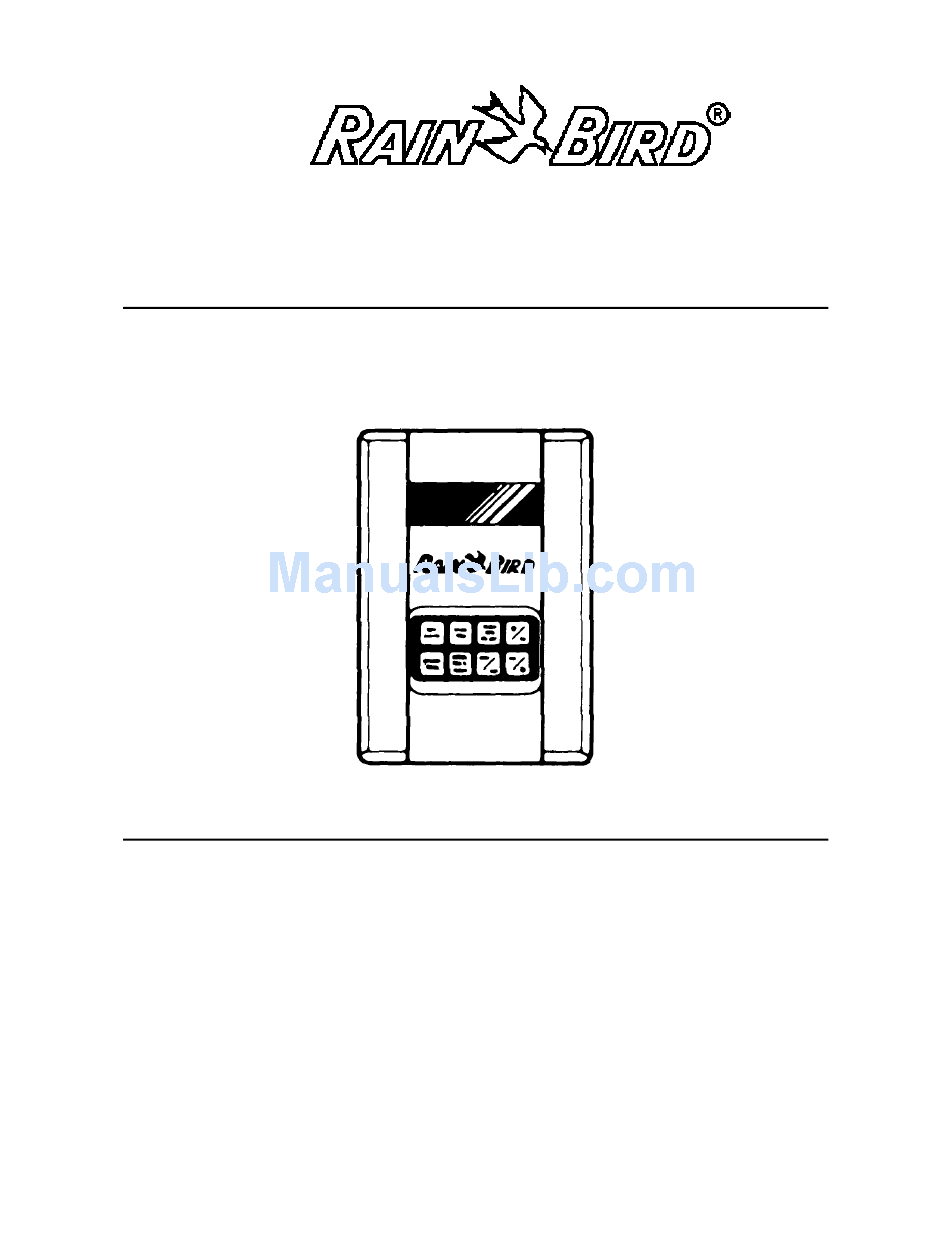

- Page 1 SPRINKLER SYSTEM CONTROLLER RAIN CLOCK MODELS PC-104 4 Station PC-106 6 Station PC-104-PS 4 Station with Pump Relay Circuit PC-106-PS 6 Station with Pump Relay Circuit Rain Bird Sales, Inc. Customer Support Center 6991 E. Southpoint Rd., Bldg. #1, Tucson, AZ 85706...
- Page 2 * Additional discount not valid on clearance items, bundles or store specials. Discount applies to controller products only. Cannot be combined with other store discount codes. Valid at the Rain Bird Online Store only. Subject to change without notice. ® Registered trademark of Rain Bird Corporation.
- Page 3 PC-104/106 SPRINKLER SYSTEM CONTROLLER INSTALLATION INSTRUCTIONS Rain Bird Rain Clocks are designed for use with all standard residential 24 volt AC electric valves regardless of brand. However, some older brass elec- tric valves and commercial duty plastic valves may have power requirements...
- Page 4 STEP 2: CONNECTING THE WIRING How to choose the ri ght type of sprinkler wire: Use 18-gauge “bell,” “thermostat” or “underground burial” wire for the sprinkling system. “Bell wire” is available in single strands or twisted in 2 or 3 wire sets and can only be used indoors.
- Page 5 PC-104-PS models. This circuit allows the timer to be used in conjunction with a "pump relay switch" (Rain Bird model PCR-1) which when activated by the timer, will in turn activate the pump. The pump start circuit can also be used to operate a standard 24-volt "master valve."...
- Page 6 ROGRAMMING NSTRUCTIONS Use to set the Use to set the days to water daily start times Use to set Adjust time up current time and days to on WATER WATER TIMES CLOCK DAYS PER DAY Use to set Adjust time AUTO length of down and days...
- Page 7 1-D: To display the Current Time Press Display Shows: CLOCK The above setting of 2:20 PM = 1420 military time You can also press the “SET CLOCK” button during any other programming operation to return it to the time of day display. STEP 2: SET THE DAYS OF THE WEEK TO WATER When shipped from the factory, the PC-104/106 Series is pre-set to water every...
- Page 8 2-B: Watering on an “Interval” of Days (i.e. every 3rd day) Now Press Adjust Day 1 to “ON” with: Display changes to: WATER DAYS Now Press Adjust Day 2 to “OFF” by pressing: Display changes to: WATER DAYS Now Press Adjust Day 3 to “OFF”...
- Page 9 STEP 3: SET THE TIME OF DAY TO WATER This button determines the time of day when the cycle will start watering. The timer can be set to water once, twice, or three times per day. All stations will start in sequence at each start time (for example, if this is a four station timer, and the start times are set at 8:00 AM, 1:00 PM, and 6:00 PM, all four stations will go on sequentially at 8:00 AM, 1:00 PM, and 6:00 PM).
- Page 10 STEP 4: SET THE WATERING TIME FOR EACH STATION This button sets how long each station (zone) will run. Each station can be sep- arately adjusted between 0-99 minutes in one minute increments. This “watering time” is always the same for that station, every time the system waters.
- Page 11 STEP 6: TO INTERRUPT WATERING FOR RAIN The “AUTO/OFF” button allows the watering and programming to be interrupted until pressed again. it does not affect the program, but it does prevent power from going to the valves. Press Display will show: The Current Time AUTO Last Digit Blinks i.e.
- Page 12 -It is not in a waterproof case, and will therefore be adversely affected by the climate, nor is it electrically prudent to plug the transformer in an exterior outlet. If you need any or all of these features, Rain Bird manufactures a variety of ad- ditional models incorporating these and other features. Please contact your dealer for details.
- Page 13 US Government Printing Office, Washington D.C. 20402, Stock No. 004-000-0034504. (Price is $2.00 postpaid.) Rain Bird Sales, Inc. Customer Support Center 6640 S. Bonney Ave. Tucson, AZ 85706 1-800-RAIN-BIRD (520) 434-6289 FAX © Rain Bird Sprinkler Mfg. Corp.
