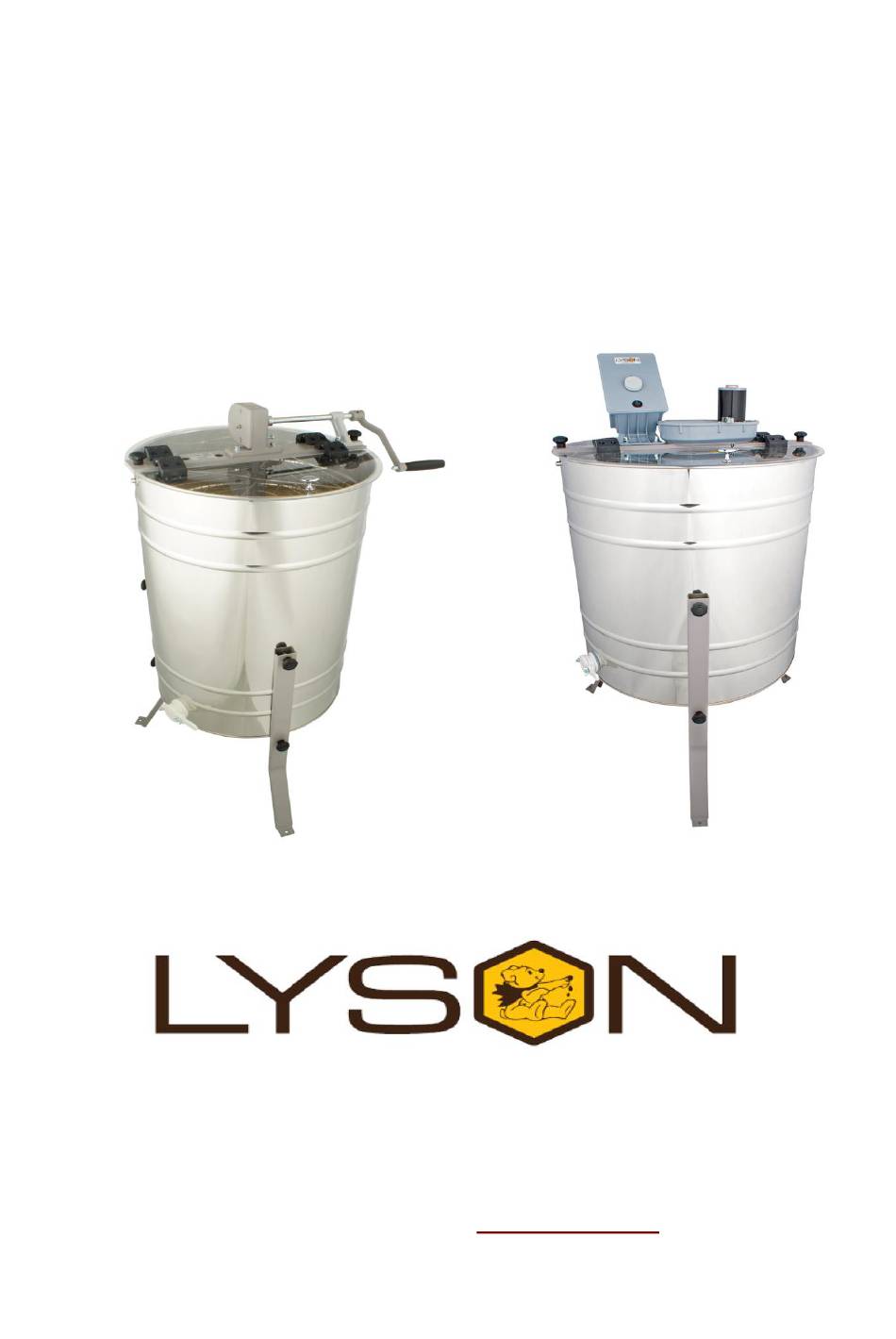

Honey extractors – MINIMA series
with manual or electric drive
Przedsiębiorstwo Pszczelarskie Tomasz Łysoń
Spółka z o.o. Spółka Komandytowa
34-125 Sułkowice, ul. Racławicka 162, Polska
www.lyson.com.pl, email: lyson@lyson.com.pl
tel.33/875-99-40 , 33/870-64-02
Siedziba Firmy Klecza Dolna 148 , 34-124 Klecza Górna
Advertisement
Related Manuals for LYSON MINIMA Series
Summary of Contents for LYSON MINIMA Series
- Page 1 Manual Honey extractors – MINIMA series with manual or electric drive Przedsiębiorstwo Pszczelarskie Tomasz Łysoń Spółka z o.o. Spółka Komandytowa 34-125 Sułkowice, ul. Racławicka 162, Polska www.lyson.com.pl, email: lyson@lyson.com.pl tel.33/875-99-40 , 33/870-64-02 Siedziba Firmy Klecza Dolna 148 , 34-124 Klecza Górna...
- Page 2 Honey extractor manual 2.1. General principles for preparing the device for operation 2.2.Operational principles Characteristics of the honey extractors - MINIMA series 3.1. Technical parameters for electric honey extractors 3.2. technical parameters for manual honey extractors 3.3. Dismantling the basket in case of...
-
Page 3: Operational Principles
9. It is forbidden to pull the supply cable. The GENERAL SAFETY supply cable must be kept away from heat OPERATIONAL PRINCIPLES sources, sharp edges and its good technical state Prior to device usage initiation, refer to the must be taken care of. following manual and act according the guidelines contained therein. - Page 4 3. Characteristics for the honey 2.2. Operating principles extractors – Minima series. 1.Honey extractor is intended to centrifuge the honey from the frames. Diagonal, 3-4-honeycomb honey extractor can be 2.
- Page 5 • Drum height with the drive, with legs- 950mm. Plexiglas with four orifices - 1 piece • Honey extractor’s weight – 24.5 kg diameter 600mm • Honey extractor’s weight – 21 kg diameter 500 mm • Legs and beam ate powder-coated Components of the honey extractor with electric drive: •...
- Page 6 I2. washer 8 – 2 pcs. Screwing the hinges to the beam I3. bolt M8x25 – 2 pcs Wrench 10/13 – 2 pcs Assembling the MINIMA-series honey extractor with electric drive Take the drum with installed engine out of the carton box Take out the elements for self-assembling Assemble the legs and the valve assemble the Plexiglas...
- Page 7 Manual drive with a brake mounted on the upper beam of the extractor. Makes it possible to operate the device when the access to electricity is impossible. Manual drive casing is made of f.cap nut M8 - 1 piece powder-coated metal. Steel rolled gears transfer the torque to the basket axis.
- Page 8 m. conical Allen bolt M5x25 – 8 pcs. Valve assembling Leg assembling m1. Conical Allens bolt M5x30 – 8 pcs n. washer 5 widened for the nuts for SCREWING UP THE LID TO THE TOP plexiglas – 8 pcs. n1. washer 5 for the nuts for the beam –...
