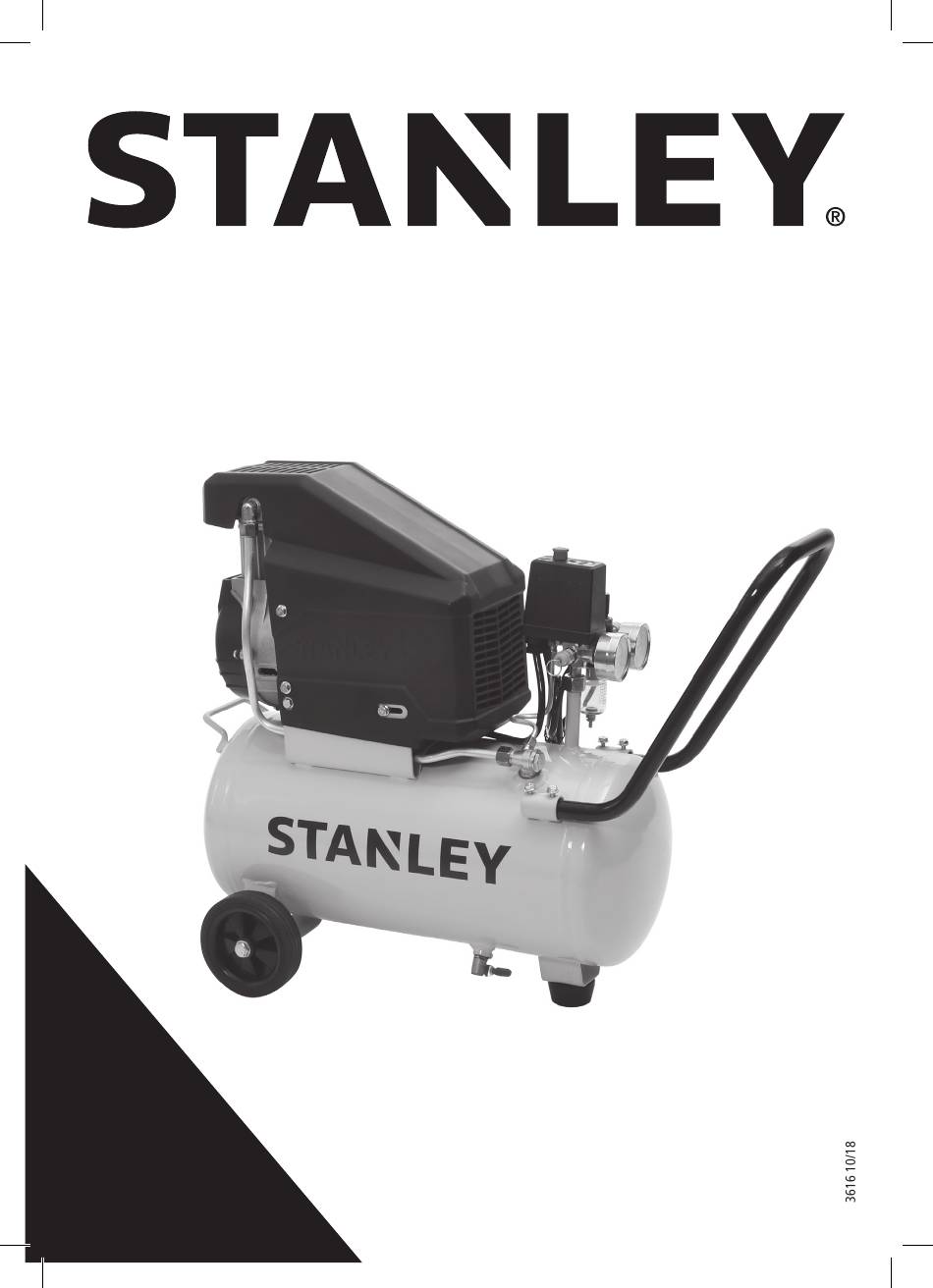

Page 1: Air Compressor
AIR COMPRESSOR 1.5HP 21L For service, spare parts or product information, MODEL NO. please contact Smart Marketing Group Pty. Ltd. SXAC1521121 AUST. 1300 660 457 N.Z. 0800 474 876... -
Page 2: Table Of Contents
SUGGESTED APPLICATIONS CONTENTS You may use some light duty air tools with this compressor. Section Page Some examples of light duty tools are: Contents • Ball Inflator • Toy Inflator Suggested Applications • Tyre Inflator Introduction • Mini Air Brush Guarantee 3 –... -
Page 3: Introduction
INTRODUCTION What is covered. • Manufacturing fault or defect. Dear Customer, How to claim under this warranty. Thank you for purchasing this compressor which has • Call customer service. passed through our extensive quality assurance processes. Every care has been taken to ensure that •... - Page 4 COMPLETE WARRANTY STATEMENT – COMPRESSOR As soon as you have purchased the compressor, we Damage caused by third party accessories is not covered recommend that you check to make sure it is intact and under this warranty. that you read the operating instructions carefully before Damage caused to attached equipment or third party using it.
-
Page 5: General Safety Instructions
LUBRICATION OF COMPRESSOR WORK ENVIRONMENT This compressor is OIL FREE. Therefore there Do not expose your air compressor to rain or use in damp is NO oil used for lubrication. or wet conditions. Keep the work area well lit. Always ensure your compressor is level and stable. - Page 6 DO NOT ABUSE DISCONNECT AIR COMPRESSOR THE POWER CORD Ensure that the air compressor is disconnected from the mains supply when not in use, before servicing, cleaning, Never yank or pull on the power cord to disconnect it making adjustments or when changing any accessories. from the mains supply socket.
-
Page 7: Personal Safety
CHECK DAMAGED PARTS PERSONAL SAFETY Before using the air compressor it should be carefully Clothing checked to determine that it will operate properly and Do not wear loose clothing, jewellery or anything that perform its intended function. could get caught in moving machinery. Check for the correct alignment of moving parts ensuring Hair that they do not bind. -
Page 8: Electrical Information
IMPORTANT ELECTRICAL DATA This air compressor is fitted with a sealed electrical connection plug that is compatible with the mains power supply for Australia / New Zealand and meets the requirements of international standards. This air compressor must be connected to a supply voltage that is equal to that stated on the rating label. If the mains power connection plug or power cord becomes damaged it must be replaced with a complete assembly that is identical to the original, and this must be replaced by an authorised service centre. -
Page 9: Components And Controls
COMPONENTS AND CONTROLS 1. Rear handle 2. Tank 3. Wheels 4. Tank drain tap 5. Rubber stopper 6. Safety Valve 7. Tank pressure gauge 8. Front handle 9. Pressure switch 10. On / Off button – red colour 11. Outlet pressure gauge 12. -
Page 10: Operating Instructions
OPERATING INSTRUCTIONS PIC. 1 Unpacking Carefully unpack your air compressor. This air compressor is bulky and heavy, two (2) person lift required. Dispose of all packing material in an environmentally responsible manner. Assembly Your air compressor requires minor assembly before initial operation. - Page 11 HANDLE Tighten bolts to hold handle PIC. 3 1. Loosen bolts in tubes welded to the tank. 2. Push handle into tubes welded on the tank. 3. Tighten the bolts to hold handle in place, Pic. 3. Slide handle into tubes AIR FILTER The supplied air filter must be used.
- Page 12 USING THE AIR COMPRESSOR FILTER REGULATOR Your compressor does not require running in. Before use Pic. 6 ensure you have read and understood these instructions. This air compressor comes with a filter regulator, which will Before use ensure this compressor is fully assembled as per filter some water and other particulates from the air as it pages 10 and 11.
- Page 13 PIC. 7 Not supplied, purchased separately. The configuration of tools and accessories can be varied to suit your particular requirements. A basic recommended set up is shown in Pic. 7. When you have finished using your air compressor follow these simple steps; 1.
-
Page 14: Safety Valve
ADJUSTING THE PRESSURE PIC. 8 To adjust the outlet air pressure, use the red coloured regulator knob and check the pressure on the outlet Regulator pressure gauge, Pic. 8. If the pressure needs to be lower, turn anti clockwise. If the pressure needs to be higher, turn clockwise. Air Outlet Use the gauge to ensure you set the correct working pressure. - Page 15 AIR FITTING PIC. 10 Pic. 10 This air compressor is fitted with a ‘Nitto style’ Tank pressure (female) socket. gauge 1. Push in the ‘Nitto style’ male plug (not included). 2. Fully and completely push the ‘Nitto style’ male plug (not included) into the ‘Nitto style’...
-
Page 16: Maintenance
MAINTENANCE Daily: Before use 1. Seal the tank drain tap,see page 15, Pic. 11. 2. Check safety valve operation,see page 14, Pic. 9. After Use 1. Open the tank drain tap,see page 15, Pic. 11. and leave open to allow to drain 2. -
Page 17: Parts Diagram
PARTS DIAGRAM Part Description SMG Part No. Part Description SMG Part No. Air Filter 95 BRC95AF Filter Regulator 95 STREGWT Exhaust Elbow 95 BRC95EE Outlet Nitto Style Socket (Female) 95 STNSF Exhaust Tube Set 95 STDDSMET Safety Valve 95 ST10SPV Wheel Set 95 STSMWH Pressure Switch (10 Bar) -
Page 18: Technical Information
STANLEY®, The STANLEY Logo, The Notched Rectangle and the Yellow and Black Diagonal Package Design are all trademarks of the Stanley Black & Decker, Inc or an affiliate thereof and are used under license. Product manufactured and distributed by Smart Marketing Group Pty Ltd.
