Stanley SXCM27550323 Manual

Stanley SXCM27550323 Manual

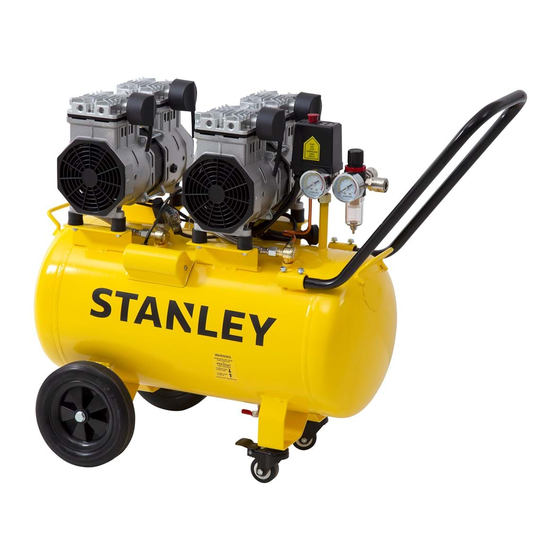

Air compressor twin stack 2.75hp 50l

Advertisement

Quick Links

AIR COMPRESSOR
TWIN STACK 2.75HP 50L
MODEL NO.
SXCM27550323
For service, spare parts or product information,
please contact Smart Marketing Group Pty. Ltd.
AUST. 1300 660 457
N.Z. 0800 474 876

Advertisement

loading
Need help?

Need help?

Do you have a question about the SXCM27550323 and is the answer not in the manual?

Questions and answers

Summary of Contents for Stanley SXCM27550323

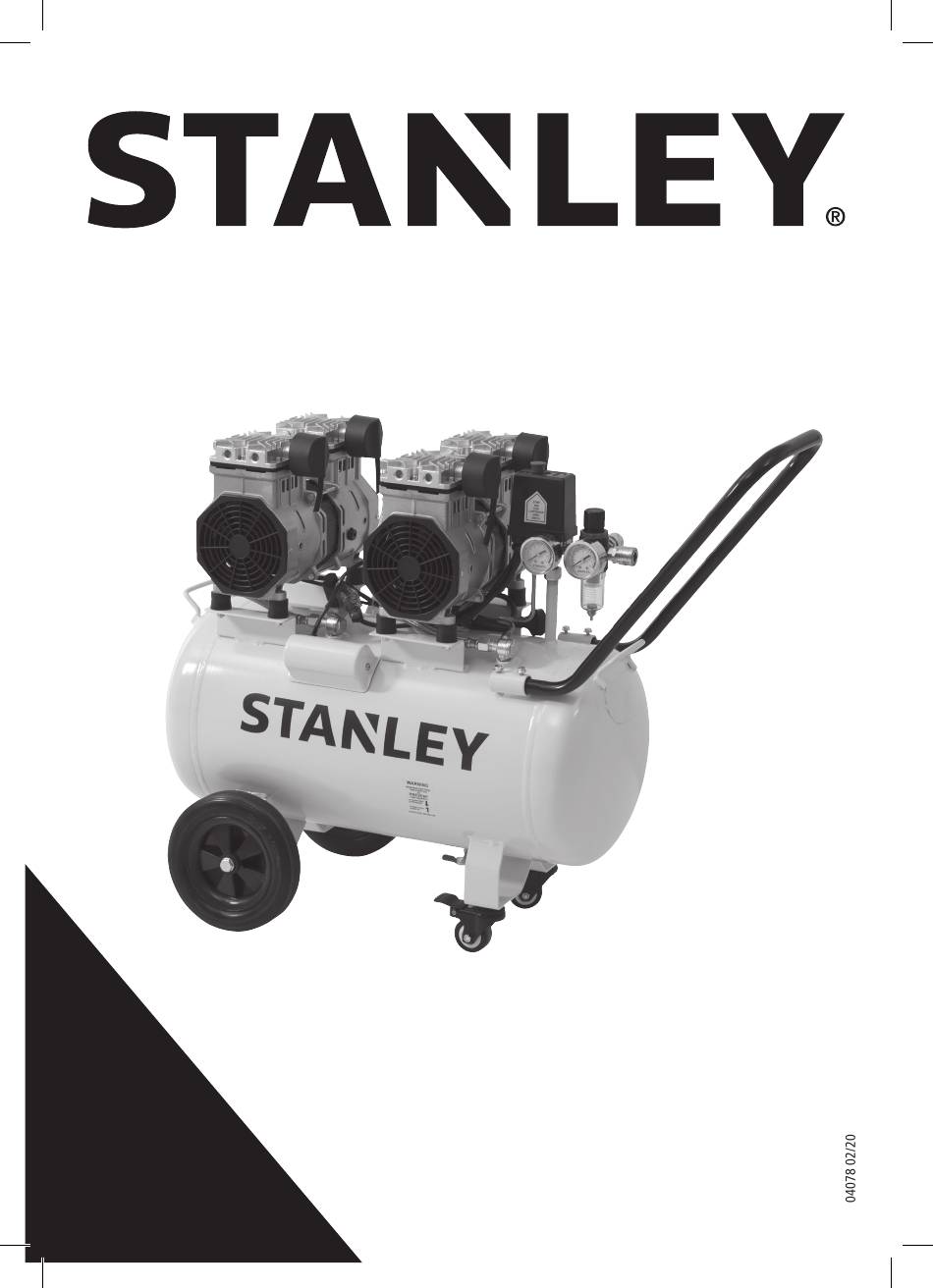

  • Page 1 AIR COMPRESSOR TWIN STACK 2.75HP 50L For service, spare parts or product information, MODEL NO. please contact Smart Marketing Group Pty. Ltd. SXCM27550323 AUST. 1300 660 457 N.Z. 0800 474 876...
  • Page 2 SUGGESTED APPLICATIONS CONTENTS You may use most air tools with this compressor. Section Page Some examples of tools are: Contents INFLATION FASTENING Suggested Applications • Car and bike tires • Framing gun • Sports toys • C-bradder Introduction • Pool toys •...
  • Page 3 INTRODUCTION What is covered. • Manufacturing fault or defect. Dear Customer, How to claim under this warranty. Thank you for purchasing this compressor which has • Call customer service. passed through our extensive quality assurance processes. Every care has been taken to ensure that it reaches you •...
  • Page 4 COMPLETE WARRANTY STATEMENT – COMPRESSOR As soon as you have purchased the compressor, we Damage caused by third party accessories is not covered recommend that you check to make sure it is intact and under this warranty. that you read the operating instructions carefully before Damage caused to attached equipment or third party using it.
  • Page 5 LUBRICATION OF COMPRESSOR WORK ENVIRONMENT This compressor is OIL FREE. Therefore there Do not expose your air compressor to rain or use in damp is NO oil used for lubrication. or wet conditions. Keep the work area well lit. Always ensure your compressor is level and stable.
  • Page 6 DO NOT ABUSE DISCONNECT AIR COMPRESSOR THE POWER CORD Ensure that the air compressor is disconnected from the mains supply when not in use, before servicing, cleaning, Never yank or pull on the power cord to disconnect it making adjustments or when changing any accessories. from the mains supply socket.
  • Page 7 CHECK DAMAGED PARTS PERSONAL SAFETY Before using the air compressor it should be carefully Clothing checked to determine that it will operate properly and Do not wear loose clothing, jewellery or anything that perform its intended function. could get caught in moving machinery. Check for the correct alignment of moving parts ensuring Hair that they do not bind.
  • Page 8 IMPORTANT ELECTRICAL DATA This air compressor is fitted with a sealed electrical connection plug that is compatible with the mains power supply for Australia / New Zealand and meets the requirements of international standards. This air compressor must be connected to a supply voltage that is equal to that stated on the rating label. If the mains power connection plug or power cord becomes damaged it must be replaced with a complete assembly that is identical to the original, and this must be replaced by an authorised service centre.
  • Page 9 COMPONENTS AND CONTROLS 1. Twin stack pump/motors 2. Tank 3. Wheels 4. Tank drain tap 5. Castors 6. Safety valve (not shown) 7. Tank pressure gauge 8. Front handle 9. Pressure switch 10. On / Off button – red colour 11.
  • Page 10 OPERATING INSTRUCTIONS Unpacking Carefully unpack your air compressor. This air compressor is bulky and heavy, two (2) person lift required. Dispose of all packing material in an environmentally responsible manner. Assembly Your air compressor requires minor assembly before initial operation. Check that you have all required components required for assembly and initial use.
  • Page 11 HANDLE Slide handle PIC. 3 into tubes 1. Loosen bolts in tubes welded to the tank. 2. Push handle into tubes welded on the tank. 3. Tighten the bolts to hold handle in place, Pic. 3. Tighten bolts to hold handle AIR FILTER PIC.
  • Page 12 PIC. 7 Not supplied, purchased separately. STARTING THE AIR COMPRESSOR USING THE AIR COMPRESSOR Before starting run through this simple list; Your compressor does not require running in. Before use ensure you have read and understood these instructions. Fully assembled. Before use ensure this compressor is fully assembled as per Drain tap –...
  • Page 13 FILTER REGULATOR PIC. 8 Regulator Pic. 8 This air compressor comes with a filter regulator, which will filter some water and other particulates from the air as it passes through the regulator. To drain any fluid from the filter regulator; Gently pull the nipple down.
  • Page 14 SAFETY VALVE PIC. 10 Pic. 10 NOTE: When checking the safety valve ALWAYS wear safety glasses. To check the operation of the safety valve the air tank will need to be full. Gently pull the ring outwards. This should release air under pressure. Release the ring and this should stop the air out flow immediately.
  • Page 15 PARTS DIAGRAM Part Description SMG Part No. Part Description SMG Part No. Air Filter 95 SXCM27550323AF Handle 95 STDDH Exhaust Elbow 95 SXCM27550323EE Unloading Tube Set 95 SXCM27550323UT Exhaust Tube Set 95 SXCM27550323ET Pressure Gauge Outlet 95 STOPG Motor Mount 95 SXCM27550323EMM Filter Regulator 95 STREGWT...
  • Page 16 STANLEY®, The STANLEY Logo, The Notched Rectangle and the Yellow and Black Diagonal Package Design are all trademarks of the Stanley Black & Decker, Inc or an affiliate thereof and are used under license. Product manufactured and distributed by Smart Marketing Group Pty Ltd.
