FALCOM FSA03 Getting Started page 8

G S W FSA03-EVALKIT
ETTING TARTED ITH

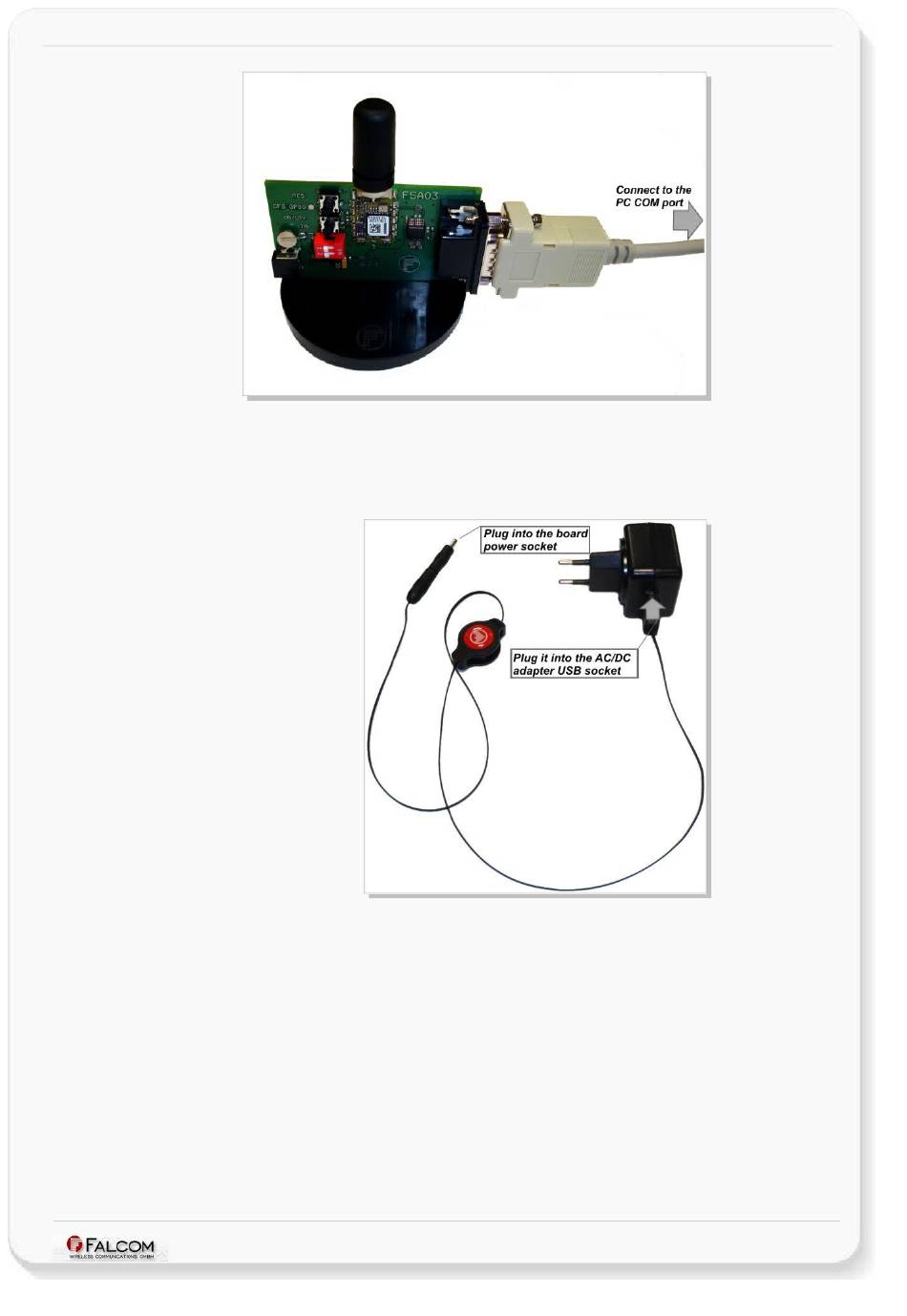

Figure 4: Connecting the RS232 cable
3. Unpack both the AC/DC Adapter USB and the USB to 2.5 jack retractable
cable from the box and then connect the cable to the AC/DC Adapter via
USB.
Figure 5: Assemble the AC/DC adapter and cable
Connect the 100-240V power adapter on the left side panel (Fig. 6) to apply
4.
power to the evalboard. Please note that the cable's plug do not fully stick
in the evalboard 's power jack , therefore do not use much force when
connecting it.
