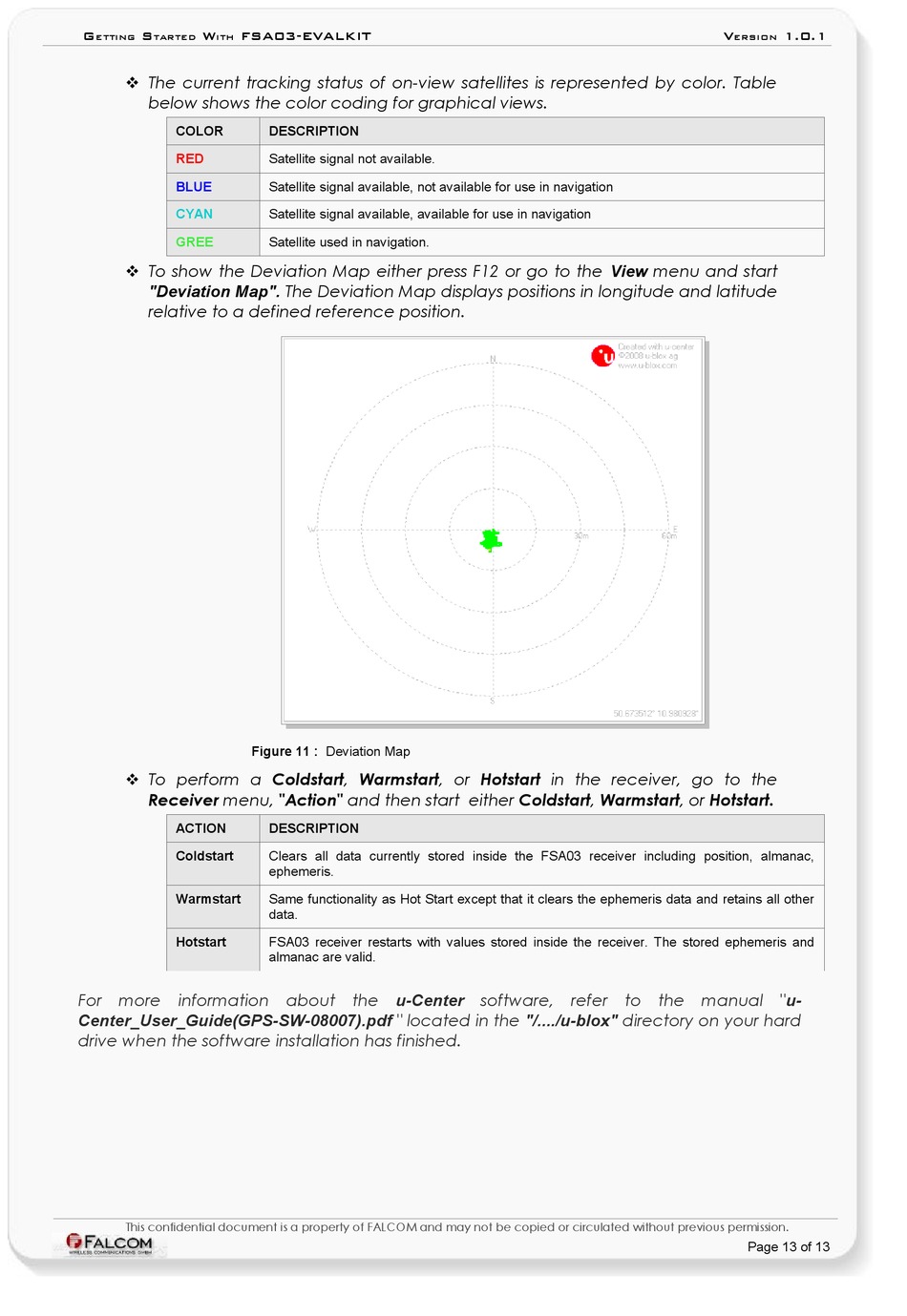

FALCOM FSA03 Getting Started page 13

G S W FSA03-EVALKIT
ETTING TARTED ITH
 The current tracking status of on-view satellites is represented by color. Table
below shows the color coding for graphical views.
COLOR
RED
BLUE
CYAN
GREE
 To show the Deviation Map either press F12 or go to the View menu and start
"Deviation Map". The Deviation Map displays positions in longitude and latitude
relative to a defined reference position.
 To perform a Coldstart, Warmstart, or Hotstart in the receiver, go to the
Receiver menu, "Action" and then start either Coldstart, Warmstart, or Hotstart.
ACTION
Coldstart
Warmstart
Hotstart
For more information about the u-Center software, refer to the manual "u-
Center_User_Guide(GPS-SW-08007).pdf " located in the "/..../u-blox" directory on your hard
drive when the software installation has finished.
This confidential document is a property of FALCOM and may not be copied or circulated without previous permission.
DESCRIPTION
Satellite signal not available.
Satellite signal available, not available for use in navigation
Satellite signal available, available for use in navigation
Satellite used in navigation.
Figure 11 : Deviation Map
DESCRIPTION
Clears all data currently stored inside the FSA03 receiver including position, almanac,
ephemeris.
Same functionality as Hot Start except that it clears the ephemeris data and retains all other
data.
FSA03 receiver restarts with values stored inside the receiver. The stored ephemeris and
almanac are valid.
V 1.0.1
ERSION
Page 13 of 13
