Summary - Mode Descriptions; Normal Mode; Factory Default Mode; Zwave Node Include Mode - SOMFY ZWAVE to RTS INTERFACE Specifications, Installation & Operating Instructions

Table of Contents

S - LED

S - Button

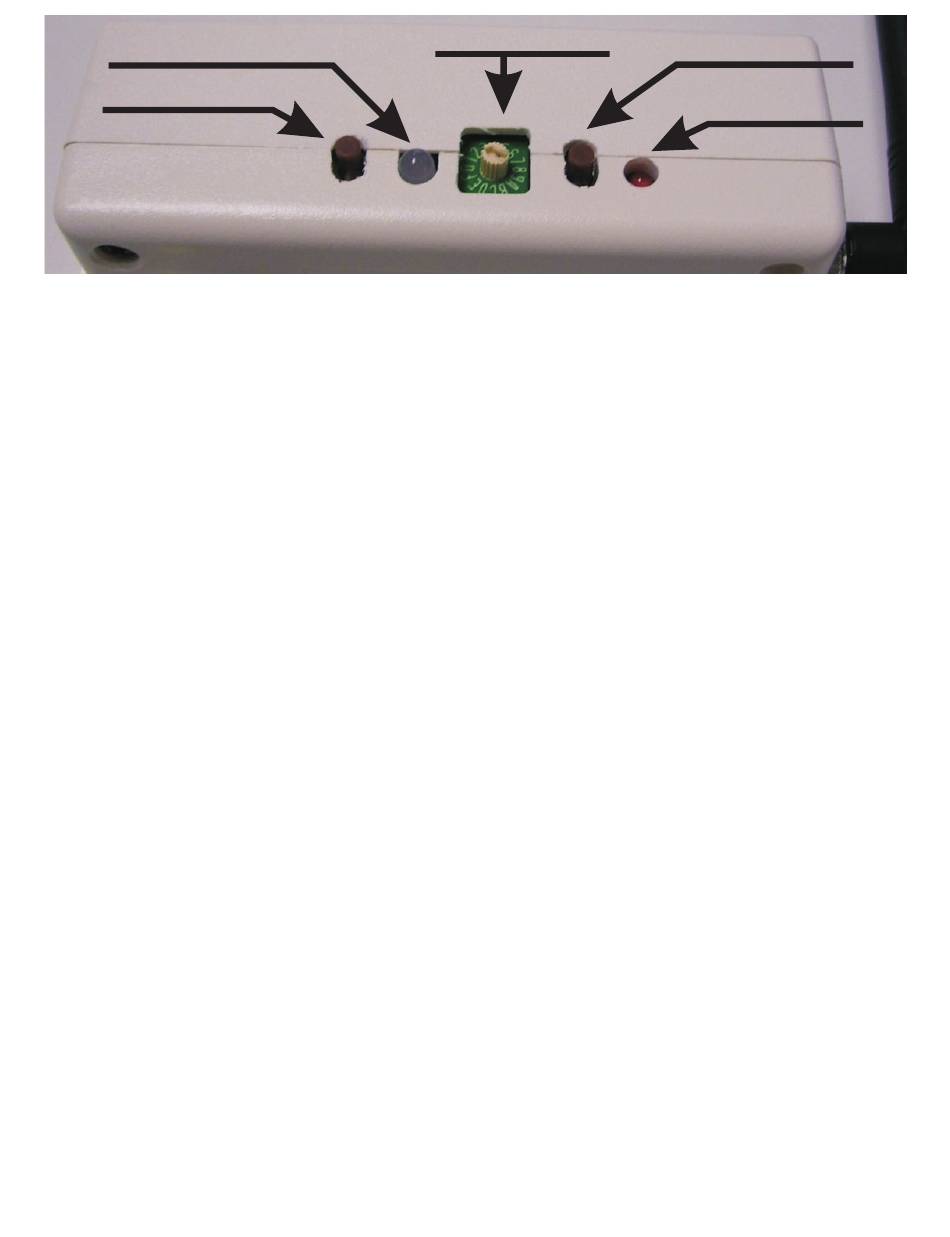

FIGURE 1: ZWave URTSI Buttons and Indicator Layout

NORMAL MODE

1. Inserting the ZRTSI into an AC outlet will turn the S-LED green and enable Normal Mode. This means the ZRTSI is prepared for normal

operation.

2. If the ZRTSI is in Include or Exclude Mode (S-LED is flashing or solid yellow), Normal Mode can be entered by pressing and holding the

S-Button until the S-LED turns green.

FACTORY DEFAULT MODE

1. With the ZRTSI unplugged, press and hold the Z-Button. Continue holding the button while plugging the unit into an outlet. Continue

holding the Z-Button while the LEDs flash.

2. The ZRTSI is in Factory Default when the S-LED is green and the Z-LED is off.

ZWAVE NODE INCLUDE MODE

1. With the ZRTSI unplugged, press and hold the S-Button. Continue holding the button while you plug in the ZRTSI. The S-LED will flash

for about 6 seconds.

2. Release the S-Button after the S-LED turns solid yellow.

ZWAVE NODE EXCLUSION MODE (Virtual Nodes Only)

1. Follow the steps above for ZWave Include Mode.

2. Press and hold the S-Button for 3 seconds until the S-LED begins to flash yellow.

3. Release the S-Button while the S-LED is still flashing.

FACTORY DEFAULT INTO INCLUDE MODE

1. To reset the ZRTSI and enter into Include Mode in one step, with the ZRTSI unplugged, press and hold the S-Button and Z-Button together.

2. Continue holding the both button while you plug in the ZRTSI and continue holding for about 20 seconds until the S-LED turns solid yellow.

S-BUTTON

- Used for Programming RTS Channels to Somfy RTS Motors or Controls.

- Used for manually including or excluding the ZRTSI in or out of a ZWave network

- Used to verify RTS communication between the ZRTSI and an RTS motor or control

- Used for entering Include or Exclude mode when pressed and held during power up.

S-LED

- When green, indicates Normal Mode

- Flashing Red indicates that an RTS transmission is occurring.

- Solid yellow shows that a manual node inclusion is allowed

- Flashing yellow shows that a manual node exclusion is allowed

ROTARY SELECTOR

Used to select individual virtual ZWave nodes or RTS Channels

Z-BUTTON

- Used when manually including the ZRTSI main node to a ZWave network

- Used for automatically including all virtual nodes

- Used to reset the ZRTSI to Factory Default Mode

Z-LED

- On during power up, turns off after 5 seconds

- If the ZRTSI is included in a network, the LED will remain on

- Flashes during automatic inclusion of the virtual nodes.
