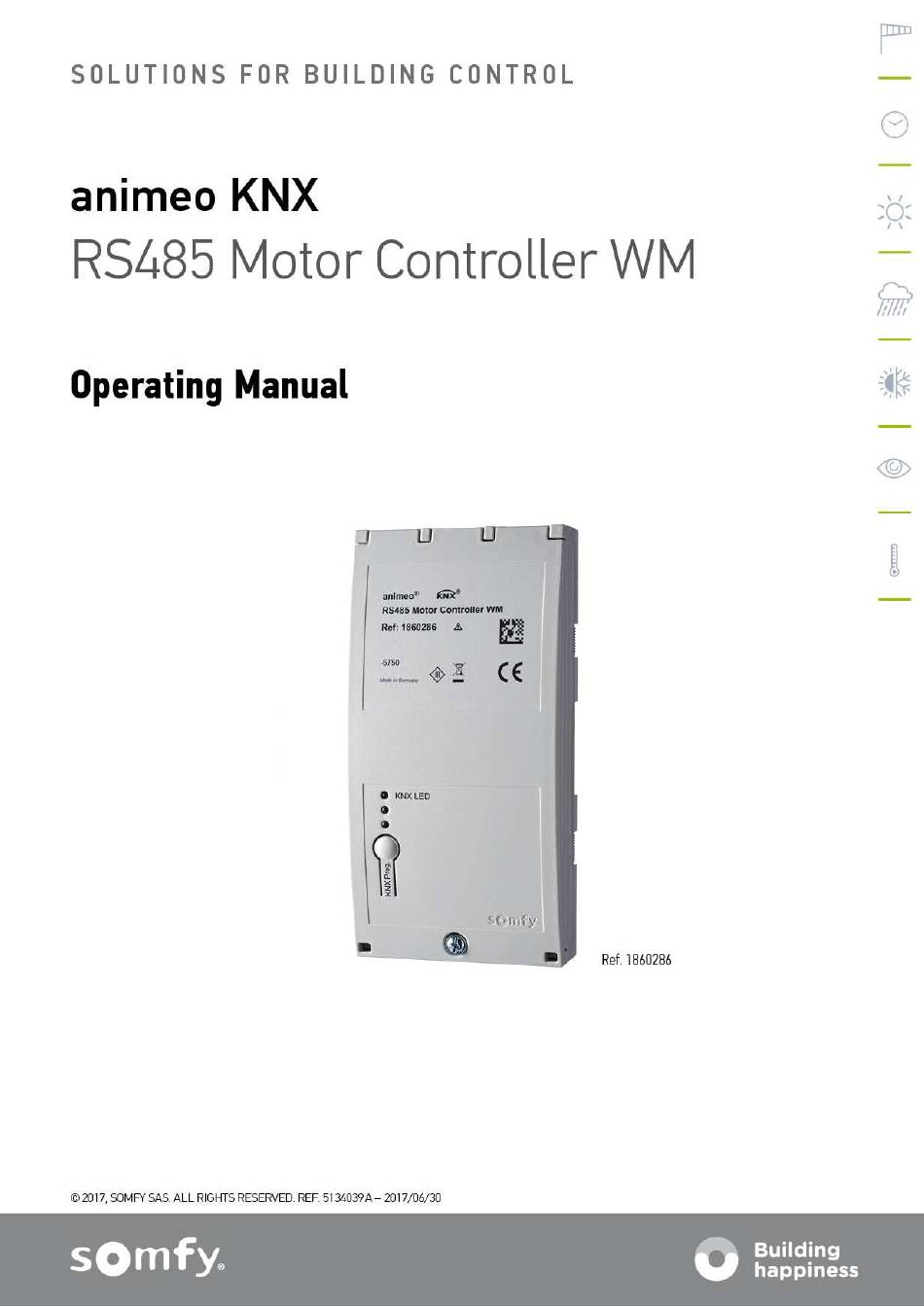

SOMFY Animeo KNX RS485 Operating Manual

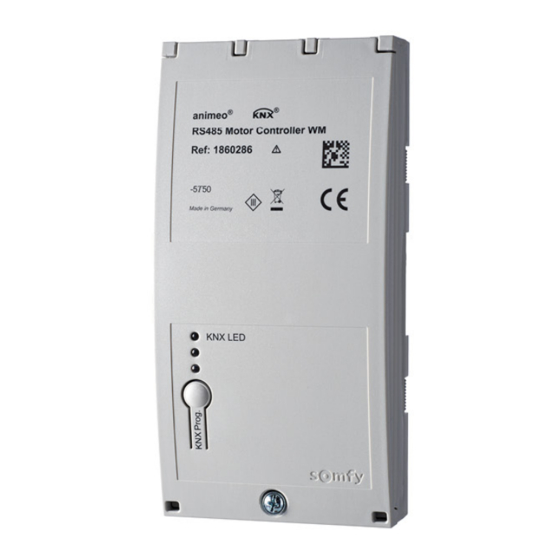

Motor controller wm
Hide thumbs Also See for Animeo KNX RS485:
Table of Contents

Advertisement

Quick Links

Download this manual
1
First operation ................................................................................................................................ 3
2
Wiring diagram ............................................................................................................................... 3
3
Communication objects ................................................................................................................ 5
3.1
Object overview...................................................................................................................... 5
3.1.1 List of Objects ........................................................................................................................ 5
4
Parameter ...................................................................................................................................... 19
4.1
Motor Controller settings ...................................................................................................... 19
4.2
Group Assignment ............................................................................................................... 24
5
Technical data .............................................................................................................................. 28
6
General information ..................................................................................................................... 29
7
Appendix ....................................................................................................................................... 30
Different types of motors could be used and connected on the animeo KNX RS485 Motor Con-
troller.
Before connecting motor and Motor Controller make sure that the end limits of the motors have
been set correctly.
Before starting up it is necessary to follow the safety instructions in this manual. SOMFY cannot
be held liable for defects and damages when these have been caused as a result of not following
instructions (wrong installation, incorrect service etc.). Establishing, testing and commissioning of
the equipment is permitted only by a qualified person (in accordance with VDE 0100). Plug in all
connections without voltage. Take precautions against unintentional turning on.
The installation of the Somfy products may occur only at easily accessible places. If maintenance
and repair become hindered by accessibility substantially (e.g. stuck or extensively stuck flooring,
installation behind lamps or behind façades), any originating supplementary costs therein cannot
be charged to the seller.
Subject to technical changes.
Table of content

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Animeo KNX RS485 and is the answer not in the manual?

Questions and answers

Related Manuals for SOMFY Animeo KNX RS485

Summary of Contents for SOMFY Animeo KNX RS485

  • Page 1: Table Of Contents

    General information ........................29 Appendix ............................30 Different types of motors could be used and connected on the animeo KNX RS485 Motor Con- troller. Before connecting motor and Motor Controller make sure that the end limits of the motors have been set correctly.
  • Page 2 • The exact position of the blind during movement and when reaching the upper and lower end limits can be monitored. • Using a one Byte telegram over the KNX, the blind can be moved to numerous intermediate posi- tions. animeo KNX RS485 Motor Controller WM . Ref. 5134039A 2/31...

  • Page 3: First Operation

    7. Create ETS project and download it. 8. After a waiting time of approx. 1 minute after downloading the Motor Controller is ready for opera- tion. Wiring diagram , ref. 9019005 animeo KNX RS485 Motor Controller WM . Ref. 5134039A 3/31...
  • Page 4 Required twisted pair shielded, 200 m (RJ45) impedance 100 Ω (-10 Ω/+30 Ω), recommended CAT5-FTP, following Somfy RS485 guidelines KNX Bus 2 x 0.8 mm/20 AWG Required, following KNX – topology guidelines animeo KNX RS485 Motor Controller WM . Ref. 5134039A 4/31...

  • Page 5: Communication Objects

    Move to position Read: Read out the Motor ID of the connected RS485 motor Motor 1 Cycles 4 Bytes 12.001 Read out the number of movement cycles of the motor. animeo KNX RS485 Motor Controller WM . Ref. 5134039A 5/31...
  • Page 6 Motor 6 Position Feedback 1 Byte 5.001 See object description no. 2 for motor 1 Not used Motor 6 Feedback Upper End 1 Bit 1.001 See object description no. 4 for motor 1 animeo KNX RS485 Motor Controller WM . Ref. 5134039A 6/31...
  • Page 7 See object description no. 7 for motor 1 Motor 10 Cycles 4 Bytes 12.001 See object description no. 8 for motor 1 Motor 11 Position Request 1 Bit 1.017 See object description no. 1 for motor 1 animeo KNX RS485 Motor Controller WM . Ref. 5134039A 7/31...
  • Page 8 Motor 15 Feedback Lower End 1 Bit 1.001 See object description no. 5 for motor 1 Motor 15 Error Feedback 1 Bit 1.001 See object description no. 6 for motor 1 animeo KNX RS485 Motor Controller WM . Ref. 5134039A 8/31...
  • Page 9 See object description no. 6 for motor 1 Motor 18 Identification 4 Bytes 12.* See object description no. 7 for motor 1 Motor 18 Cycles 4 Bytes 12.001 See object description no. 8 for motor 1 animeo KNX RS485 Motor Controller WM . Ref. 5134039A 9/31...
  • Page 10 (Yes)" in the ETS parameters this will be exe- cuted in the blind. If an object for security position, low priority is active ("1"), the blinds will go to the pa- rameterized position for the low priority. animeo KNX RS485 Motor Controller WM . Ref. 5134039A 10/31...
  • Page 11 See object description no. 155 for command group 1 Position Not used Command Group 3 1 Bit 1.008 See object description no. 157 for command group 1 Move to IP1 animeo KNX RS485 Motor Controller WM . Ref. 5134039A 11/31...
  • Page 12 See object description no. 158 for command group 1 Move to IP2 Command Group 5 1 Bit 1.001 See object description no. 159 for command group 1 Security low prio animeo KNX RS485 Motor Controller WM . Ref. 5134039A 12/31...
  • Page 13 1.001 See object description no. 160 for command group 1 Security high prio Command Group 7 1 Bit 1.001 See object description no. 161 for command group 1 Block functions animeo KNX RS485 Motor Controller WM . Ref. 5134039A 13/31...
  • Page 14 1 Bit 1.017 See object description no. 163 for command group 1 Reset priority Command Group 10 1 Bit 1.008 See object description no. 153 for command group 1 Up/Down animeo KNX RS485 Motor Controller WM . Ref. 5134039A 14/31...
  • Page 15 1.017 See object description no. 154 for command group 1 Dedicated Stop Command Group 12 1 Byte 5.001 See object description no. 155 for command group 1 Position Not used animeo KNX RS485 Motor Controller WM . Ref. 5134039A 15/31...
  • Page 16 See object description no. 158 for command group 1 Move to IP2 Command Group 14 1 Bit 1.001 See object description no. 159 for command group 1 Security low prio animeo KNX RS485 Motor Controller WM . Ref. 5134039A 16/31...
  • Page 17 1.001 See object description no. 160 for command group 1 Security high prio Command Group 16 1 Bit 1.001 See object description no. 161 for command group 1 Block functions animeo KNX RS485 Motor Controller WM . Ref. 5134039A 17/31...
  • Page 18 1 Bit 1.001 See object description no. 162 for command group 1 Prio automatic/manual Command Group 18 1 Bit 1.017 See object description no. 163 for command group 1 Reset priority animeo KNX RS485 Motor Controller WM . Ref. 5134039A 18/31...

  • Page 19: Parameter

    With this menu index card it can be stated how many motors are connected on the Motor Controller and how many command groups shall be used for that. 1. Motors connected Options: 1 – 18 2. Groups used Options: 1 – 18 animeo KNX RS485 Motor Controller WM . Ref. 5134039A 19/31...

  • Page 20: Menu Index Card "Motor 1

    Before starting to download the set ETS-Parameter into the KNX RS485 Motor Controller, the blind has to be in the upper or lower end position which has to be shifted in the upper or lower direction. animeo KNX RS485 Motor Controller WM . Ref. 5134039A 20/31...
  • Page 21 End limits can be shifted between 10 and 50 pulses over ETS. If the targeted end limit is still not reached, the parameter has to be downloaded once again into the Motor Controller. animeo KNX RS485 Motor Controller WM . Ref. 5134039A 21/31...
  • Page 22 “1” is sent if a motor error occurs (e.g. if the motor is blocked) a telegram with the value “0” is sent if a motor error occurs animeo KNX RS485 Motor Controller WM . Ref. 5134039A 22/31...
  • Page 23 Options: 1 second 5 seconds 10 seconds 20 seconds 30 seconds 1 minute 5 minutes 10 minutes 20 minutes 30 minutes 60 minutes animeo KNX RS485 Motor Controller WM . Ref. 5134039A 23/31...

  • Page 24: Group Assignment

    Depending on the selected number of “groups used” in the menu card “Motor Controller” the command groups for each motor can be chosen accordingly. Each motor supports only 16 command groups. animeo KNX RS485 Motor Controller WM . Ref. 5134039A 24/31...

  • Page 25: Menu Index Card "Command Group 1

    If a motor is used in different groups (see chapter 4.2.1), secu- rity commands from the Master Control must be linked to all the groups containing this motor. See the picture in chapter 7 Appendix animeo KNX RS485 Motor Controller WM . Ref. 5134039A 25/31...
  • Page 26 If an automatic command (1 byte move command) occurs prior to a manual command (1 bit move com- mand), all manual commands are disabled. The object at the start-up of the intermediate positions 1 and 2 animeo KNX RS485 Motor Controller WM . Ref. 5134039A 26/31...
  • Page 27 6. Reaction at bus power return This parameter defines the position after a bus power return. Options: Upper end limit Lower end limit Intermediate position 1 (IP1) Intermediate position 2 (IP2) Ignore security Stop animeo KNX RS485 Motor Controller WM . Ref. 5134039A 27/31...

  • Page 28: Technical Data

    Stop (bit) can be blocked per object (161) using this parameter. If a telegram with the value "0" is received on the corresponding object, the stop or turn commands (bit) are released again. Technical data animeo KNX RS485 Motor Controller WM . Ref. 5134039A 28/31...

  • Page 29: General Information

    Saved motor IDs won’t be deleted. Write “rescan” in the motor ID parameter of motor 1 to delete all saved motor IDs of the Motor Controller. The search of motor IDs starts afterwards. animeo KNX RS485 Motor Controller WM . Ref. 5134039A 29/31...

  • Page 30: Appendix

    KNX RS485 Motor Controller WM 2017-06-30 Appendix Examples of use animeo KNX RS485 Motor Controller WM . Ref. 5134039A 30/31...
