DESCRIPTION
Z-WAVE TECHNICAL SPECIFICATIONS
A. Controller Bridge Node
- Main Controller Bridge Node is the repeating Node
- Bridge Node supports Network Wide Inclusion (NWI)
- Manufacturer ID: 00 47 (Somfy)
- Product Type: 5A 52
- Product ID: 54 00
- ZWave firmware: Controller Bridge Library 3.20
- ZWave Series Chip: 300 Series
B. Virtual Nodes
- Manufacturer ID: 00 47
- Product Type: 51 52
- Product ID: 54 xx
XX will be 01 - 16, which represents the RTS channel. For example, if the product ID is 54 08, then it
correspons to RTS channel 8.
ZWAVE to RTS INTERFACE
Specification, Installation & Operating Instructions

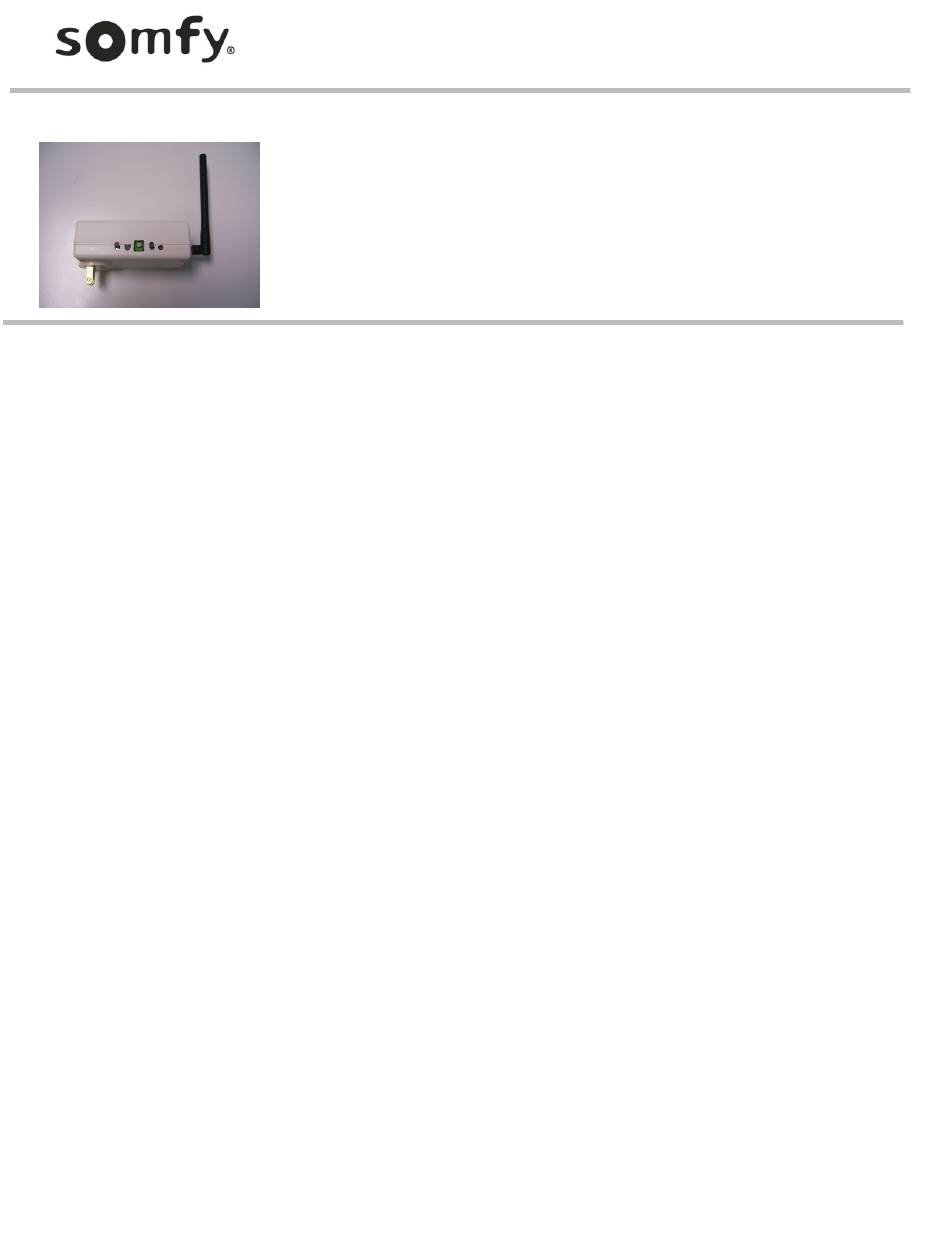

The Somfy Z-Wave Universal RTS Interface (ZRTSI) is a Z-Wave bridge controller
that resides as a secondary controller node within a designated Z-Wave control
network. It receives Z-Wave transmissions and converts them to motor control
commands for Somfy"s full range of RTS wireless products.
The ZRTSI has 16 virtual ZWave nodes that correspond to 16 RTS channels. All
nodes can be automatically included with a Somfy TaHOma primary controller
(1811151) or other ZWave controllers. Individual nodes can be also manually
included in the network.
Command Classes Supported By Bridge Node
- Controller_Replication
- Version
- Manufacturer_Specific
- Basic Device Class: Basic_Type_Static_Controller
- Generic Device Class: Generic_Type_Static_Controller
- Specific Device Class: Specific_Type_Not_Used
Command Classes Supported By Virtual Nodes
- Version
- Manufacturer_Specific
- Switch_Multilevel
- Switch_Binary
- Scene_Activation
- Scene_Actuator_Conf
- Basic Device Class: Basic_Type_Slave
- Generic Device Class: Generic_Type_Switch_Multilevel
- Specific Device Class: Specific_Type_Calss_A_Motor_Control
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SOMFY ZWAVE to RTS INTERFACE
Summary of Contents for SOMFY ZWAVE to RTS INTERFACE
- Page 1 Specification, Installation & Operating Instructions DESCRIPTION The Somfy Z-Wave Universal RTS Interface (ZRTSI) is a Z-Wave bridge controller that resides as a secondary controller node within a designated Z-Wave control network. It receives Z-Wave transmissions and converts them to motor control commands for Somfy”s full range of RTS wireless products.
- Page 2 PROGRAMMING INSTRUCTIONS Rotary Selector Z - Button S - LED S - Button Z - LED FIGURE 1: ZWave URTSI Buttons and Indicator Layout AUTOMATICALLY ADDING THE BASE NODE AND ALL 16 VIRTUAL NODES 1. Verify that the ZRTSI is not included in a ZWave network. 2.
- Page 3 SUMMARY - BUTTONS & INDICATORS S-BUTTON - Used for Programming RTS Channels to Somfy RTS Motors or Controls. - Used for manually including or excluding the ZRTSI in or out of a ZWave network - Used to verify RTS communication between the ZRTSI and an RTS motor or control - Used for entering Include or Exclude mode when pressed and held during power up.
