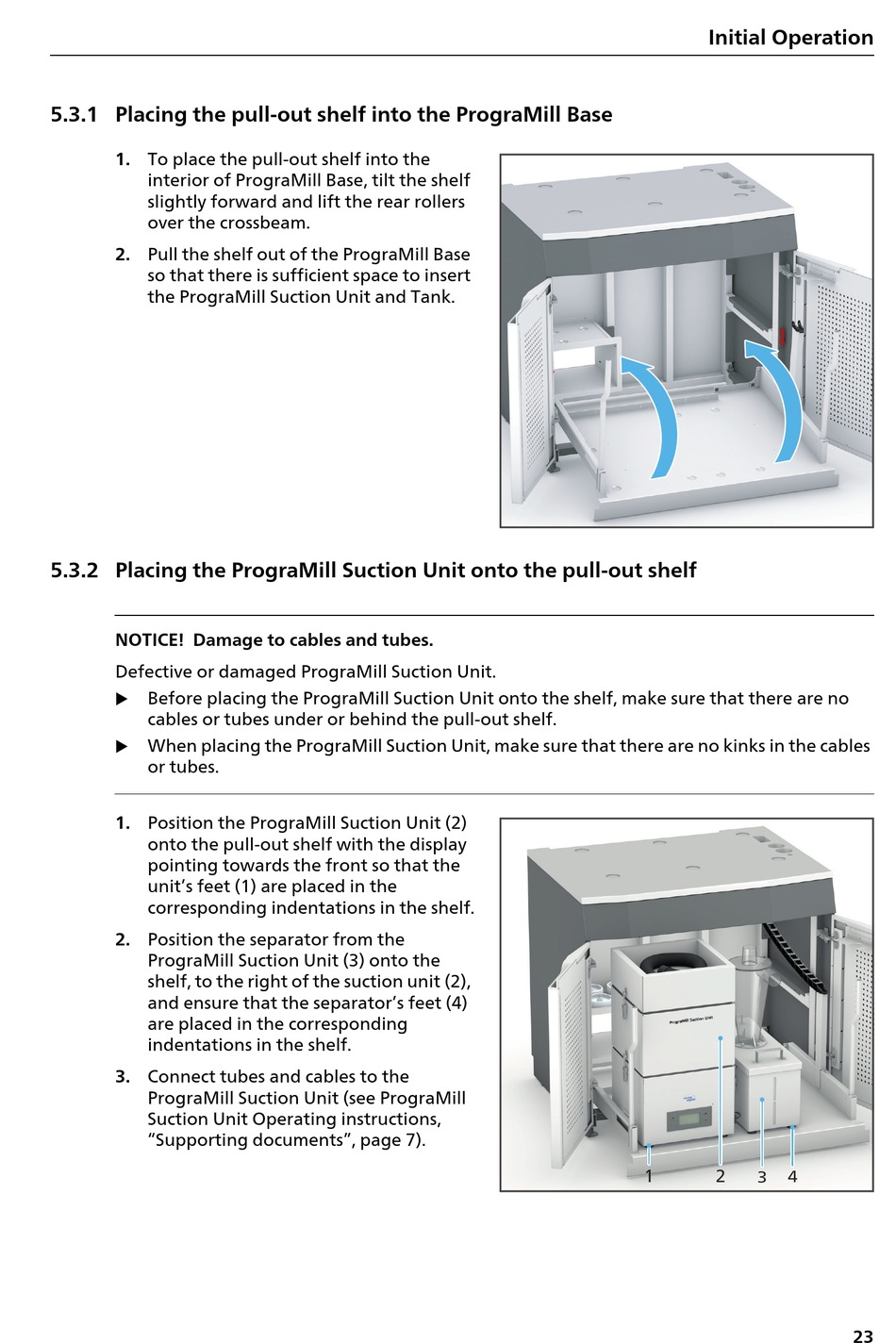

5.3.1 Placing the pull-out shelf into the PrograMill Base
1. To place the pull-out shelf into the
interior of PrograMill Base, tilt the shelf
slightly forward and lift the rear rollers
over the crossbeam.
2. Pull the shelf out of the PrograMill Base
so that there is sufficient space to insert
the PrograMill Suction Unit and Tank.
5.3.2 Placing the PrograMill Suction Unit onto the pull-out shelf
NOTICE! Damage to cables and tubes.
Defective or damaged PrograMill Suction Unit.

Before placing the PrograMill Suction Unit onto the shelf, make sure that there are no
cables or tubes under or behind the pull-out shelf.

When placing the PrograMill Suction Unit, make sure that there are no kinks in the cables
or tubes.
1. Position the PrograMill Suction Unit (2)
onto the pull-out shelf with the display
pointing towards the front so that the
unit's feet (1) are placed in the
corresponding indentations in the shelf.
2. Position the separator from the
PrograMill Suction Unit (3) onto the
shelf, to the right of the suction unit (2),
and ensure that the separator's feet (4)
are placed in the corresponding
indentations in the shelf.
3. Connect tubes and cables to the
PrograMill Suction Unit (see PrograMill
Suction Unit Operating instructions,
"Supporting documents", page 7).
Initial Operation
1 2
3 4
