Maxxus 7.4 Assembly And Operating Manual page 9

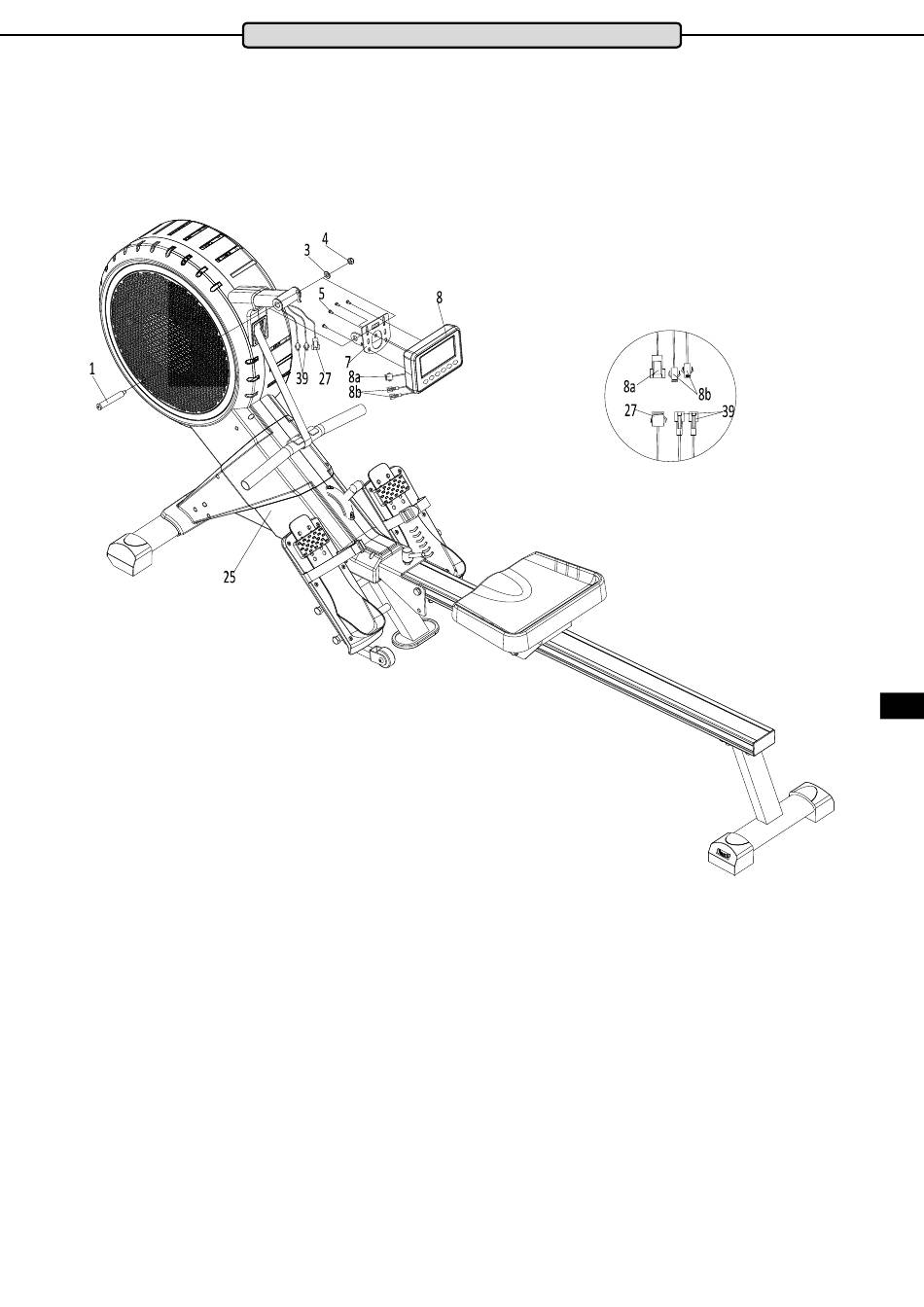

Step 5: Assembling the Cockpit
− Secure the cockpit holder (7) with a bolt (1), a washer (3) and a locknut (4) to the mount on the base frame
(25).
− Secure the cockpit display (8) to the cockpit holder (7) with four pan head bolts (5).
− Connect the cockpit cables (8a / 8b) to the corresponding cables (27/39) of the base frame (25). Slide the
protruding cable lengths back into the frame.
Inserting and Changing the Batteries
Step 1: Open and remove the battery compartment cover located on the back of the cockpit.
Step 2: Insert two AA batteries into the cockpit pay attention to the correct polarity.
Step 3: Replace the battery compartment cover.
Please Note:
1. Use only new batteries when changing batteries.
2. Do not use rechargeable batteries
3. Observe the disposal instructions for batteries in this manual
Assembly
9
ENG
