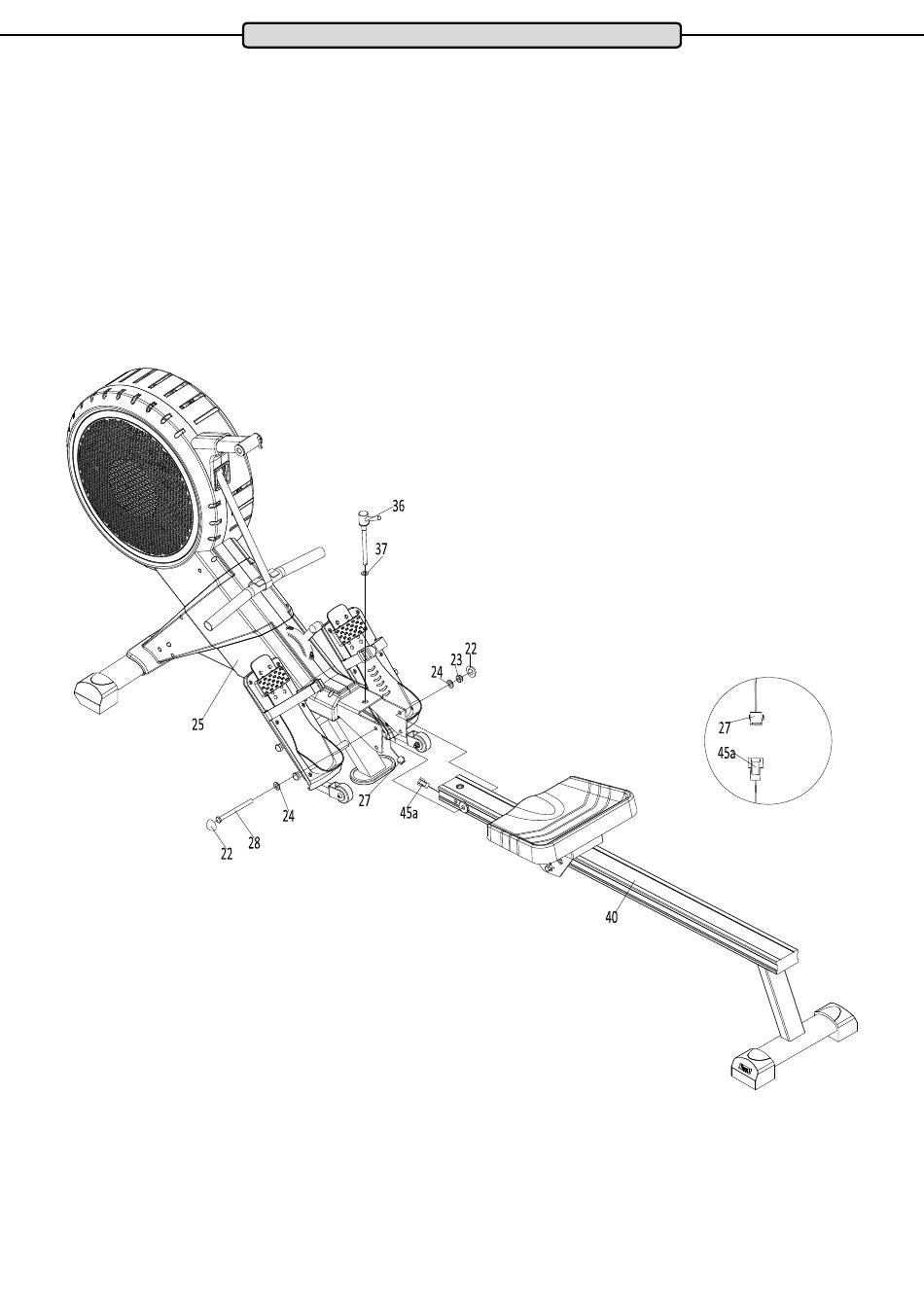

Step 4: Assembling the Slide Rail to the Base Frame
− Connect the cable (45a) protruding from the front of the slide rail (40) at to the cable (27) coming out of the
base frame.
Insert the slide rail (40) in the bracket of the base frame (25). CAUTION: Carefully slide the excess length
−
of cable from the connected cables (45a + 27) into the slide rail (40). Make sure that you do not crush or
damage the cables.
−
− Fix the slide rail (40) to the base frame (25) with a hexagon bolt (28), two washers (24) and a lock nut (23).
Then place a cap (22) each on the nut (23) and the screw head of the hexagon bolt (28).
− Insert the knob (36) with a washer (37) from above into the corresponding hole on the base frame (25) and
tighten it (clockwise) firmly to the slide rail (40).
