Step 3: Assembling the Rear Stand
−

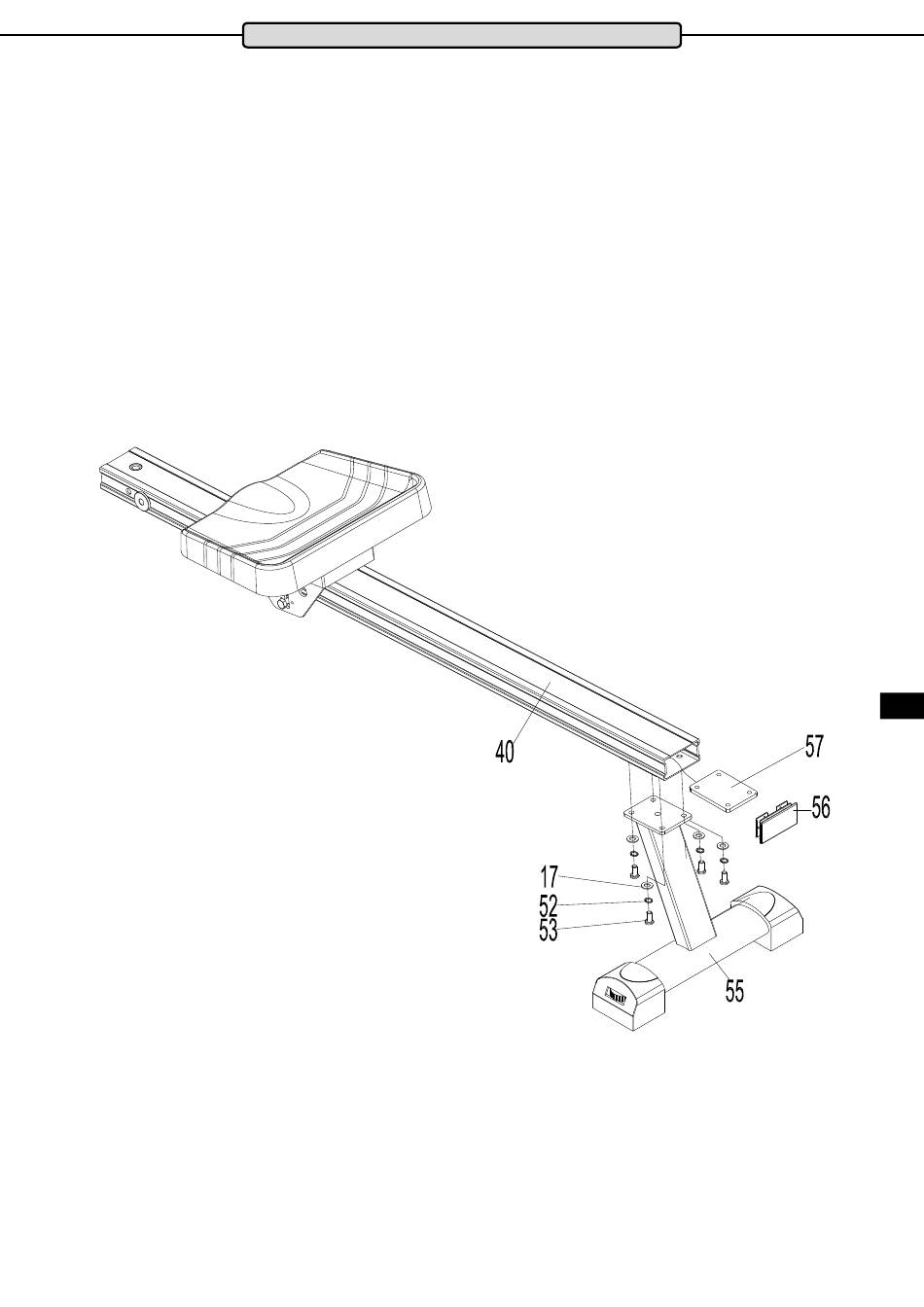

Insert the fixing plate (57) into the slide rail (40) from behind so that the threaded holes of the fixing plate
(57) match with the drill holes in the slide rail (40).
−
Attach the rear stand (55) with four Allen screws (53), four spring washers (52) and four washers (17) from
below at the rear end of the slide rail (40).
−
Insert the cover cap (56) in the rear opening of the slide rail (40).
Assembly
7
ENG
