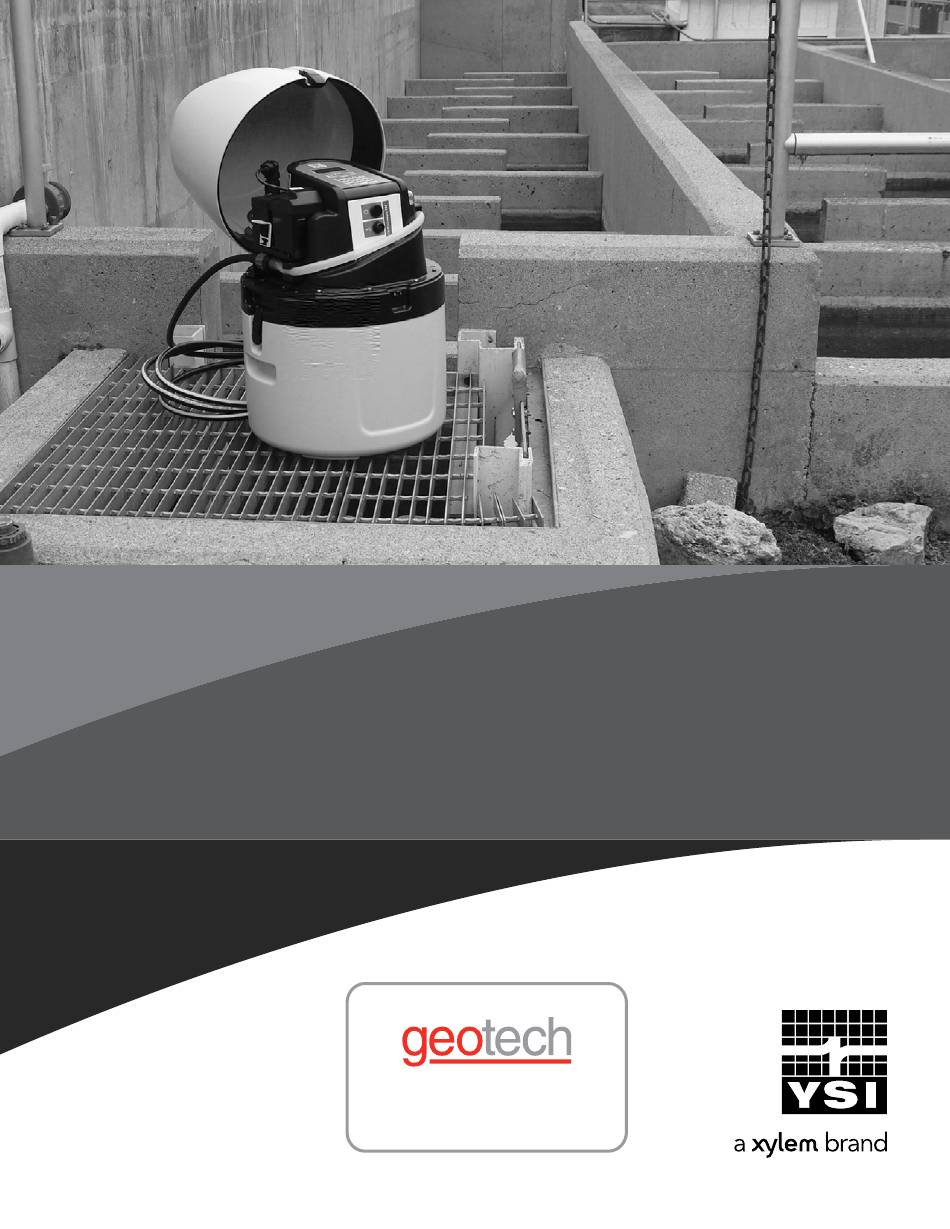

ProSample User Manual
PORTABLE AUTOMATIC SAMPLERS
Item# 630123REF
Revision A
For Sales & Service Contact
2650 E. 40th Ave. • Denver, CO 80205
Phone 303-320-4764 • Fax 303-322-7242
1-800-833-7958
www.geotechenv.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProSample Series and is the answer not in the manual?

Questions and answers

Related Manuals for YSI ProSample Series

Summary of Contents for YSI ProSample Series

  • Page 1 ProSample User Manual PORTABLE AUTOMATIC SAMPLERS For Sales & Service Contact 2650 E. 40th Ave. • Denver, CO 80205 Phone 303-320-4764 • Fax 303-322-7242 1-800-833-7958 Item# 630123REF www.geotechenv.com Revision A...
  • Page 2 This page left intentionally blank...

  • Page 3: Table Of Contents

    Table of Contents Safety Information Precautionary Symbols in the Manual Precautionary Symbols on the Instrument Intended Use and General Overview Keypad Overview LED Functionality Package Contents Unpacking Charging the Battery Initial Charge Battery Installation Subsequent Charges No Mains (AC) Power at Sampling Site Mains (AC) Power Available at Sampling Site Installing at a Sampling Site Suction Hose Connection, Positioning, and Length...
  • Page 4 Wiring and Connecting Analog, Digital I/O, and SDI-12 Devices Flow Signal Cable Wiring Calibrating the Analog Signal SDI-12 Cable Wiring SDI-12 with Flying Leads SDI-12 with EXO3 Connector Connection of the Flow Signal Cable and/or SDI-12 Cable Programming Sampling Scenario List and Descriptions Stand-Alone Sampling Analog Input Trigger Analog Input Volume Modulation...

  • Page 5: Safety Information

    Effort has been made to make the information in this manual complete, accurate, and current. The manufacturer shall not be held responsible for errors or omissions in this manual. Consult YSI.com for the most up-to-date version of this manual. Safety Information Please read this entire manual before unpacking, setting up or operating this equipment.

  • Page 6: Intended Use And General Overview

    YSI (YSI.com/contact-us) or an authorized YSI distributor. There are four samplers in the ProSample series. Content in this user manual applies to all ProSample models unless otherwise noted. ProSample models include: •...

  • Page 7: Keypad Overview

    Keypad Overview ProSample Keypad Select the desired menu. Enter Key Confirmation of entered values and selections. A confirmed selection is indicated with Move within the menu. Move to the next menu. Arrow Keys Entry/change of values. Selection within the menu. Scrolling within the data memory or bottle memory.

  • Page 8: Led Functionality

    60 for more details and item numbers, including longer suction hose lengths. The ProSample User Manual, installation file for YSIConnect, and the ProSample Ordering Guide can be found at YSI.com/ProSample. Intended Use and General Overview / Package Contents...

  • Page 9: Unpacking

    Carefully unpack the unit and accessories, and inspect for shipping damages. Compare received parts with materials listed in the Package Contents section. Notify YSI immediately of any damage or missing parts. Save all packing materials until satisfactory operation is confirmed. Removing the top tray (1) and the ProSample (2) from the packaging...

  • Page 10: Charging The Battery

    NOTE: Please include the battery if the ProSample is returned to YSI for service — see the Technical Support...

  • Page 11: Battery Installation

    Battery Installation The battery pack is not installed in the ProSample during shipment. NOTICE: It is recommended to disconnect the battery from the instrument when transporting the ProSample. To install the battery. 1. Open the ProSample cover. 2. Insert the battery pack into the battery tray. 3.

  • Page 12: Subsequent Charges

    Subsequent Charges NOTE: When charging a new battery, it is recommended to use the steps in the Initial Charge section on page 10. The battery must always be installed in the ProSample when the sampler is in use, as the battery is the only way to power the sampler.
  • Page 13 Using the Y-cable to keep the battery continuously connected to AC power Charging the Battery...

  • Page 14: Installing At A Sampling Site

    NOTICE: The connectors on the ProSample intermediate tube and suction hose are ¾ inch-14BSPP. If not using a YSI suction hose (5, 10, and 20 meter available), ensure the suction hose being used has a ¾ inch- 14BSPP connection. A ¾ inch-14BSPP female connection (item # 630127) is available if the suction hose being used does not have a ¾...
  • Page 15 The suction hose cannot be longer than 30 meters. In addition, it should be positioned so it is descending in elevation from the sampler to the sampling point. Locations marked with a red ‘X’ on the figure below are examples where this requirement is not satisfied.

  • Page 16: Instrument Setup And Calibration

    Instrument Setup and Calibration Installing the Peristaltic Pump Tube The peristaltic pump tube does not come pre-installed in the ProSample. There are two peristaltic tubes included with each ProSample — one can be found under the lid of the ProSample, while the other is in the top tray of the ProSample packaging.

  • Page 17: Turning The Prosample On

    Turning the ProSample On Press the ON/OFF button once to turn the ProSample on. Press and release the button again to turn the unit off. Turning on the ProSample Pump Calibration The peristaltic pump must be calibrated at each sampling site, as the length and gradient of the suction hose impact the calibration result.

  • Page 18: Calibration Check

    9. Do NOT remove the graduate cylinder from underneath the sampling tube until Enter Actual Value is displayed on the screen. Enter the amount of solution that was dispensed and press the Enter key. 10. Start Lower Volume should appear on the screen. Place a graduated cylinder with a volume of at least 250 mL under the composite sampling tube.

  • Page 19: Installing Sample Bottle(S)

    Installing Sample Bottle(s) There are several bottle configurations available for the ProSample P and ProSample P-12. Plastic (PE) and glass bottle sets are available. Please see the Replacement Parts and Accessories section on page 60 for a complete listing of available bottle sets.

  • Page 20: Reattach The Top Of The Housing

    Installation of plastic (PE) bottles Installation of glass bottles Bottle #1 position and filling direction on the ProSample P and ProSample P-12 housing Reattach the Top of the Housing After installing the sample bottle(s), reattach the top part of the housing by lining it up with the bottom part of the housing.

  • Page 21: Installing A Distributor Arm

    Installing a Distributor Arm Multiple bottles can be placed in the ProSample P and ProSample P-12, allowing for the collection of discrete sample (see Installing Sample Bottle(s) on page 19). If multiple bottles are to be used, a distributor arm must be installed. There are two distributor arms available for the ProSample P and ProSample P-12.

  • Page 22: Configure Key Instrument Settings

    Configure Key Instrument Settings There are seven key instrument settings that are used for each program created. From the Main Menu, navigate to the following screens to modify these key settings: 1. Setup Date/Time 2. Setup System Settings Language 3. Setup System Settings Distributor (ProSample P and ProSample P-12 Only)
  • Page 23 5. Setup System Settings Pre purge In order to clear the line of moisture and remove debris that may have collected around the suction hose opening, the peristaltic pump will push air through the suction hose before a new sample is collected. Pre purge identifies the amount of time air will be pushed through the suction hose.

  • Page 24: Wiring And Connecting Analog, Digital I/O, And Sdi-12 Devices

    Wiring and Connecting Analog, Digital I/O, and SDI-12 Devices The ProSample P and ProSample PM can be configured to sample based on measurements/signals from analog and digital I/O devices, while the ProSample P-12 and ProSample PM-12 can additionally be configured to sample based on measurements from SDI-12 devices (e.g.

  • Page 25: Calibrating The Analog Signal

    Calibrating the Analog Signal The analog signal coming to the ProSample from an analog device must be calibrated before configuring any analog program. To calibrate the analog signal: 1. From the Main Menu, select Setup System Settings Analog Signal Calibration 2.

  • Page 26: Sdi-12 Cable Wiring

    One end of item # 630146 has flying leads for connecting to an SDI-12 device or a Signal Output Adapter for the SDI- 12 device (e.g. YSI EXO1 and YSI EXO2). The other end of this cable is connected to the SDI-12 input on the ProSample P-12 or ProSample PM-12.

  • Page 27: Programming

    2. Analog Input Trigger: The ProSample will begin collecting samples when a 4-20 mA device (e.g. YSI Amazon Bubbler or YSI IQSN sensor) meets user-defined sampling criteria. All ProSample models can be used for this sampling scenario. See page 32.

  • Page 28: Stand-Alone Sampling

    Stand-Alone Sampling The ProSample will collect samples at a user-defined interval. All ProSample models can be used for this sampling scenario. A flow signal cable and/or SDI-12 cable is not required to run this program. NOTE: The settings modified in the section Configure Key Instrument Settings on page 22 will be applied to each and every program, so it is important these settings are carefully set before starting any program.
  • Page 29 5. The Bottle Fill Time is displayed. If using a composite bottle, Bottle Fill Time determines how long the program will run. As an example, if Sampling Interval is set to 15 minutes, Sample Volume is set to 100 mL, and Bottle Fill Time is set to 2 hours, then the ProSample will collect 100 mL of sample every 15 minutes for 2 hours, resulting in a total of 800 mL of sample collected.
  • Page 30 7. First Bottle is displayed if the ProSample has more than one bottle installed. Enter the bottle number in which the first sample should be placed. Press the Enter key. 8. Last Bottle is displayed. Enter the bottle number in which the last sample should be placed.
  • Page 31 12. Choose when the program should start. Press the Enter key. NOTE: Ensure the date and time of the unit is correct. See Configure Key Instrument Settings on page 22. 13. Choose when the program should end. Press the Enter key. Programming: Stand-Alone Sampling...

  • Page 32: Analog Input Trigger

    Analog Input Trigger In this type of program, sampling will only occur when the trigger criteria are met. If the trigger criteria are no longer met while the program is active, sampling will pause. Sampling will continue if and when the trigger criteria are met again and will continue until the program is complete.
  • Page 33 5. Input a 0/4 mA value. In this example, 4 will be entered. After entering a value, press the Enter key. 6. Input a 20 mA value. In this example, 20 will be entered. After entering a value, press the Enter key. 7.
  • Page 34 9. The ProSample will request a Deadband be entered. If a High Setpoint is entered, Deadband is the value which the mA signal must drop below before sampling no longer occurs. As an example, if 10 mA is the High Setpoint and a Deadband of 0.5 is entered, the mA signal must drop below 9.5 mA before sampling no longer occurs.
  • Page 35 14. Enter a Sampling Interval. This determines how often a sample will be collected and is determined by the user based on the application and sampling requirements. Press the Enter key to begin modifying the program. 15. The Sample Volume is displayed. This is the amount of sample that will be collected at each Sampling Interval.
  • Page 36 17. The Info screen is displayed. If there is only one bottle installed (composite sampling): • Select Settings Complete and the ProSample will return to the Programs menu. Skip to step #21. If there is a distributor arm and multiple bottles installed (discrete sampling): •...
  • Page 37 22. Use the arrows to select the program to run. Press the Enter key. 23. Choose when the program should start. Press the Enter key. NOTE: Ensure the date and time of the unit is correct. See Configure Key Instrument Settings on page 22.

  • Page 38: Analog Input Volume Modulation

    Analog Input Volume Modulation In this type of program, the ProSample will begin collecting samples when a 4-20 mA device (e.g. YSI Amazon Bubbler or YSI IQSN sensor) meet user-defined sampling criteria. The amount of sample collected depends upon the 4-20 mA signal.
  • Page 39 5. Enter a Var Sample Interval. This determines how often a sample will be collected and is determined by the user based on the application and sampling requirements. 6. The Var Sample Volume 20 mA is displayed. This is the amount of solution that should be collected when the mA signal is 20 mA.
  • Page 40 9. The Var Max. Sample Volume is displayed. Enter a value that is larger than the Var Sample Volume 20 mA (see step #6) but smaller than or equal to the maximum sample volume of the containers being used (e.g. 1000 mL when using 1000 mL bottles).
  • Page 41 13. Last Bottle is displayed. Enter the bottle number in which the last sample should be placed. Press the Enter key. 14. The More Settings menu is displayed. Highlight Programming OK and press the Enter key. The Programs menu is displayed. 15.

  • Page 42: Digital Pulse Input Trigger

    This sampling scenario can only be completed with the ProSample P-12. The SDI-12 cable with flying leads (item #630146) must be used. Please refer to the SDI-12 Cable with Flying Leads section on page 26 or contact YSI assistance when setting up this sampling scenario. NOTE: The settings modified in the section Configure Key Instrument Settings on page 22 will be applied to each and every program, so it is important these settings are carefully set before starting any program.
  • Page 43 7. Highlight Time and press the Enter key. 8. Enter a Sampling Interval. This determines how often a sample will be collected and is determined by the user based on the application and sampling requirements. Press the Enter key to begin modifying the program.
  • Page 44 As another example of discrete sampling, if Sampling Interval is set to 15 minutes, Sample Volume is set to 100 mL, and Bottle Fill Time is set to 45 minutes (i.e. three times longer than Sampling Time), then each bottle is filled three times and each bottle will contain 300 mL of sample.

  • Page 45: Data Pulse Input Event

    Digital Pulse Input Event In this program, sampling will occur each time the ProSample receives a pulse from a digital device (e.g. a data logger). Please refer to the user manual of your device to ensure it is programmed as desired. All ProSample models can be used for this sampling scenario.
  • Page 46 4. The Sample Volume is displayed. This is the amount of sample that will be collected at each Sampling Interval. The Sample Volume is determined by the user based on the application and sampling requirements. Press the Enter key to begin modifying the program.
  • Page 47 9. Last Bottle is displayed. Enter the bottle number in which the last sample should be placed. Press the Enter key. 10. The More Settings menu is displayed. Highlight Programming OK and press the Enter key. The Programs menu is displayed. 11.

  • Page 48: Sdi-12 Parameter-Driven Sampling

    SDI-12 Parameter-Driven Sampling In this sampling scenario, the ProSample will collect samples based upon measurements from an SDI-12 device (e.g. YSI EXO3 sonde). This sampling scenario can only be completed with the ProSample P-12 and ProSample PM-12. Please refer to the SDI-12 Cable Wiring section on page 26 when connecting the SDI-12 device to the ProSample.
  • Page 49 3. Highlight an SDI-12 CHANNEL to configure and press the Enter key. NOTE: Select a different input channel for each SDI-12 parameter that will be used to trigger sampling. The input channel selected for each parameter should match the channel configured for that parameter on the SDI-12 device.
  • Page 50 8. Trigger Channel is displayed. To collect samples using the Event method, highlight Event, then press the Enter key. To collect samples using the Continuous method, highlight Start Prg. 1, then press the Enter key. NOTE: If more than one SDI-12 parameter is set to trigger sampling, only the continuous method can be used.
  • Page 51 13. The Bottle Fill Time is displayed. If using a composite bottle, Bottle Fill Time determines how long the program will run. As an example, if Sampling Interval is set to 15 minutes, Sample Volume is set to 100 mL, and Bottle Fill Time is set to 2 hours, then the ProSample will collect 100 mL of sample every 15 minutes for 2 hours, resulting in a total of 800 mL of sample collected.
  • Page 52 15. First Bottle is displayed if the ProSample has more than one bottle installed. Enter the bottle number in which the first sample should be placed. Press the Enter key. 16. Last Bottle is displayed. Enter the bottle number in which the last sample should be placed.
  • Page 53 20. Choose when the program should start. Press the Enter key. NOTE: Ensure the date and time of the unit is correct. See Configure Key Instrument Settings on page 22. 21. Choose when the program should end. Press the Enter key. 22.

  • Page 54: Maintenance And Cleaning

    Maintenance and Cleaning Draining the Bottom Sampler Housing On the ProSample P and ProSample P-12, there is a drain plug in the center of the bottom sampler housing. This drain can be removed when cleaning the sampler housing, removing any spilled solution, or when draining any ice used to keep collected samples cold.

  • Page 55: Peristaltic Pump Tube Replacement

    YSI does not have a recommended replacement interval for the peristaltic pump tube, as the lifetime of the tube varies based on application. As an example, if the sampler is used at the outlet of a plant, the sampling environment is likely relatively clean with little/no solids.

  • Page 56: Changing The Fuse(S)

    Changing the Fuse(s) If the ProSample is not operating as expected, it may be necessary to change one of the two fuses installed in the ProSample – 8A and 2A. To remove the fuse, rotate as outlined in the picture below and pull out. Insert the replacement fuse and tighten.

  • Page 57: Factory Reset

    Factory Reset A factory reset can reset all settings to the factory default. Please note that all setting and data will be deleted when completing a factory reset. To complete a factory reset: 1. Turn OFF the ProSample. 2. Hold the power key and the Back key at the same time. 3.

  • Page 58: Ysiconnect Pc Software

    YSIConnect PC Software YSIConnect is the PC software for the ProSample series of automatic samplers. This software can be used to: • Control the sampler • Download data • Update instrument firmware The sampler is connected to a PC with the USB cable included with each ProSample.

  • Page 59: Replacement Parts And Accessories

    +1 937 767 7241 (Globally) Monday through Friday, 8:00 AM to 5:00 ET Fax: +1 937 767 9353 (orders) Email: info@ysi.com Mail: YSI Incorporated 1725 Brannum Lane Yellow Springs, OH 45387 USA Internet: ysi.com When placing an order please have the following available: 1.
  • Page 60 Replacement Parts and Accessories ProSample Portable Automatic Samplers YSI Item Description Notes Number ProSample P portable sampler with plastic housing, peristaltic pump, Battery charger not microprocessor control, battery operated 12 V/7.5 Ah. Includes battery, included, optional sample 630141 two peristaltic pump tubes, USB cable, Getting Started Guide, and a 5 bottle sets with distributor meter suction hose with screw connection and sinker weight.
  • Page 61 YSI EXO3 sonde 10 meter SDI-12 cable with 6-pin female wet-mate connector for ProSample P-12 and 630145-10 ProSample PM-12 direct connection to YSI EXO3 sonde 15 meter SDI-12 cable with 6-pin female wet-mate connector for ProSample P-12 and 630145-15 ProSample PM-12...
  • Page 62 SDI-12 connector to ProSample, no cable Same as 630146 but 630125 and ProSample included without the cable PM-12 All ProSample Pre-installed in all YSI 0050598 Stainless steel sinker weight, length 180 mm models suction hoses All ProSample Included with all 0069793 USB cable - USB2.0 to USB Mini...
  • Page 63 Replacement Parts and Accessories Replacement Parts YSI Item Description Used With Notes Number Battery pack, 7.5 Ah with connection cable and All ProSample Included with all 0901055 fuse holder models ProSample models Replace the desiccant cartridge installed inside All ProSample...
  • Page 64 YSI. There are two tube connectors located on All ProSample the outside of the pump 0050695-VA Tube connector V2A (stainless steel);...
  • Page 65 Replacement Parts and Accessories Replacement Parts YSI Item Description Number 0060584 Replacement bottle, 1 L, PE 630150 Replacement cap for 1 L bottle 0060636 Replacement bottle, 2 L, PE 0060634 Replacement bottle, 4 L, PE 0030052 Replacement bottle, 350 mL, Glass...

  • Page 66: Warranty And Liability

    When returning the ProSample for service, include the YSI Product Return Form with cleaning certification. The form must be completely filled out for the YSI Service Center to accept the instrument for service. The form may be downloaded from YSI.com.

  • Page 67: Appendix A: Prosample Menu Tree

    Appendix A: ProSample Menu Tree PROGRAMS Info Display of program details Status / Stop Pause Interruption of the running program (max. 120 min) Stop Stop the current program or all programs Immediately Start program immediately Start Date / Time Start program with date / time (dd:mm:yyyy hh:mm) Weekday / Time Start program with weekday / time (day;...
  • Page 68 Appendix A: ProSample Menu Tree DIAGNOSTICS / TEST Pump Component Test Distributor Perform a functional check of components Digital Outputs Display of (DI - digital input): Digital Inputs Flow digital: 0 Event: 0 Display of: • Analog 1 • Water Sensor 1 •...
  • Page 69 Appendix A: ProSample Menu Tree Option to rinse intake line with source liquid prior to each sample, Rinse Before Sampling up to 3 rinses. Default is no rinses. Calibration Vol Volume calibration for Peristaltic Pump Set of the Log entries. Log interval for Temp. board and PT1000 can Log Entries be adjusted 1-60 min •...
  • Page 70 Appendix A: ProSample Menu Tree Change Password In general the password can be changed Change Settings A password for settings can be entered Password Change Programs A password for changing programs can be entered Stop Programs A password for stopping programs can be entered Setting of base parameters (only to be done by a service technician) Service (Password protected)
